PINPOINT TEST G: THE REAR WINDOW WIPERS ARE INOPERATIVE

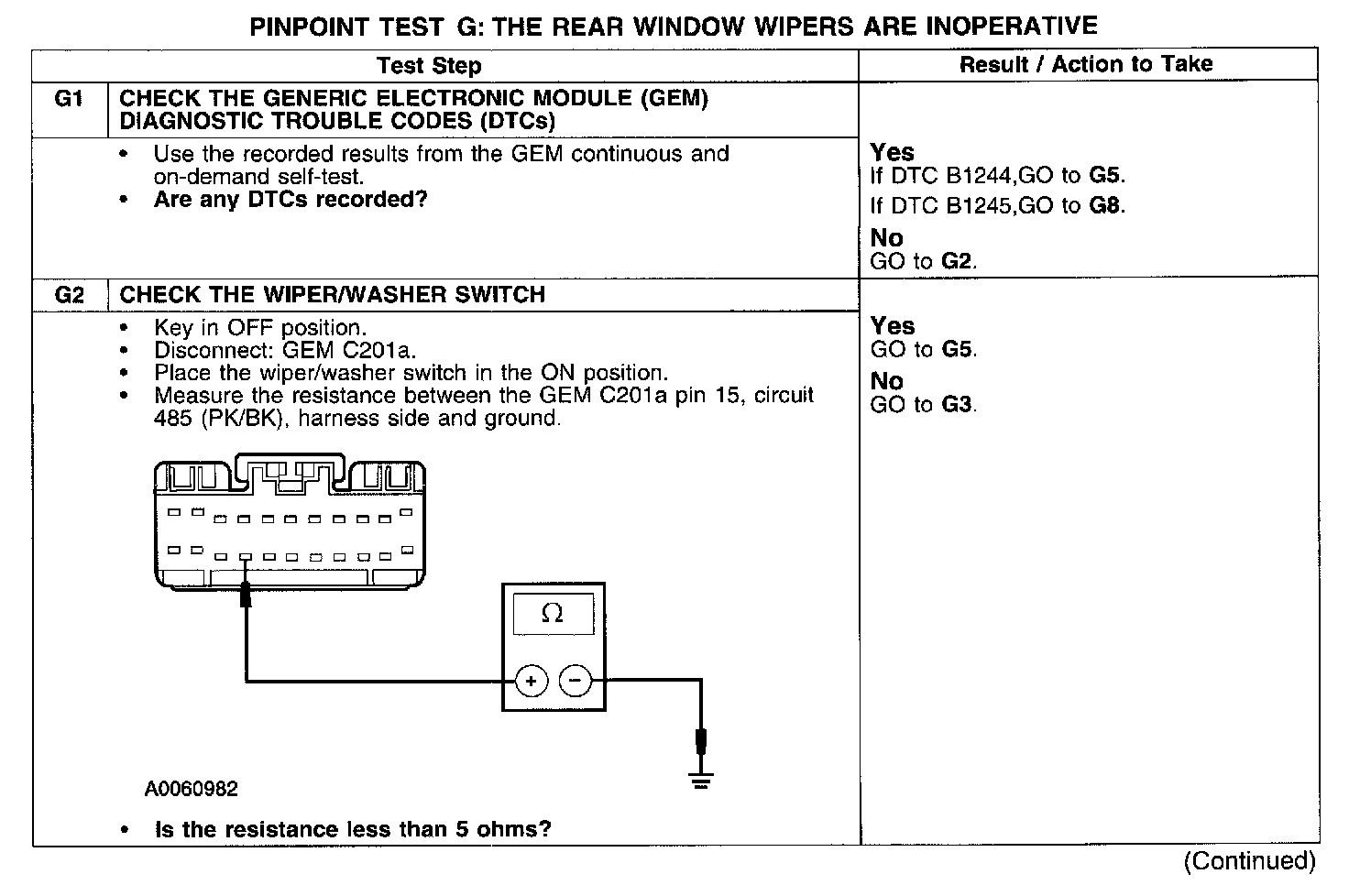

Test G1-G2:

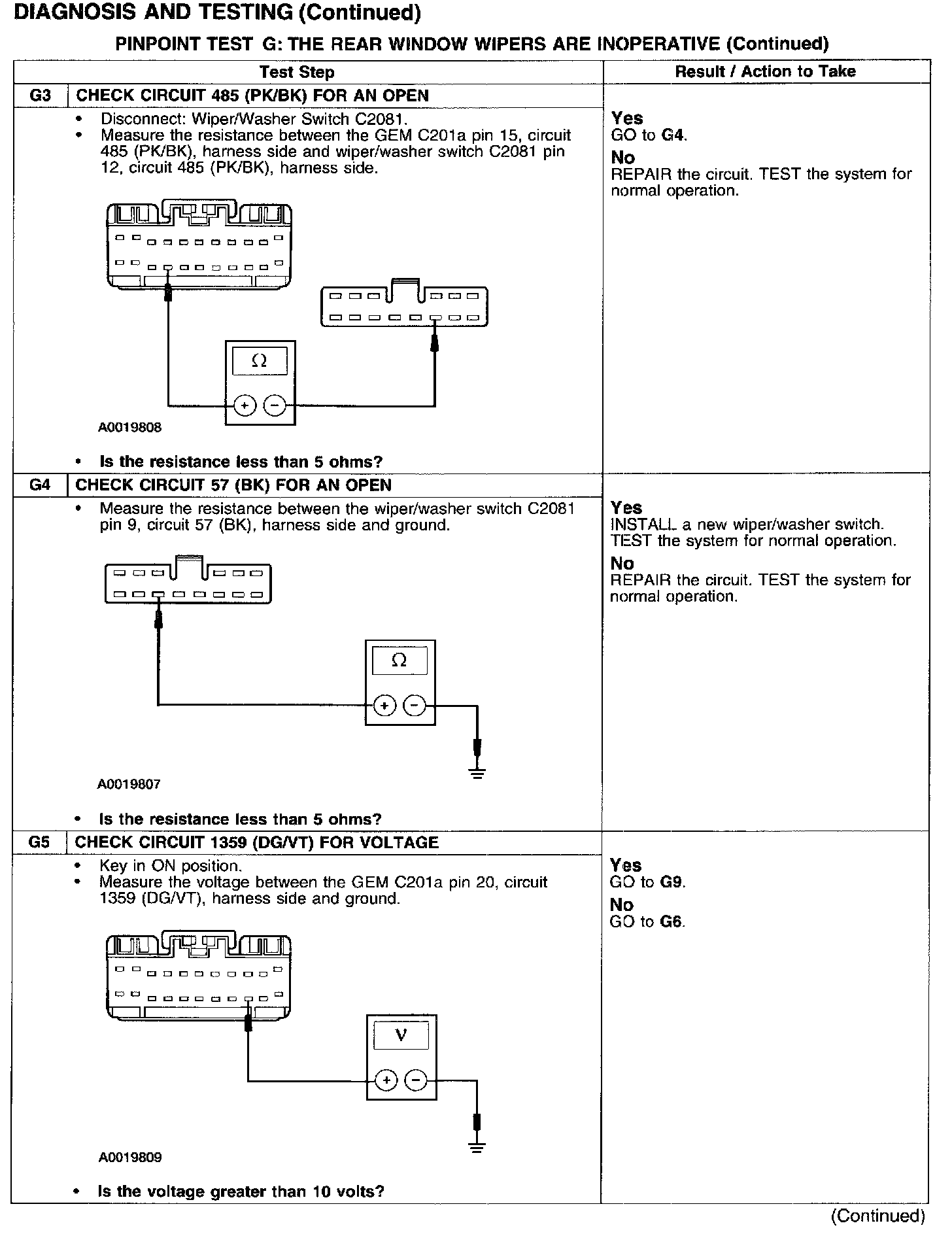

Test G3-G5:

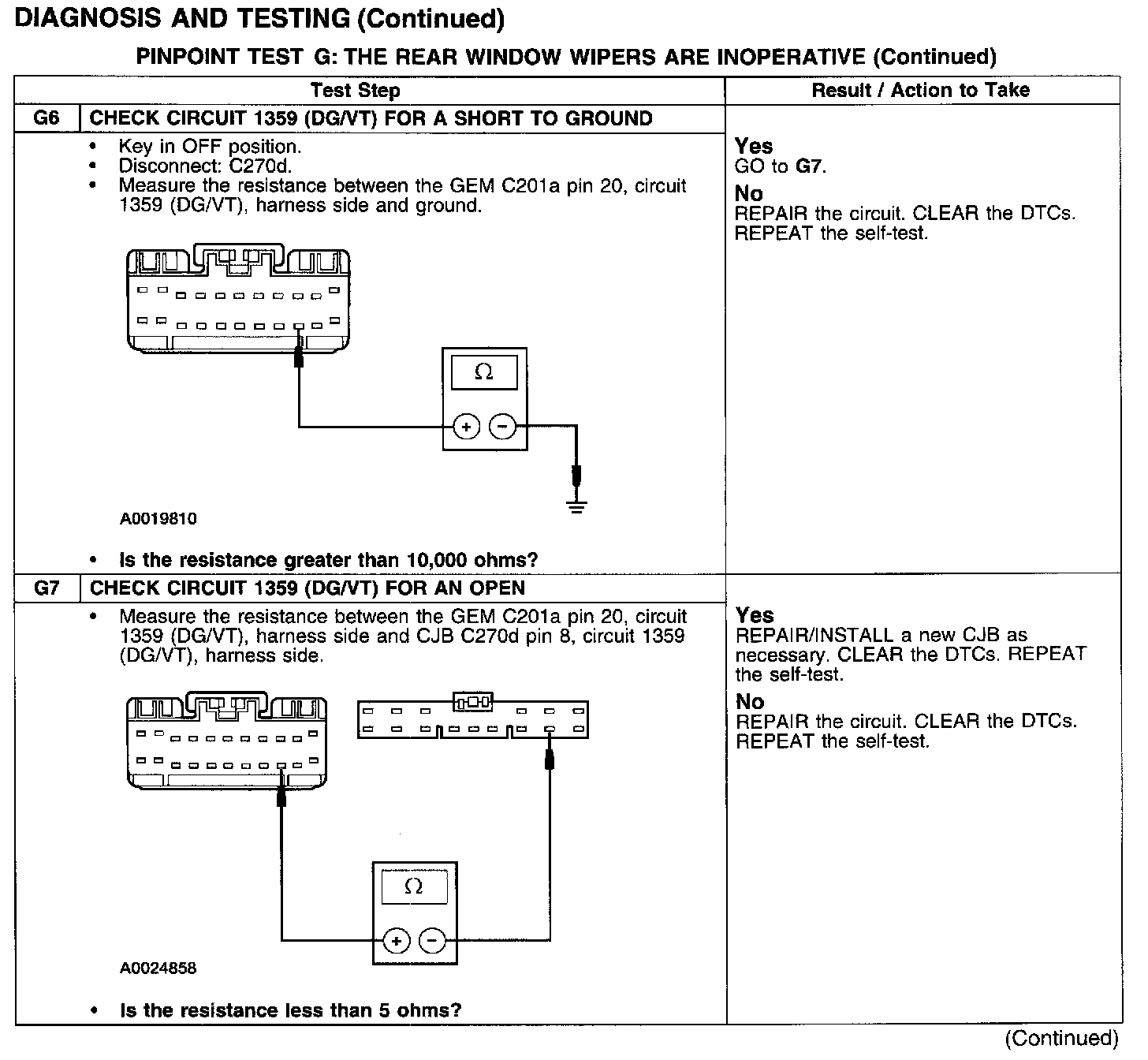

Test G6-G7:

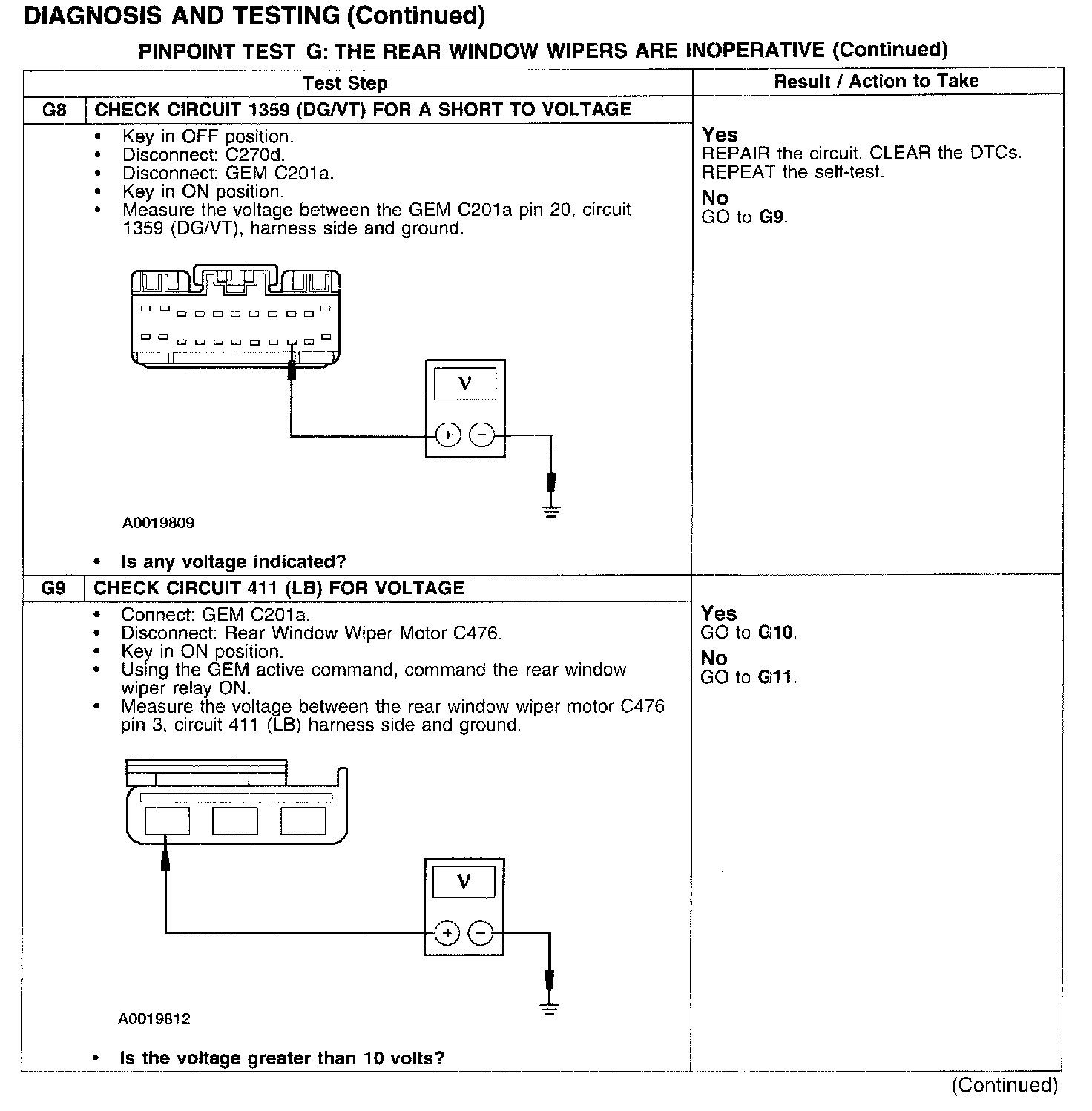

Test G8-G9:

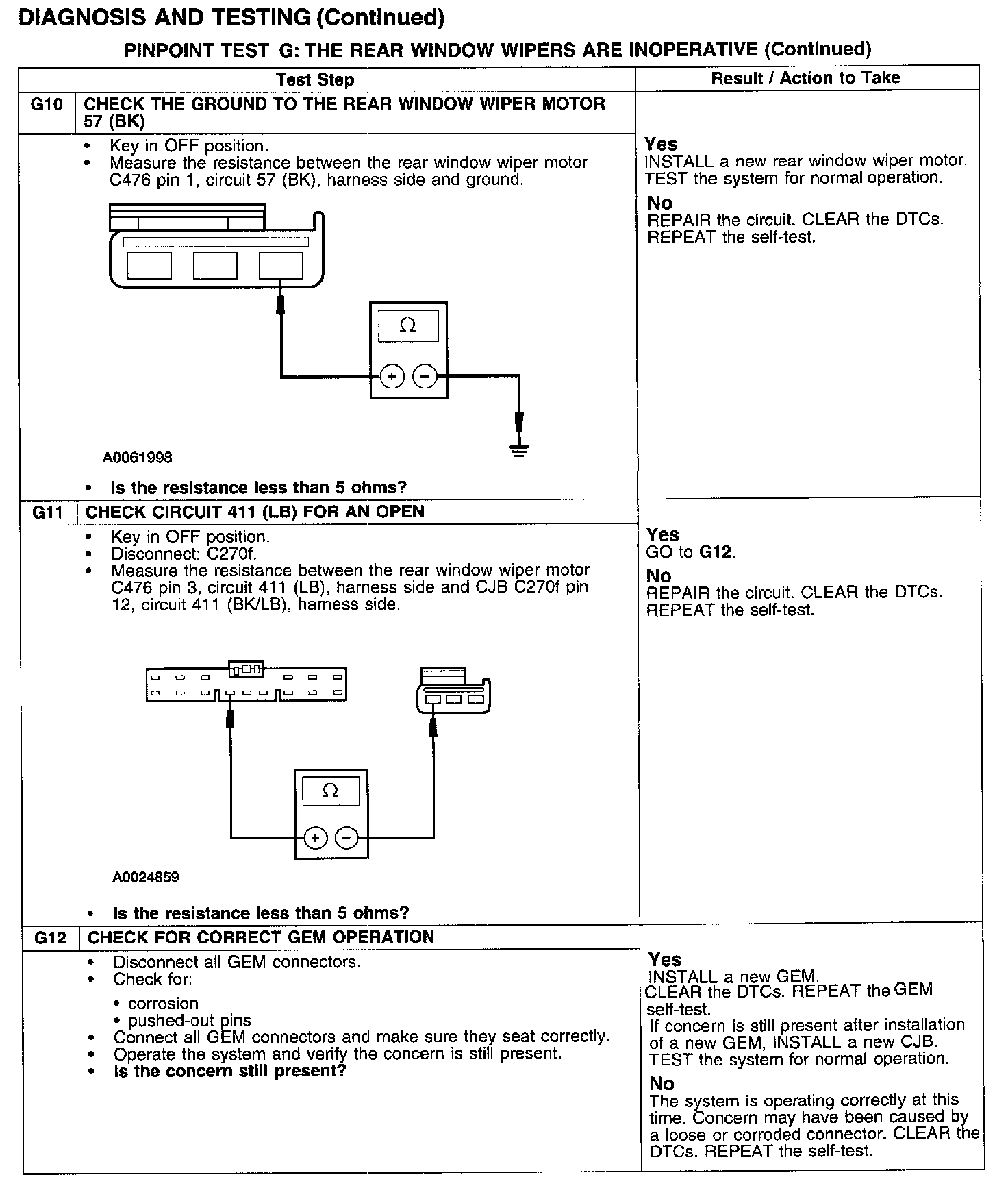

Test G10-G12:
