Rear Door Window Regulator: Service and Repair
REAR DOOR WINDOW REGULATORREMOVAL
All vehicles
1. Remove the rear door trim panel.

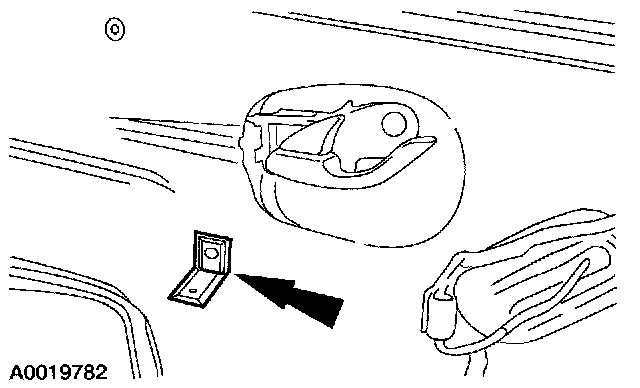

2. Remove the screw and the rear door trim panel bracket.
3. Position the water shield aside.
Vehicles with power windows
4. Connect the window control switch electrical connector.
All vehicles
5. Lower the rear door window glass to gain access to the screws.
Vehicles with power windows
6. Disconnect the window control switch electrical connector.
All vehicles

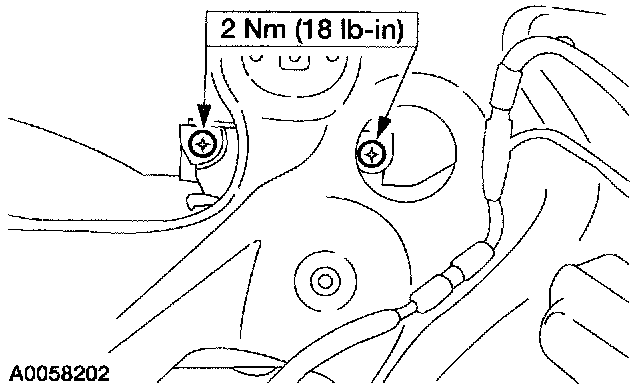

7. Remove the rear door window glass screws.
8. Support the rear door window glass in the full up position.
Vehicles with power windows

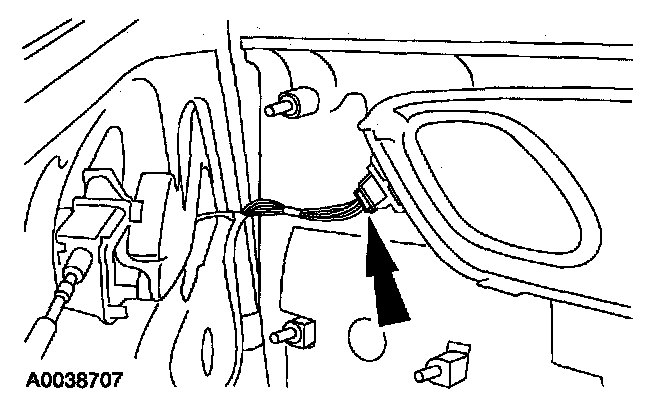

9. Disconnect the rear door power window regulator electrical connector.

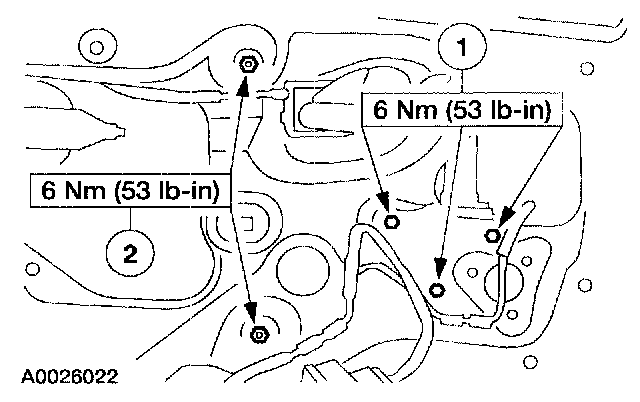

10. Remove the rear door power window regulator assembly.
1 Remove the bolts.
2 Remove the nuts.
Vehicles with manual windows

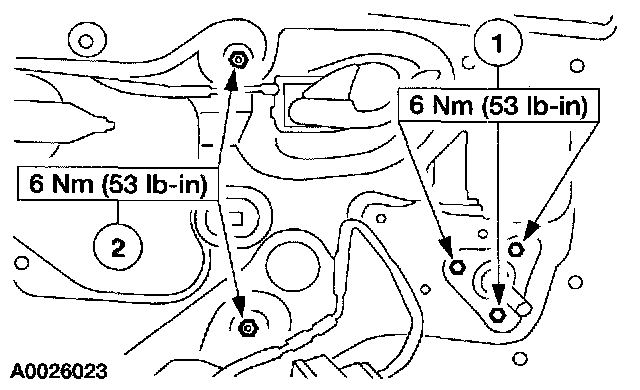

11. Remove the rear door window regulator assembly.
1 Remove the bolts.
2 Remove the nuts.
INSTALLATION
All Vehicles
1. To install, reverse the removal procedure.
- Cycle the door glass to make sure of correct window glass engagement.
