Front Door Window Regulator: Service and Repair
FRONT DOOR WINDOW REGULATORREMOVAL
All vehicles
1. Remove the front door trim panel.

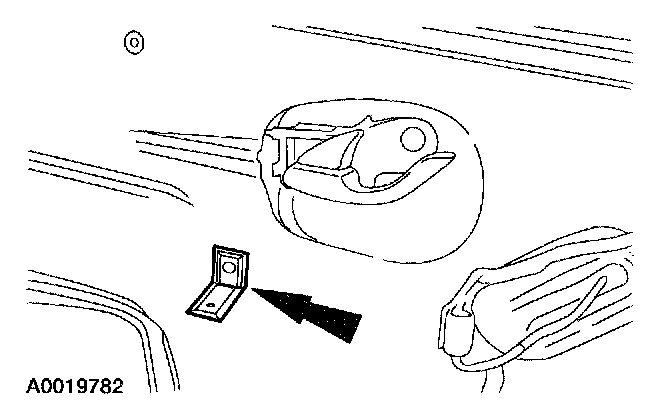

2. Remove the screw and the front door trim panel bracket.
3. Position the water shield aside.
Vehicles with power windows
4. Connect the window control switch electrical connector.
5. Connect the battery.
All vehicles
6. Lower the front door window glass to gain access to the screws.
Vehicles with power windows
7. Disconnect the battery.

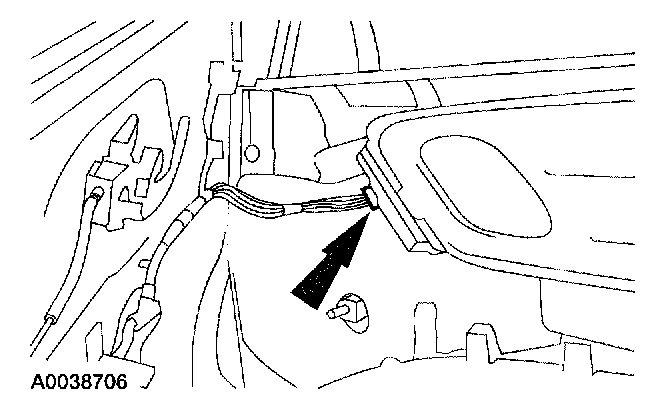

8. Disconnect the window control switch electrical connector.
9. Remove the front door window glass screws.
10. Support the front door window glass in the full up position.

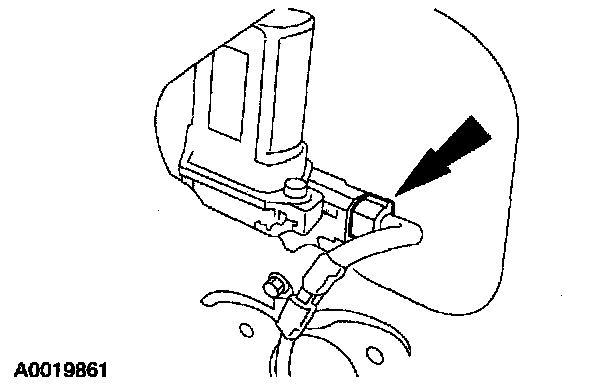

11. Disconnect the front door power window regulator motor electrical connector.

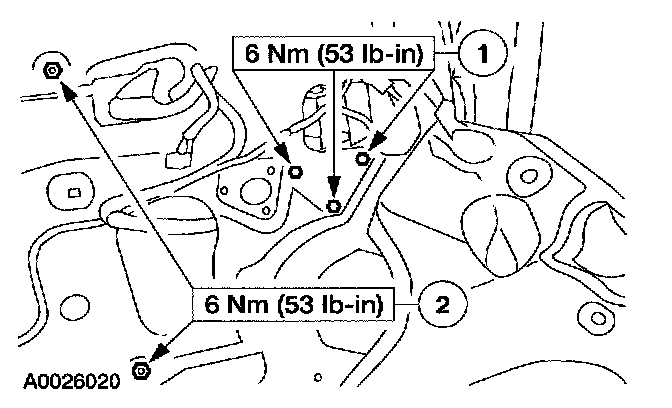

12. Remove the front door power window regulator assembly.
1 Remove the bolts.
2 Remove the nuts.
Vehicles with manual windows

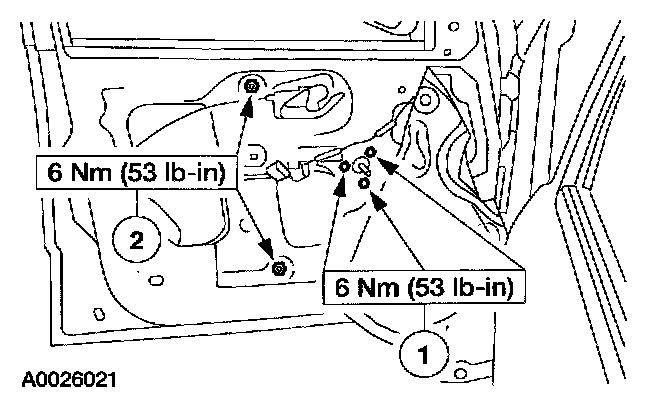

13. Remove the front door window regulator assembly.
1 Remove the bolts
2 Remove the nuts.
INSTALLATION
All vehicles
1. To install, reverse the removal procedure.
- Cycle the door window glass to make sure of correct door window glass engagement.
