Rear Door Glass Top Run

REAR DOOR GLASS TOP RUN

REMOVAL
1. Remove the rear door window regulator.







2. Position the rear door window glass to the full down position.

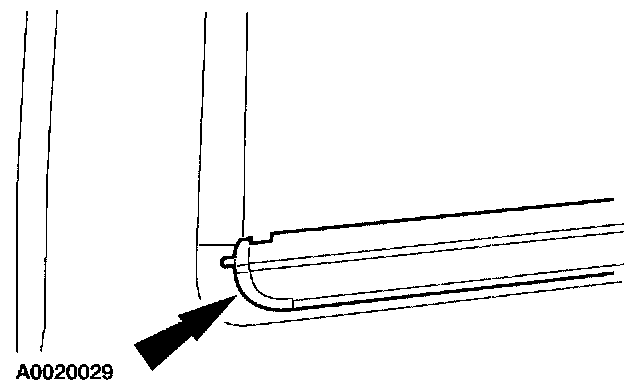

3. Remove the screws and the rear door exterior sail panel.

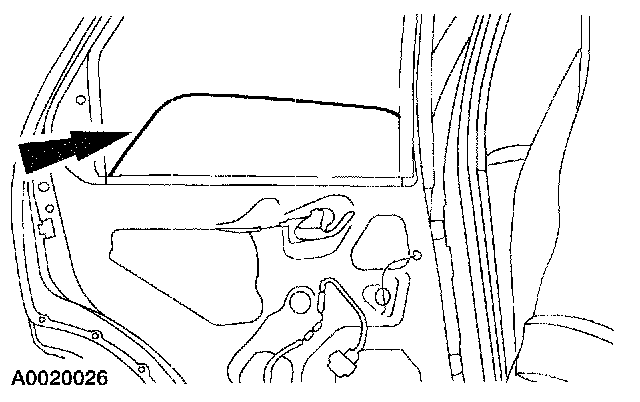

4. Remove the rear door interior glass weatherstrip.







5. Remove the rear door exterior belt line moulding.

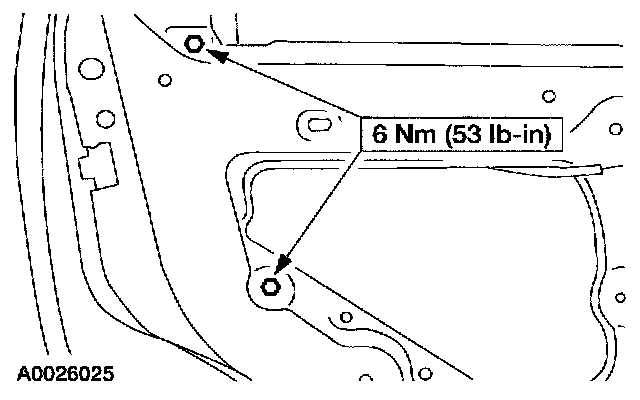

6. Remove the rear door glass top run bolts.







7. Position the rear door window glass down and forward.







8. Remove the rear door glass top run.

INSTALLATION
1. To install, reverse the removal procedure.
