PINPOINT TEST F: THE DEFROST SYSTEM IS INOPERATIVE

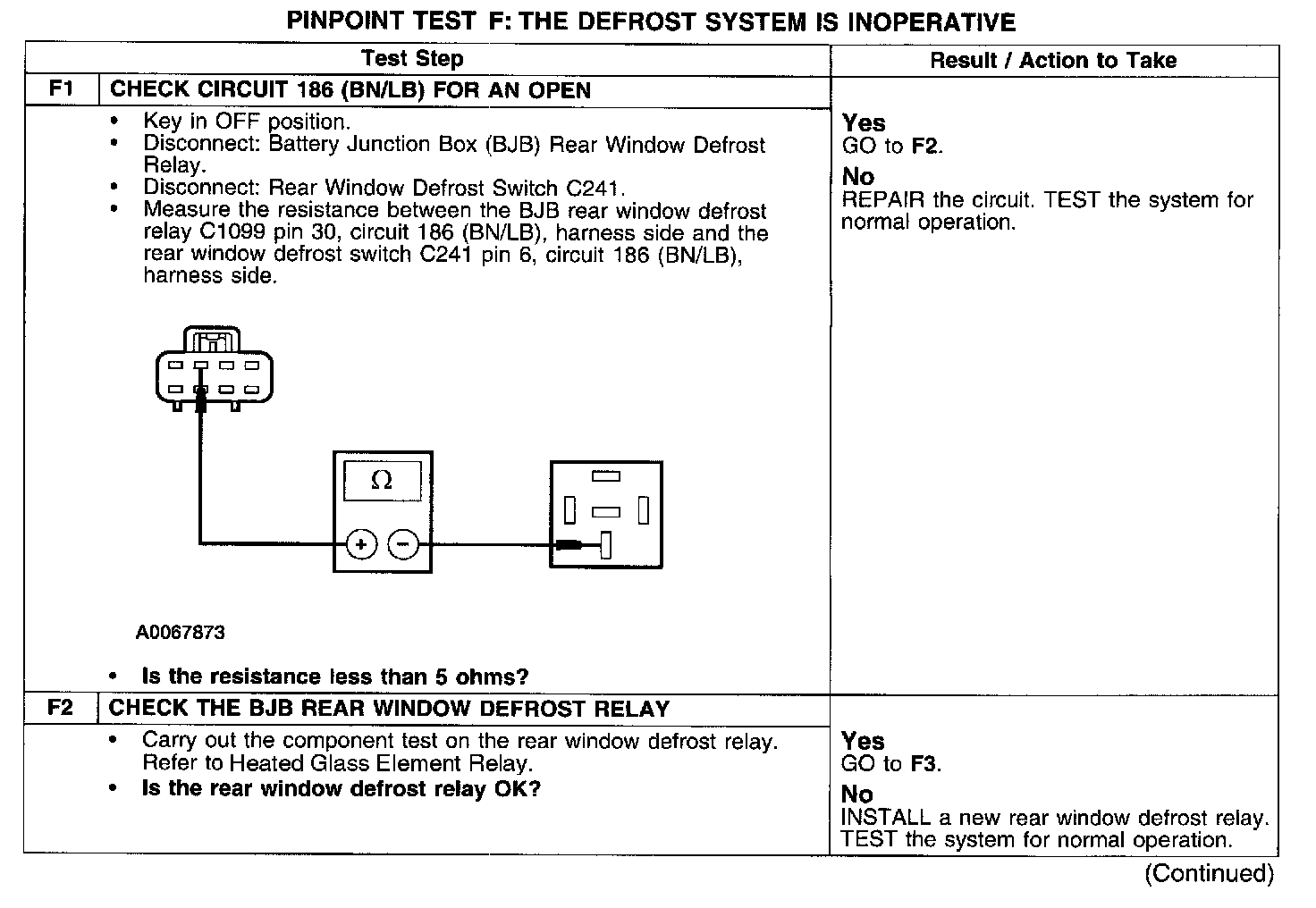

Test F1-F2:

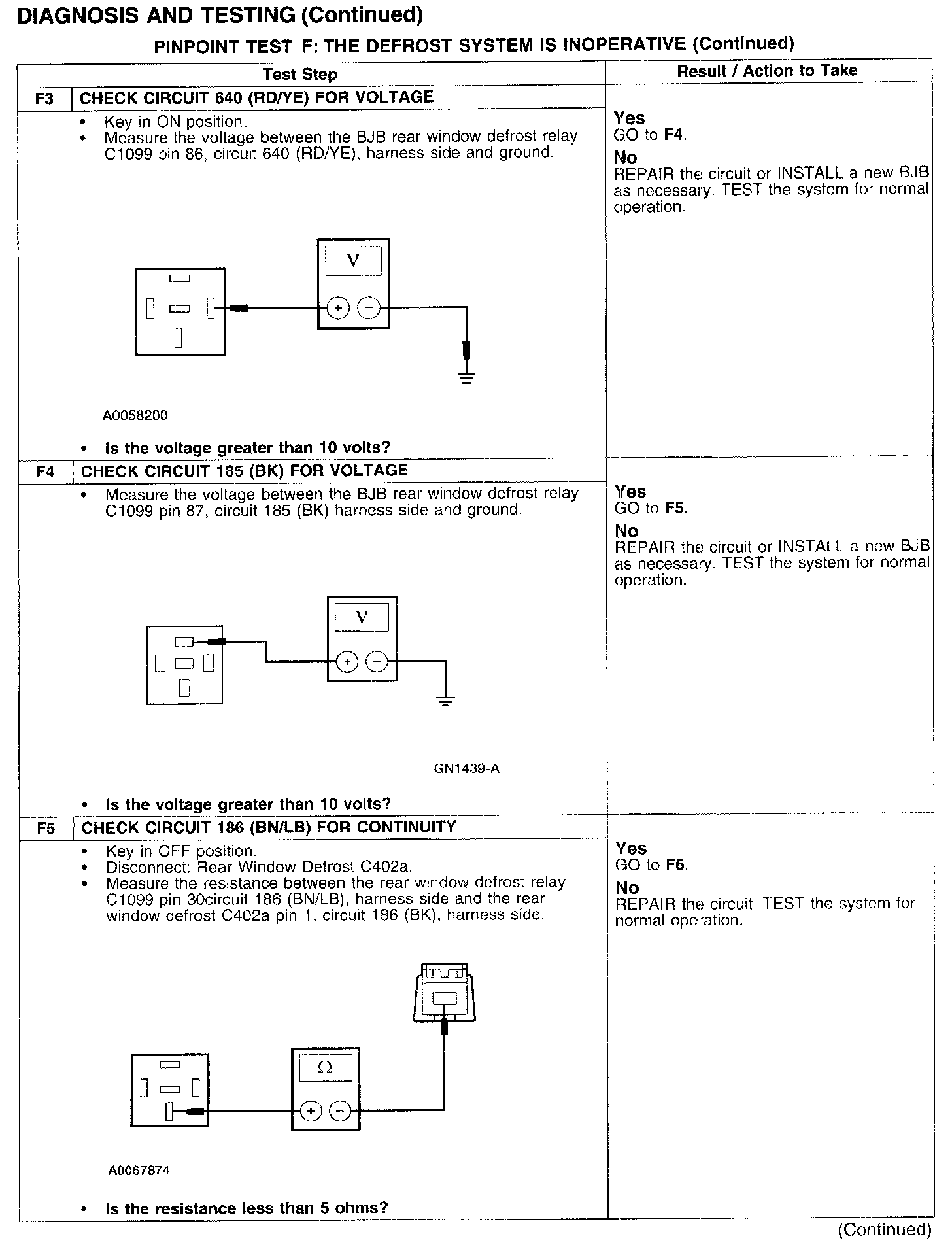

Test F3-F5:

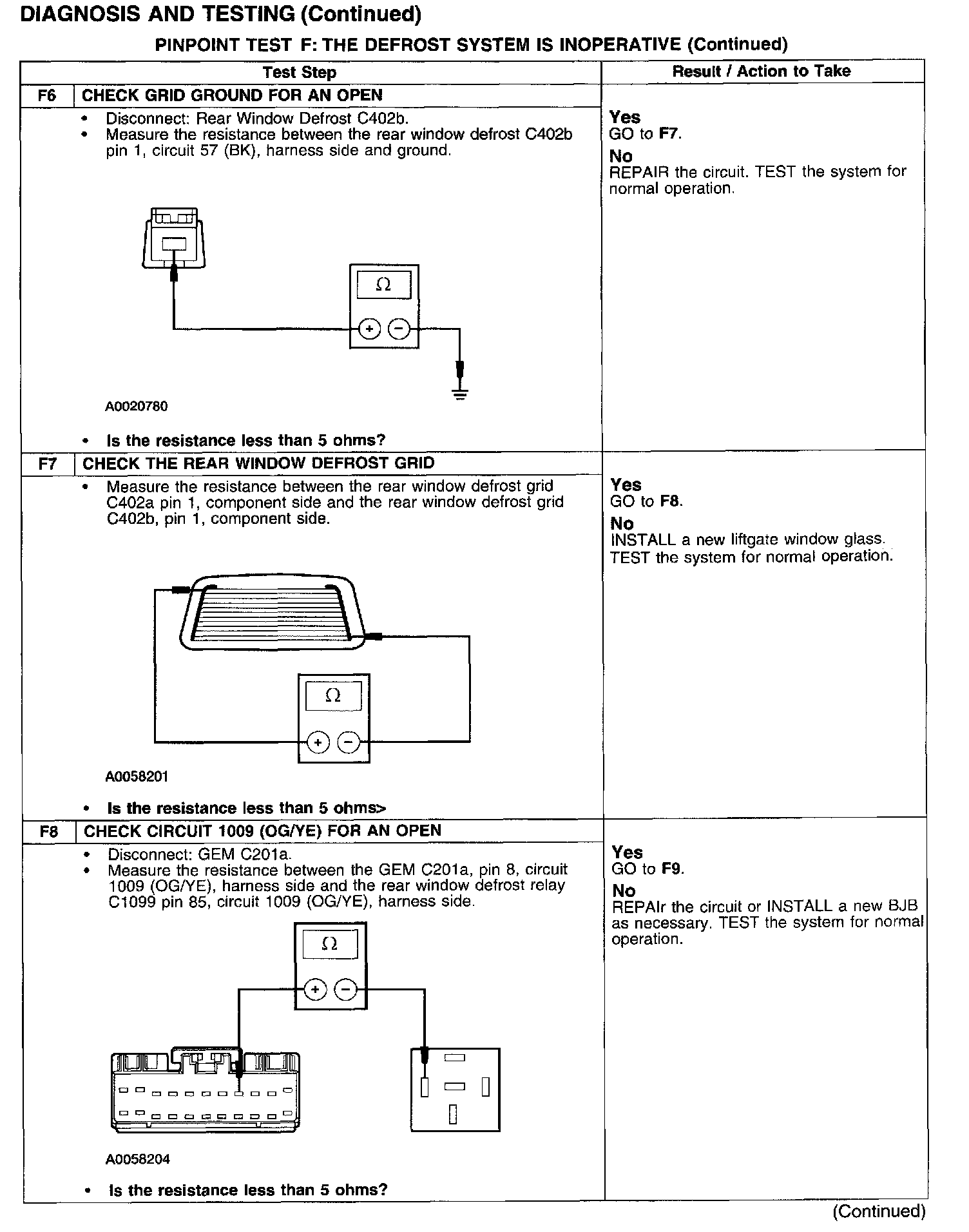

Test F6-F8:

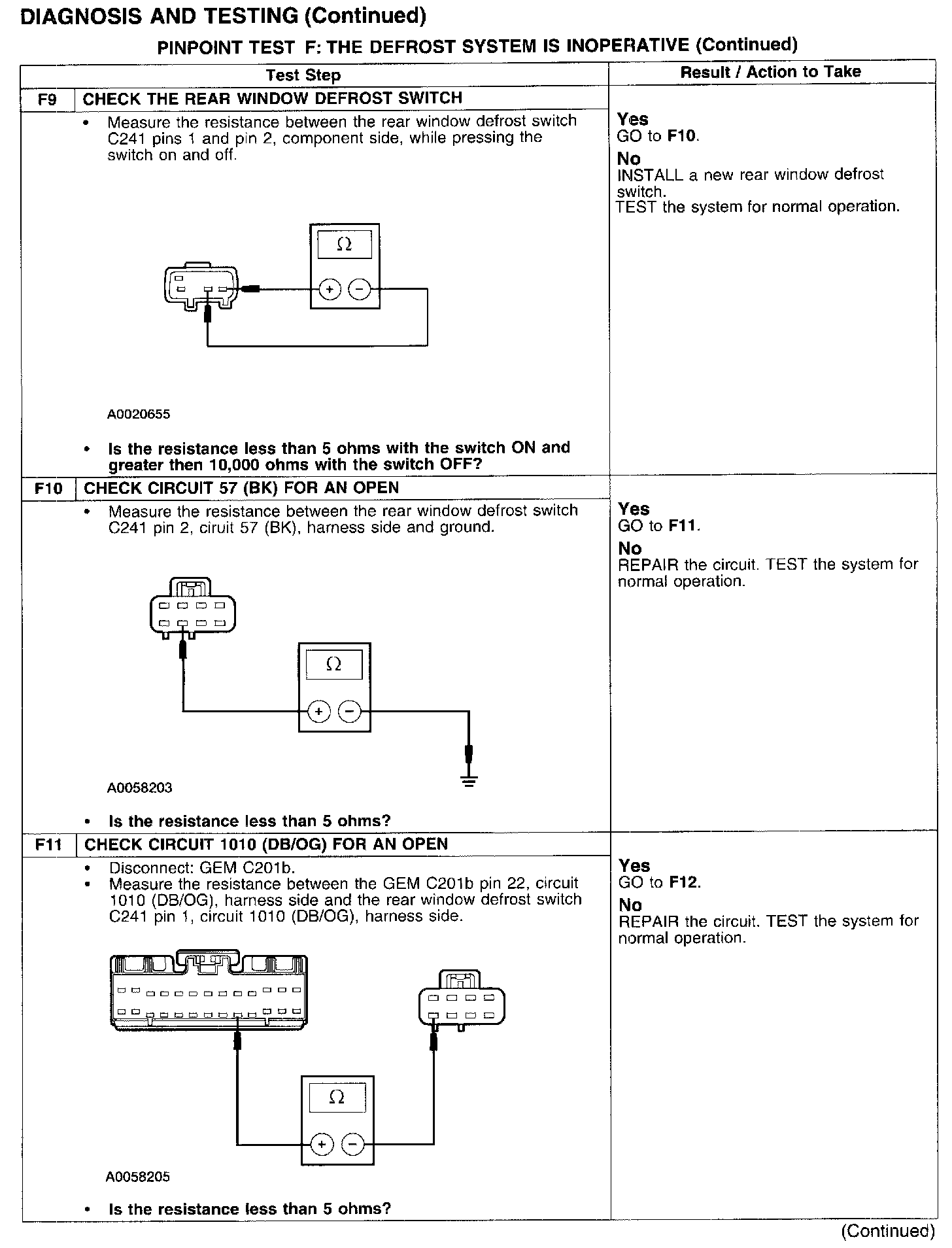

Test F9-F11:
Test F12:
