Test E
Test E
PINPOINT TEST E: A SINGLE POWER WINDOW IS INOPERATIVE - LEFT REAR

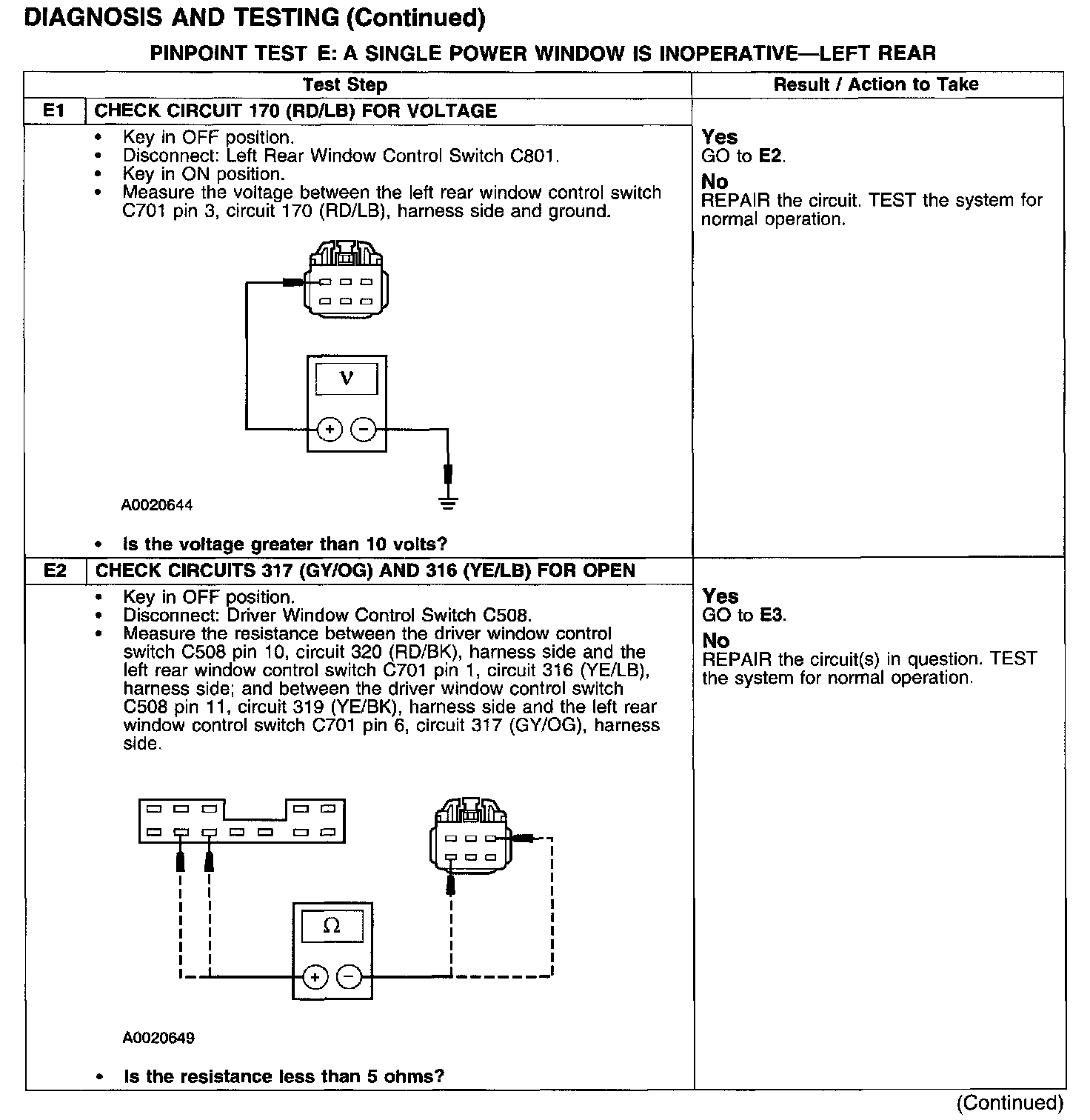

Test E1-E2:

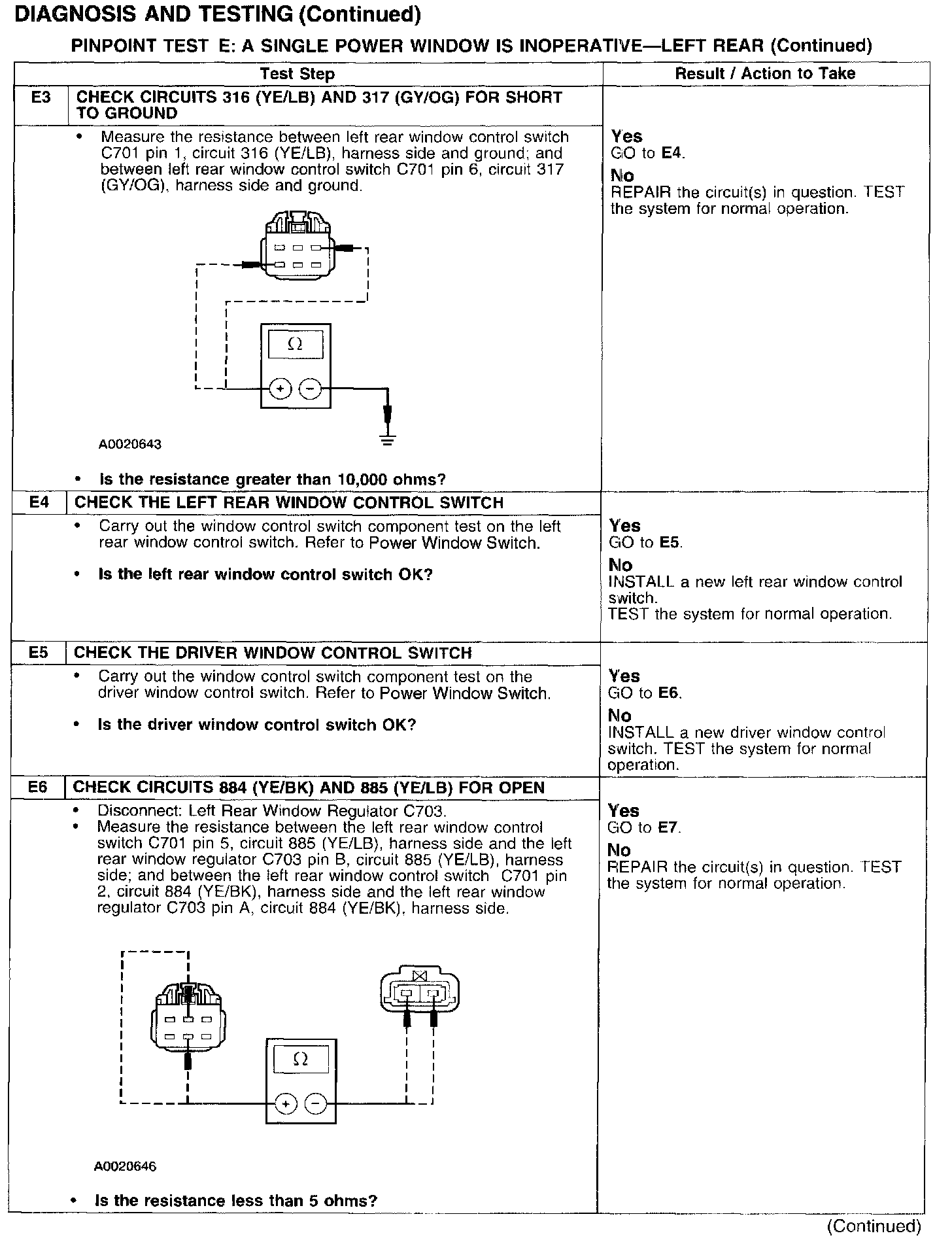

Test E3-E6:

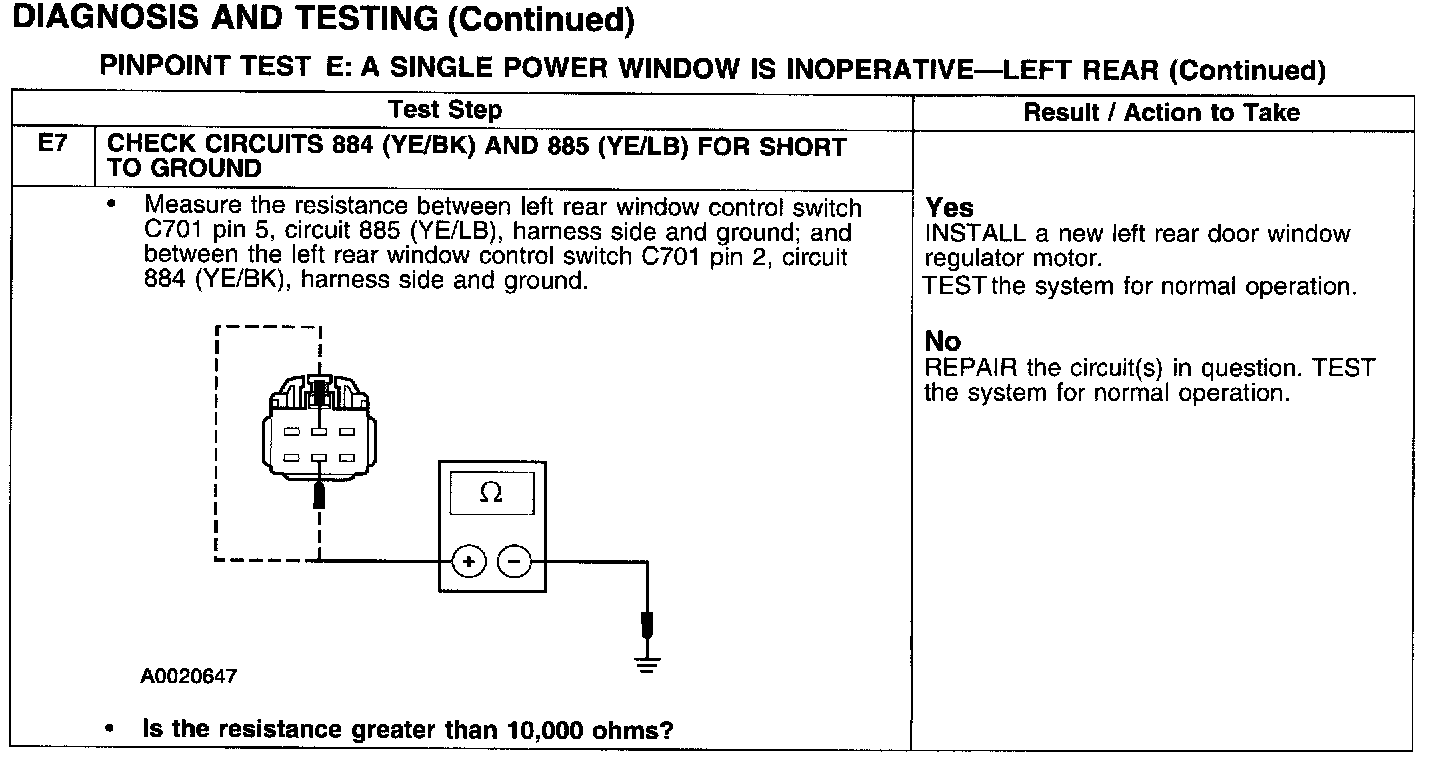

Test E7:
