Test A

PINPOINT TEST A: ALL POWER WINDOWS ARE INOPERATIVE

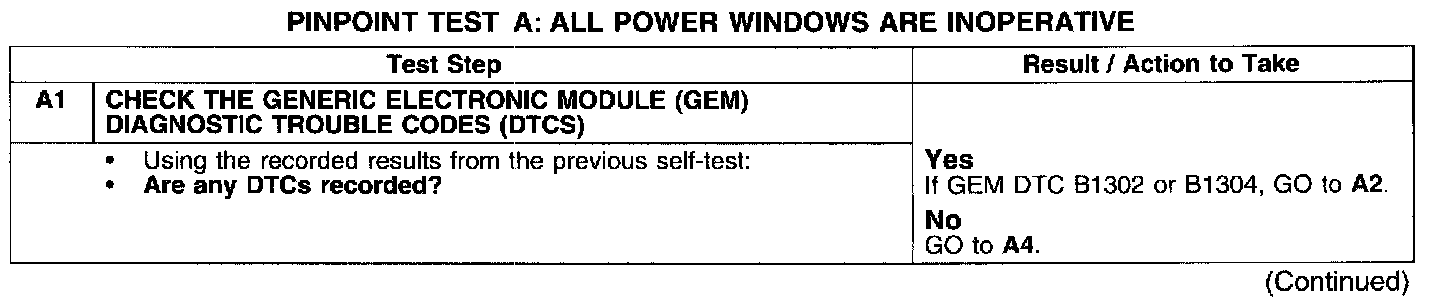

Test A1:

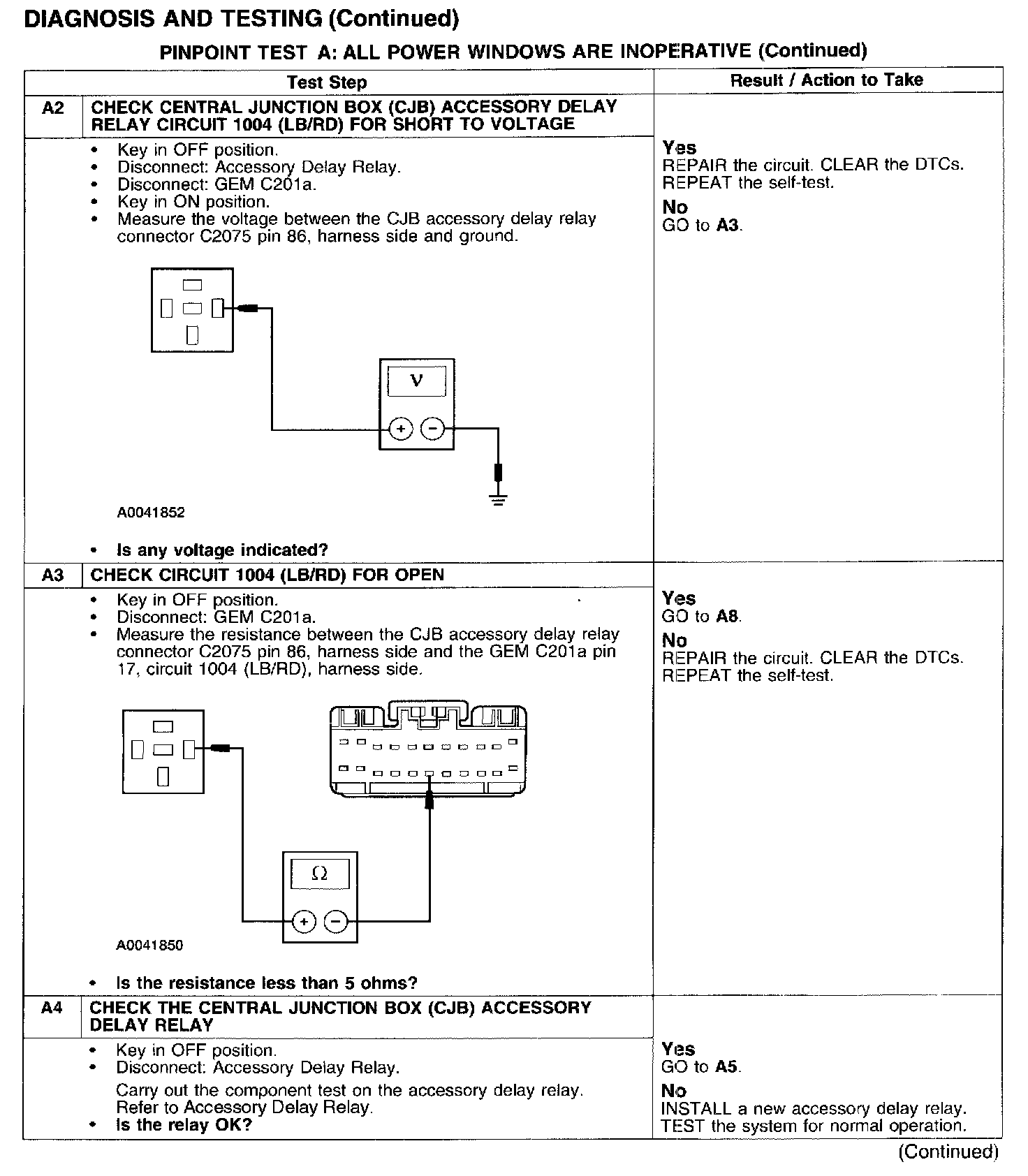

Test A2-A4:

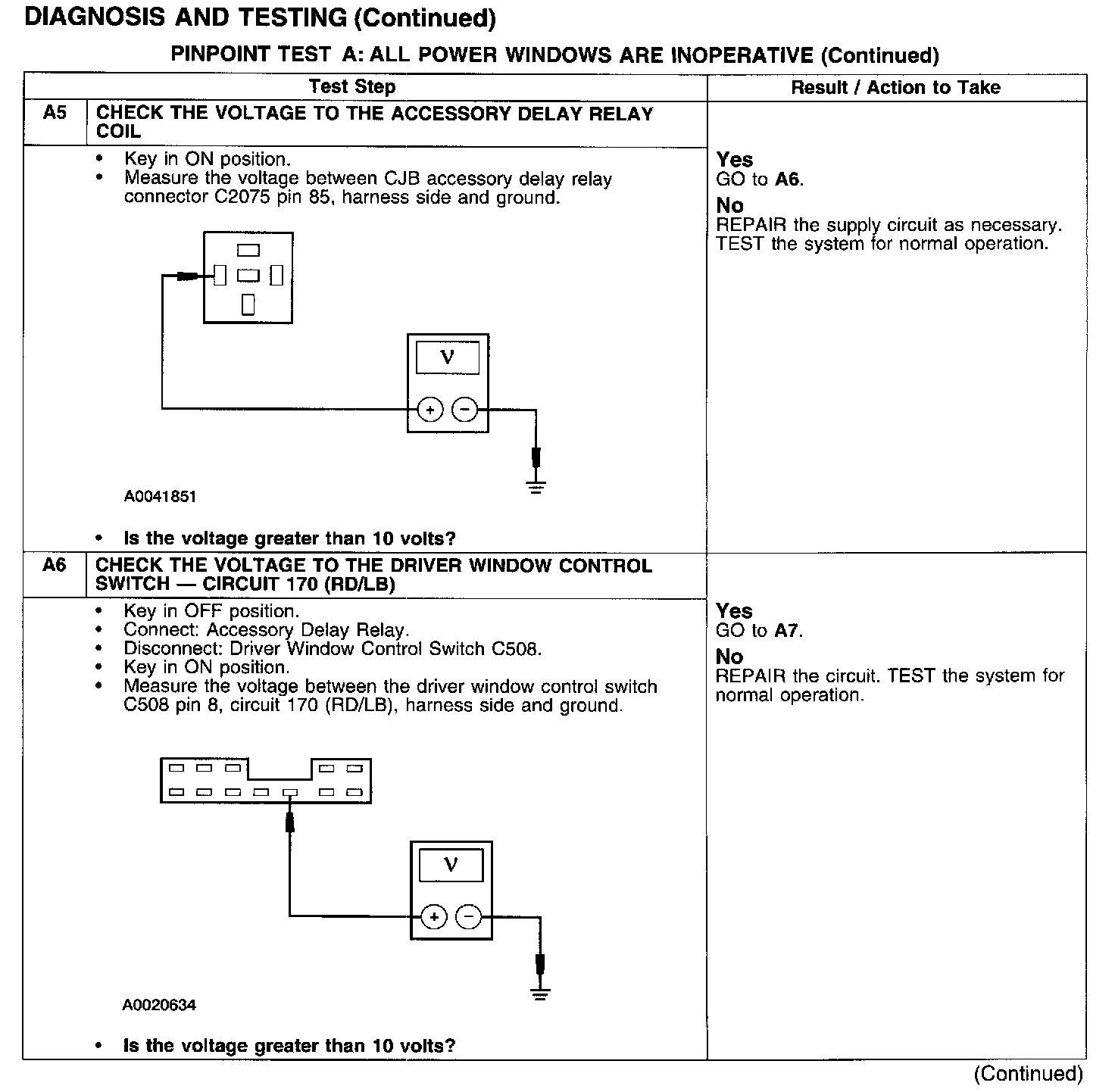

Test A5-A6:






Test A7-A8:
