Gearshift Lever

Gearshift Lever - 4X2

Removal and Installation

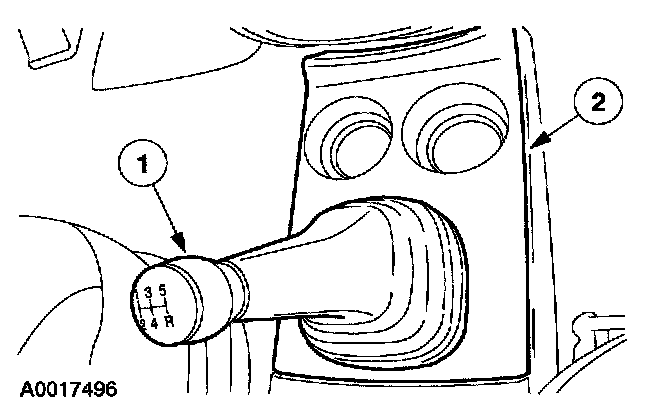

1. Remove the center console trim and gearshift lever boot.
1 Remove the gearshift lever knob.
2 Remove the center console trim and gearshift lever boot.

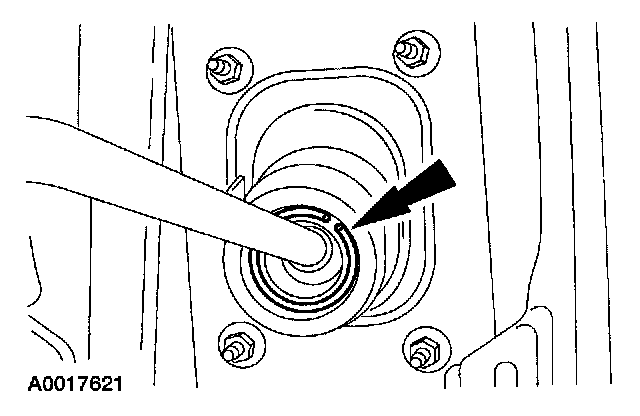

2. Remove the snap ring.

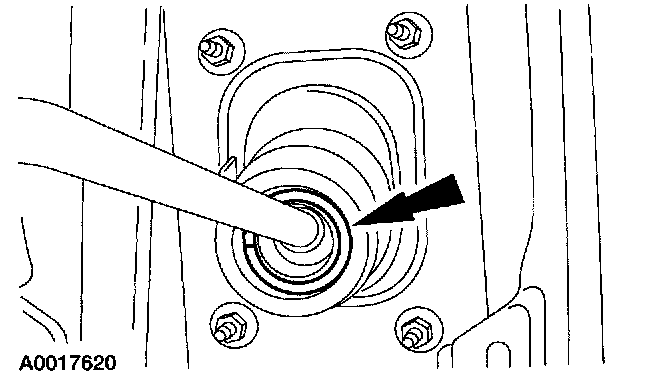

3. Remove the plastic clip.

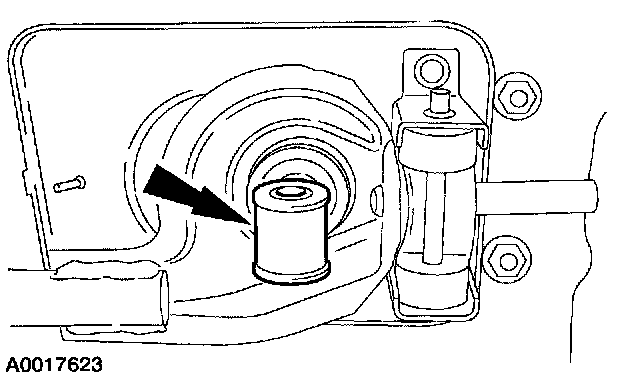

4. Remove the rubber bushing.
5. Raise and support the vehicle.

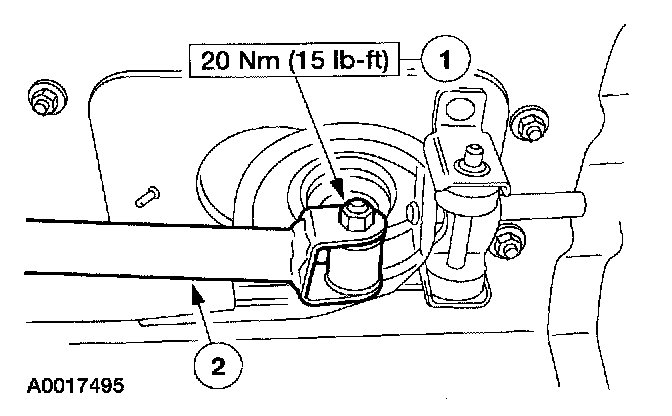

6. Disconnect the gearshift linkage.
1 Remove the bolt and nut.
2 Disconnect the gearshift linkage.





7. Remove the gearshift lever.
8. To install, reverse the removal procedure.
