Shift Linkage: Service and Repair

Gearshift Linkage - 4X2

Removal and Installation
1. Raise and support the vehicle.

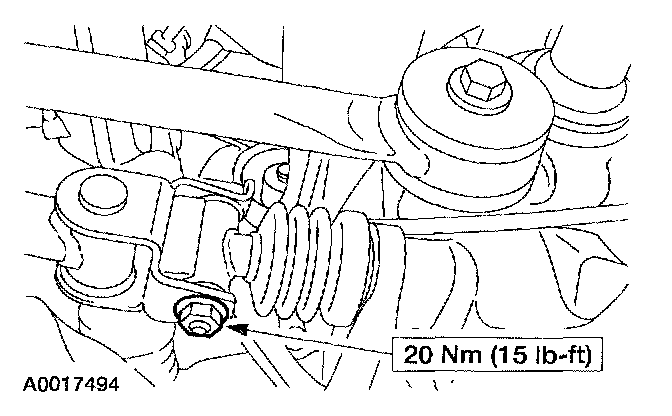

2. Remove the gearshift linkage to transaxle bolt and nut.





3. Remove the gearshift linkage.

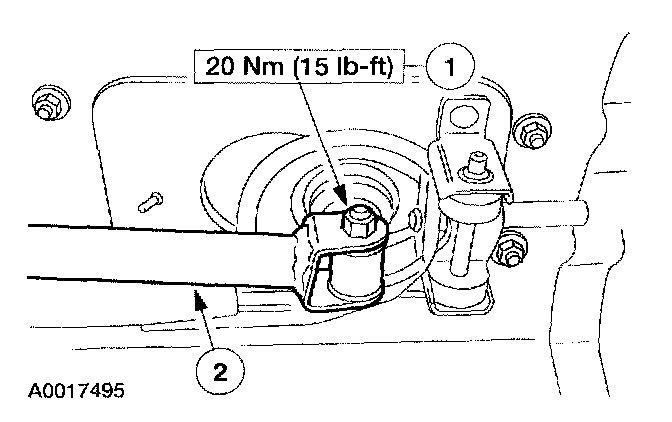

1 Remove the bolt and nut.
2 Remove the gearshift linkage.
4. To install, reverse the removal procedure.
