Transaxle Rear Support Insulator

Transaxle Rear Support Insulator

Removal and Installation

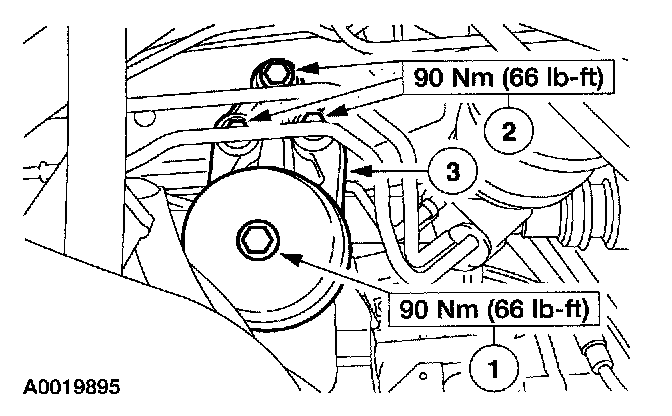

1. Remove the rear transaxle support insulator.
1 Remove the bolt.
2 Remove the bolt and the nuts.
3 Remove the rear transaxle support insulator.
2. To install, reverse the removal procedure
