Transaxle LH Support Insulator

Transaxle LH Support Insulator

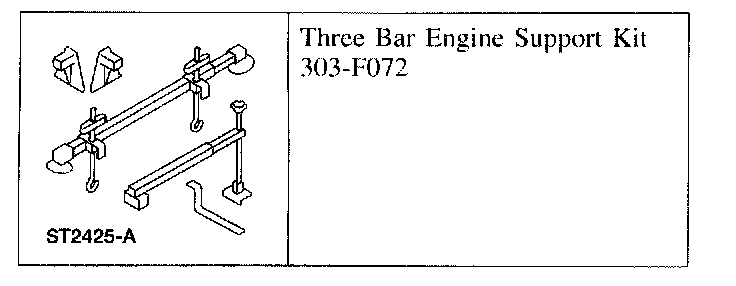

Special Tool(s)

Removal and Installation

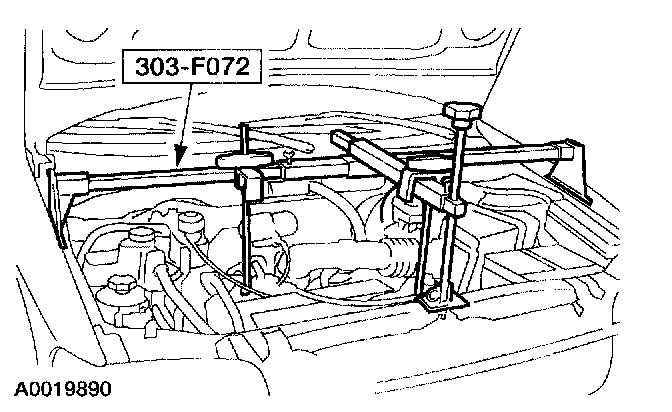

1. Using the special tool, support the engine.
2. Remove the air cleaner.

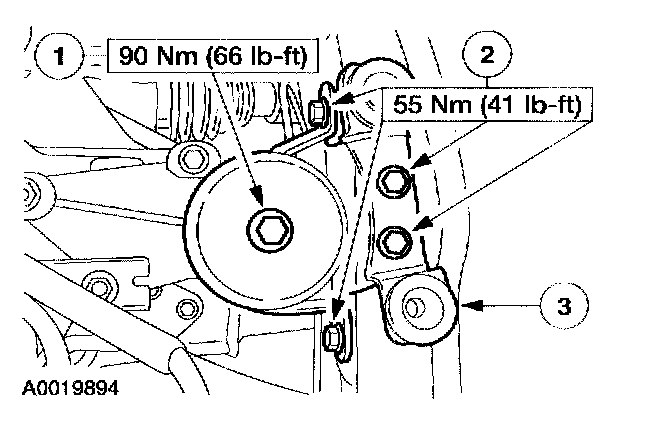

3. Remove the LH transaxle support insulator.
1 Remove the bolt.
2 Remove the four bolts.
3 Remove the LH transaxle support insulator.
4. To install reverse the removal procedure.
