Transaxle Front Support Insulator

Transaxle Front Support Insulator

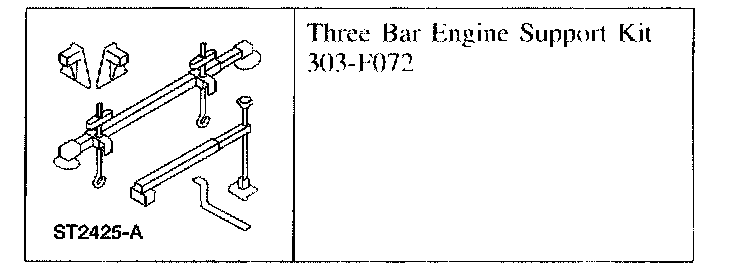

Special Tool(s)

Removal and Installation





1. Using the special tool, support the engine.

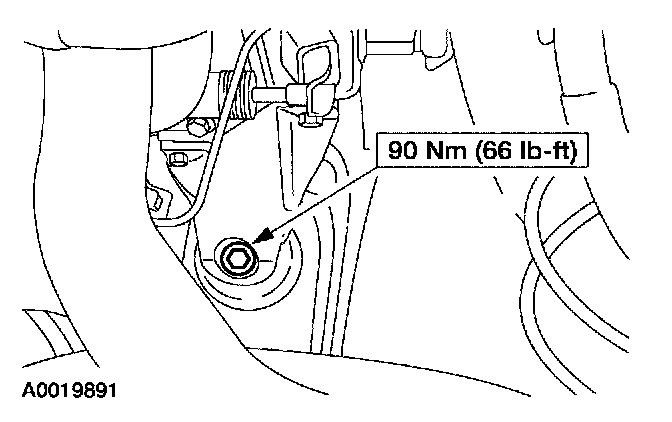

2. Remove the front transaxle support insulator bolt.
3. Raise and support the vehicle.





4. Remove the transverse crossmember.

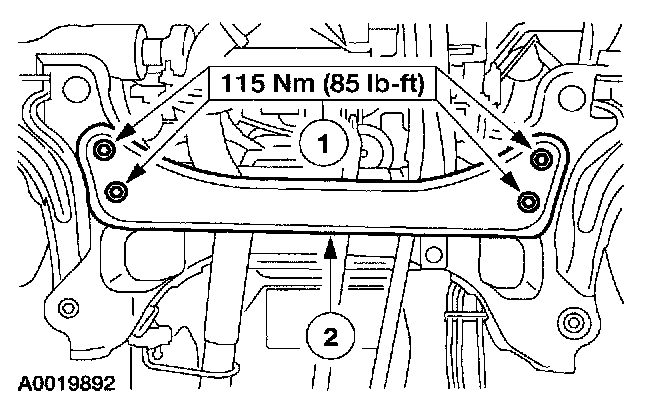

1 Remove the bolts.
2 Remove the transverse crossmember.





5. Remove the front-to-aft crossmember.

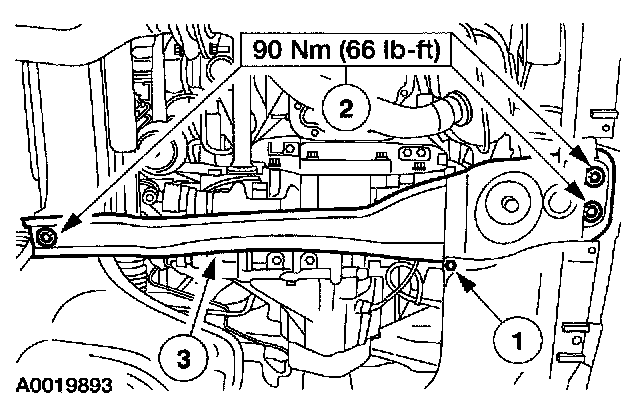

1 Remove the splash shield screw.
2 Remove the bolts and the nut.
3 Remove the front-to-aft crossmember.
6. To install, reverse the removal procedure.
