Transaxle Draining and Filling

Transaxle Draining and Filling

1. Raise and support the vehicle.

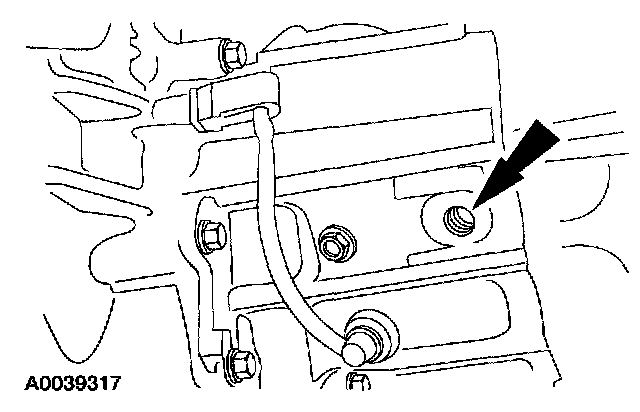

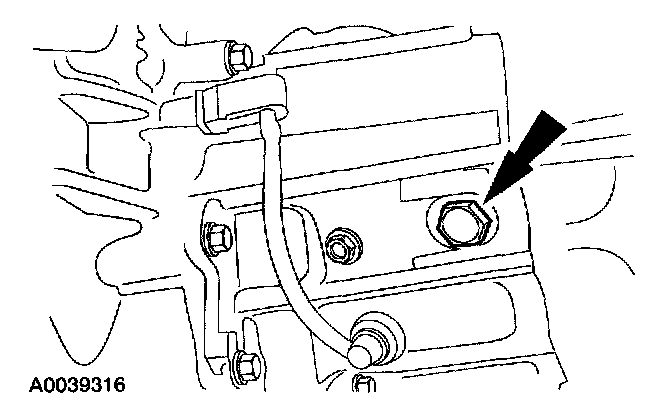

2. Remove the drain plug and draing fluid.

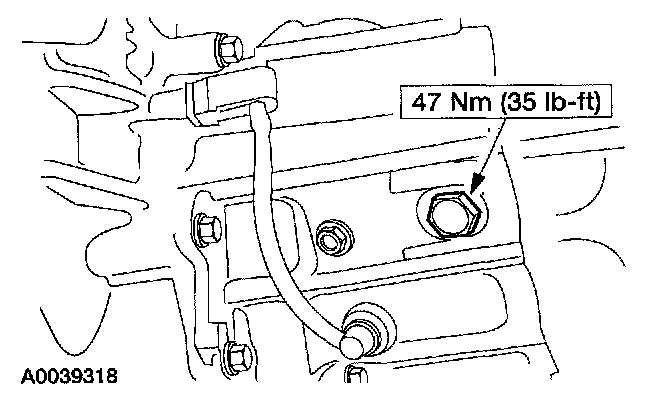

3. NOTE: Use a new gasket on the drain plug. Install the drain plug.




4. Remove the LH splash shield.

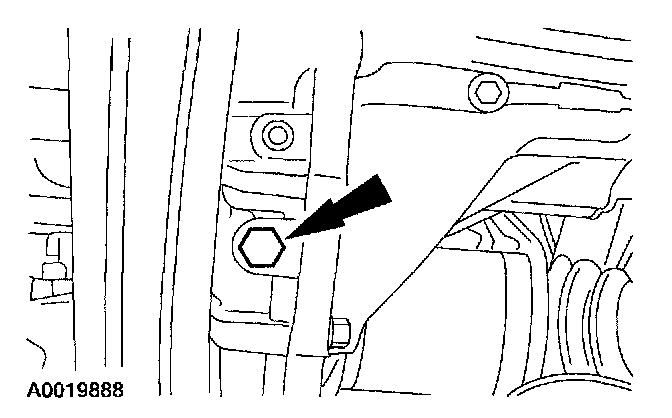

5. Remove the plug.




6. Fill the transmission with gear oil until level with fill hole.

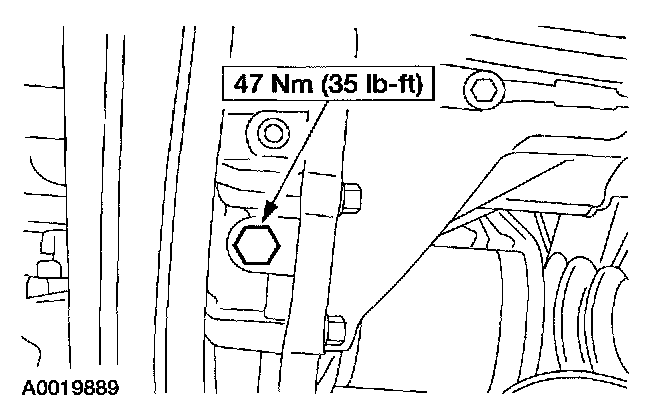

7. Install the fill plug.




8. Install the LH splash shield.
