Synchronizers - First/Second and Third/Fourth Gears
Synchronizers - First/Second and Third/Fourth GearsDisassembly
NOTE: First and second gear synchronizer shown; third/fourth gear synchronizer is similar.
1. NOTE: Prior to disassembly, note the position of the index marks.

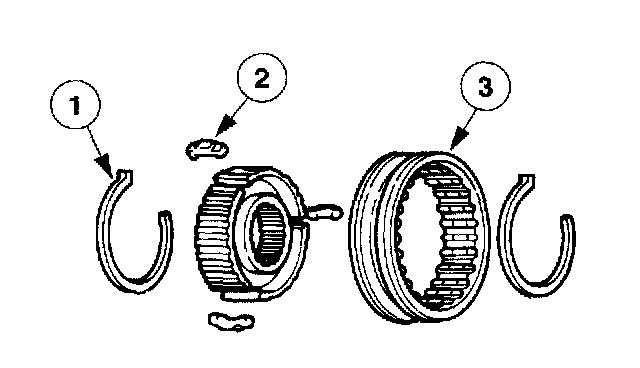

Disassemble the synchronizer assembly.
1 Remove the synchronizer blocking springs.
2 Remove the synchronizer hub inserts.
3 Separate the synchronizer hub from the sleeve.
2. Inspect all synchronizer components for wear and damage.
Assembly
1. NOTE: Align the index marks during assembly.
Assemble the synchronizer.
1 Position the synchronizer hub and sleeve together.
2 Install the synchronizer hub inserts.
3 Install the synchronizer blocking springs.
