Seals and Gaskets: Service and Repair

Halfshaft Oil Seal

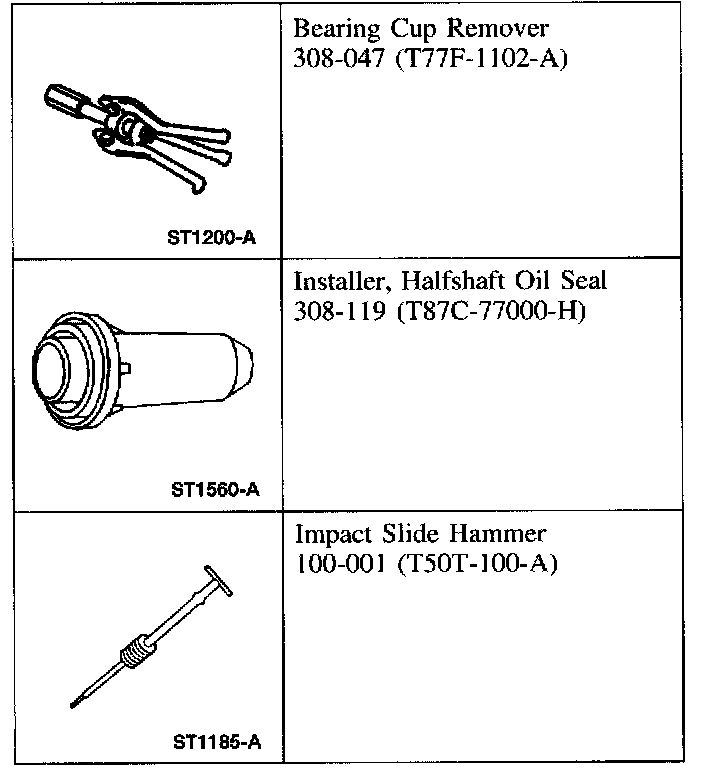

Special Tool(s)

Removal

1. Remove the halfshaft.





2. NOTE: RH side shown, LH side similar.

Remove the halfshaft seal.

Installation

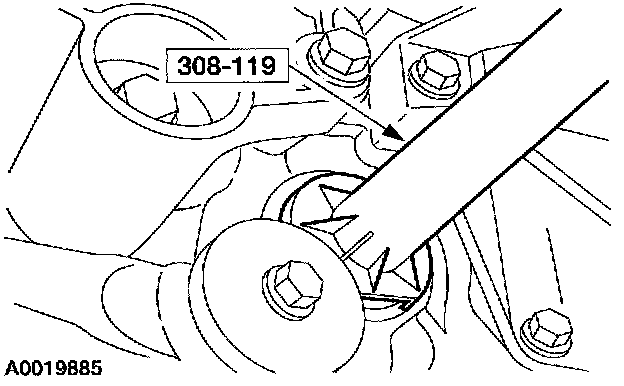

1. NOTE: RH side shown, LH side similar.

Using the special tool, install the new halfshaft seal.
2. Install the halfshaft.
