Rotary Blade Coupling - Rear Differential Mass Damper

Rotary Blade Coupling - Rear Differential Mass Damper

Removal

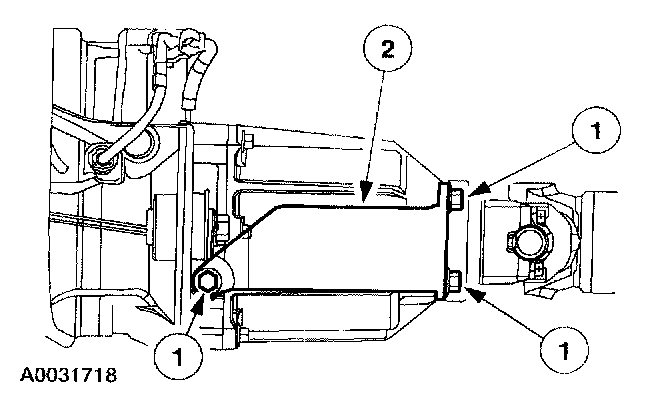

1. Remove the rear differential mass damper.
1 Remove the bolts.
2 Remove the rear differential mass damper.

Installation

CAUTION: The mass damper bolts must be installed in the sequence shown or damage to the vehicle may occur.

NOTE: Install the mass damper bolts by hand until finger tight.





1. Install the rear differential mass damper.

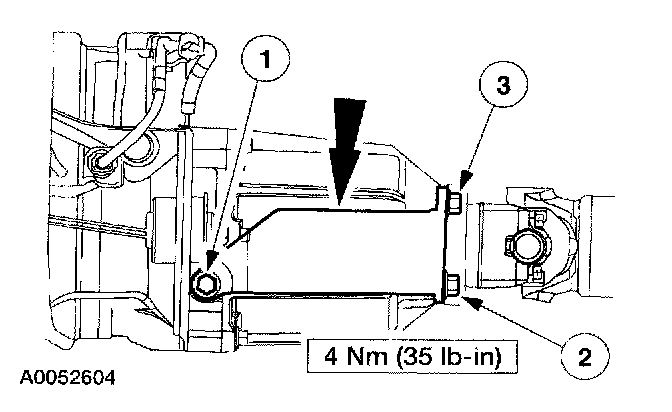

^ Position the rear differential mass damper and install the bolts in the sequence shown.

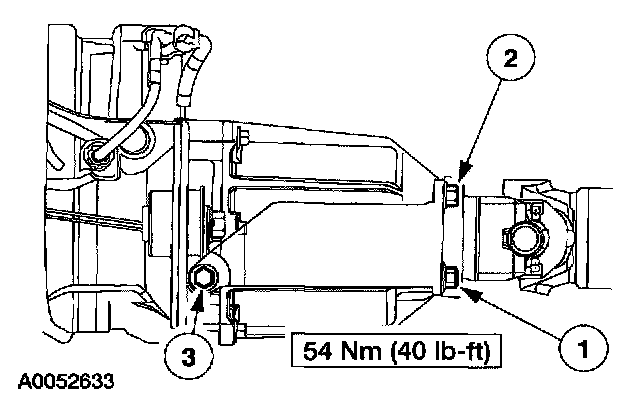

2. Final torque the mass damper bolts in the sequence shown.
