Seals and Gaskets: Service and Repair

Stub Shaft Pilot Bearing and Seal

Part 1 Of 2:

Part 2 Of 2:

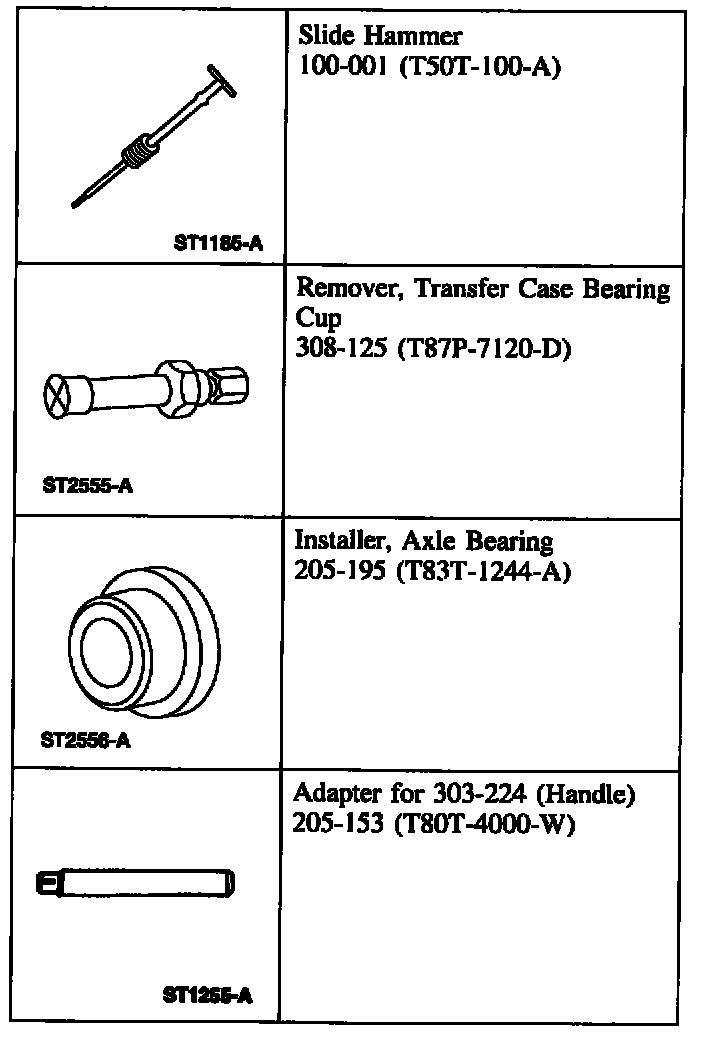

Special Tool(s)

Removal
1. Remove the halfshaft assembly.

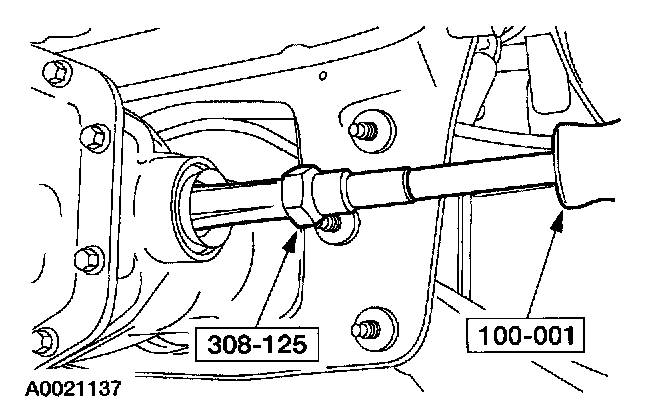

2. To remove the seal only, use the special tool and remove the stub shaft seal.





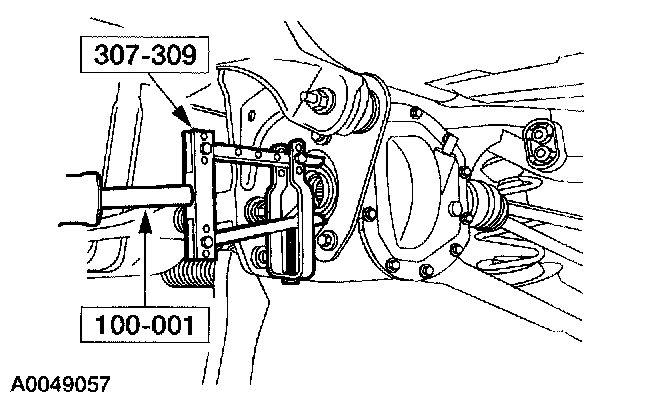

3. To remove the bearing and seal use the special tools and remove the stub shaft pilot bearing and seal.

Installation





1. NOTE: Lubricate the new stub shaft pilot bearing with rear axle lubricant.

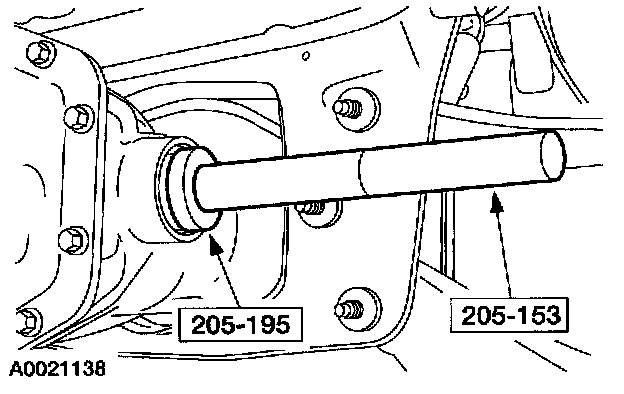

To install the bearing, use the special tools and install the stub shaft pilot bearing.





2. NOTE: Lubricate the new stub shaft pilot bearing housing seal with grease.

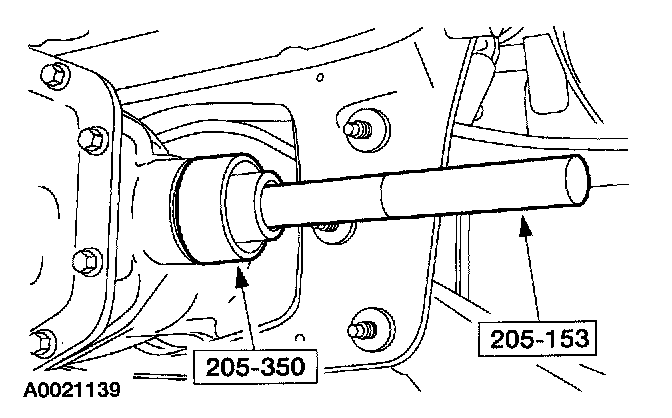

To install the seal, use the special tools and install the stub shaft pilot bearing housing seal.

3. CAUTION: Inspect the inboard CV joint seal journal for rust or nicks/scratches prior to installing the halfshaft. If necessary, polish the seal journal with fine crocus cloth.

Install the halfshaft assembly.
