Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Testing and Inspection >> Pinpoint Tests >> Test E: Clutch Related Vibrations

Test E: Clutch Related Vibrations

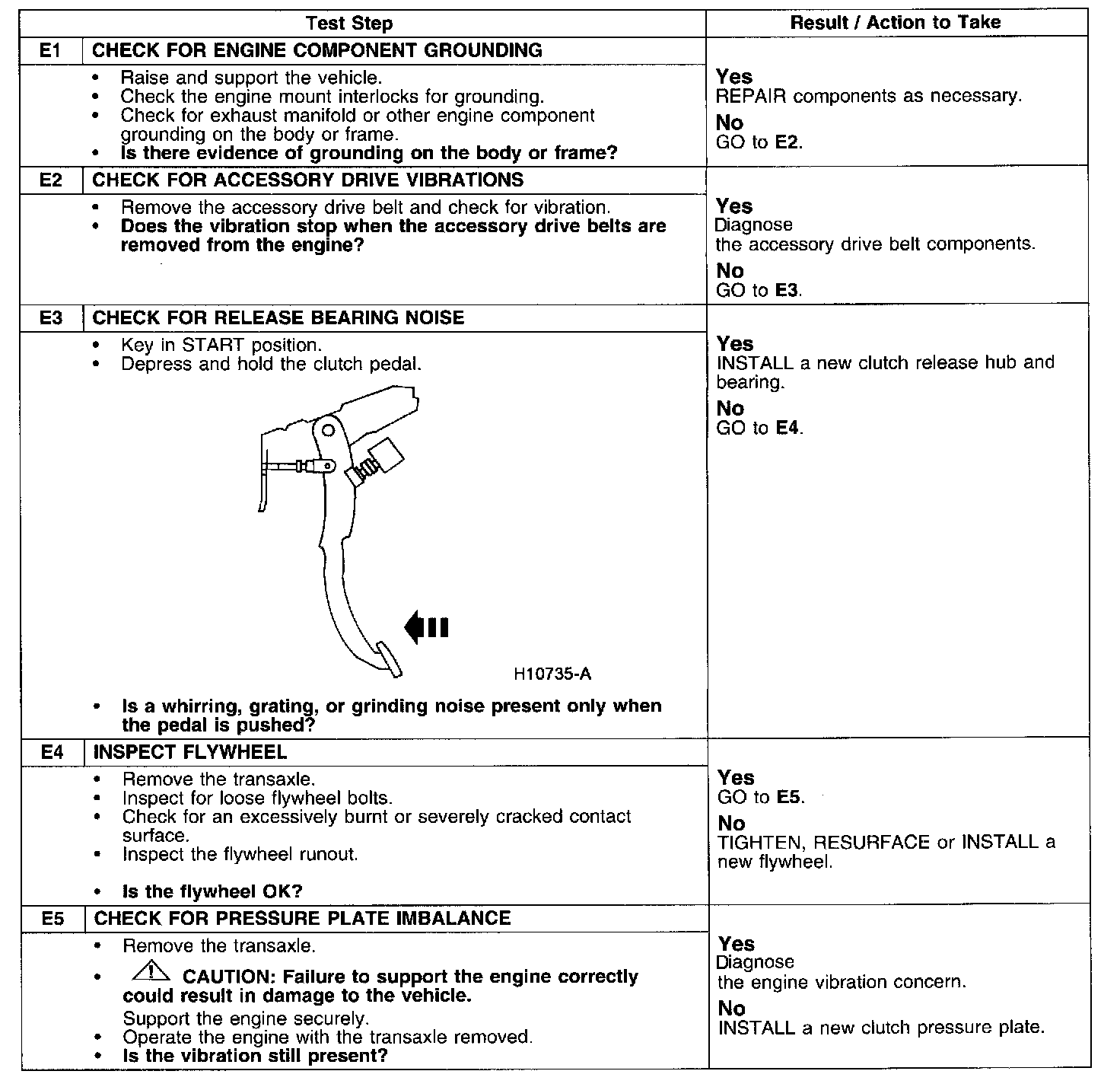

PINPOINT TEST E: CLUTCH RELATED VIBRATIONS

Test E1-E5:
