Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Testing and Inspection >> Pinpoint Tests >> Test C: Clutch Drag

Test C: Clutch Drag

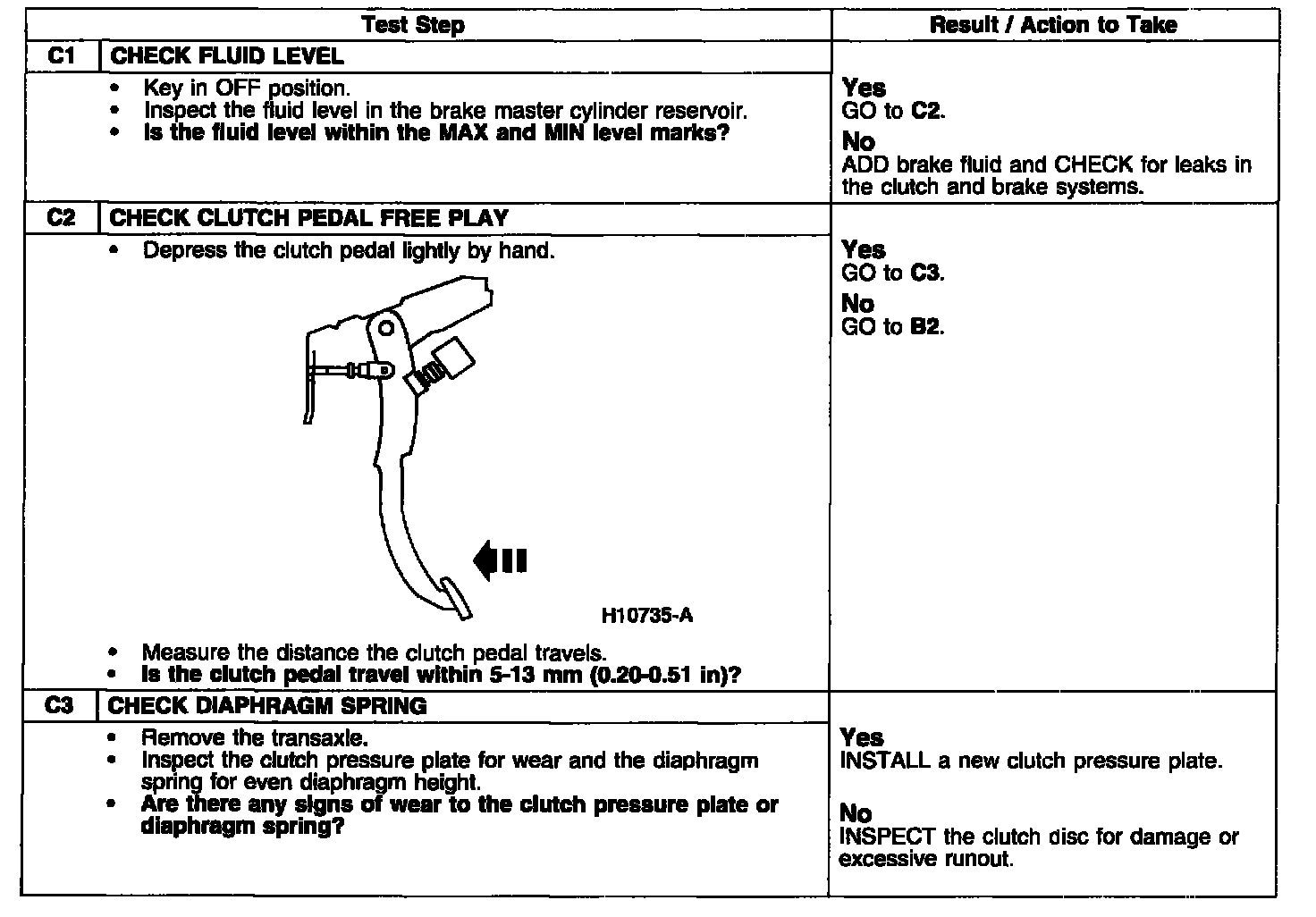

PINPOINT TEST C: CLUTCH DRAG

Test C1-C3:
