Clutch Housing Locating Dowels

Clutch Housing Locating Dowels

Removal
1. Remove the flywheel.





2. NOTE: Care should be taken not to damage the dowel holes or the surrounding surface areas during removal.

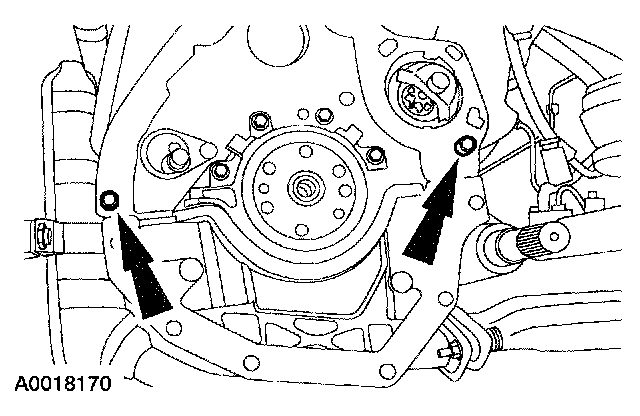

Remove the clutch housing locating dowels.

Installation

1. NOTE: Care should be taken to install the dowel squarely into place until it is fully seated and to not damage the surrounding surface areas.

Install the clutch housing locating dowels.
2. Install the flywheel.
