Clutch Pedal Assembly: Service and Repair

Clutch Pedal

Removal and Installation
1. Disconnect the battery ground cable.





2. Remove the clutch master cylinder nut.

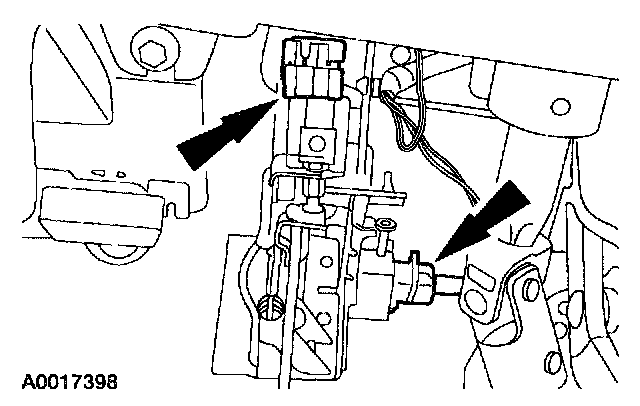

3. Disconnect the electrical connectors.

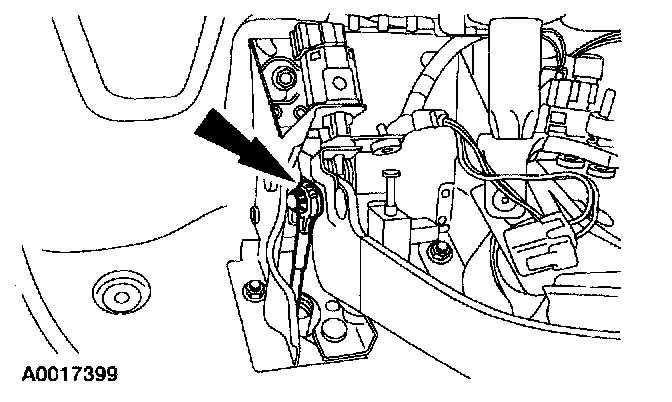

4. Disconnect the clutch master cylinder rod from the clutch pedal.

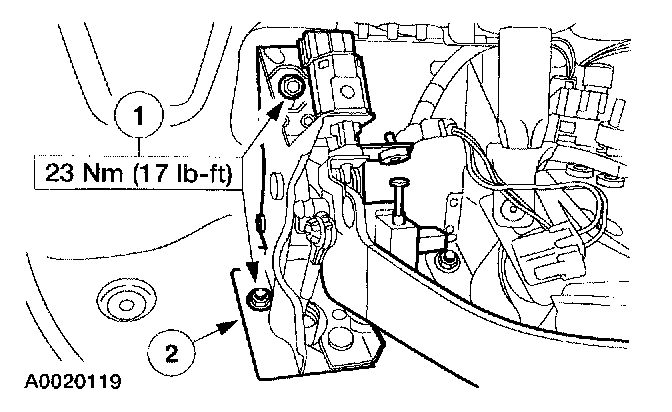

5. Remove the clutch pedal.
1 Remove the nuts.
2 Remove the clutch pedal.
6. To install, reverse the removal procedure.
