Clutch Master Cylinder: Service and Repair

Clutch Master Cylinder

Removal and Installation

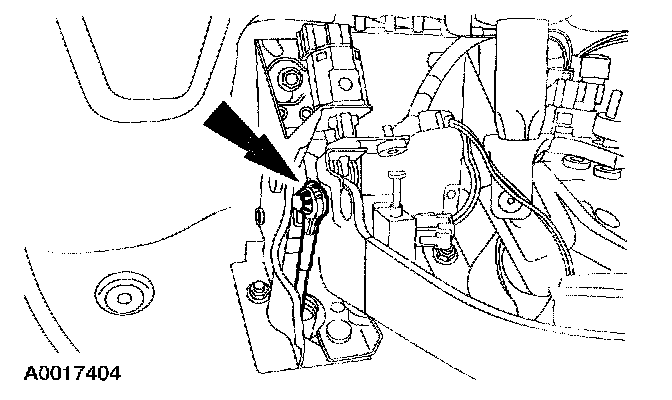

1. Disconnect the clutch master cylinder rod from the clutch pedal.

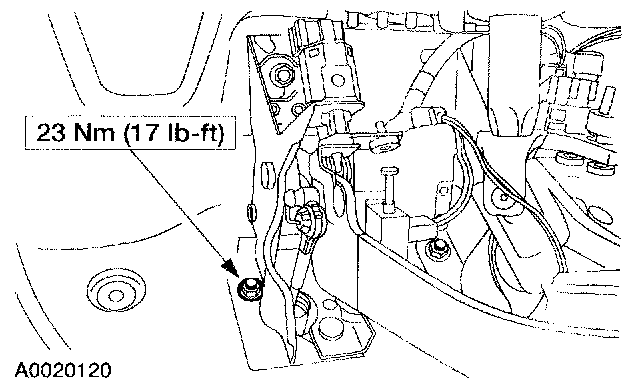

2. Remove the clutch pedal bracket nut.





3. WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, wash it immediately with water.

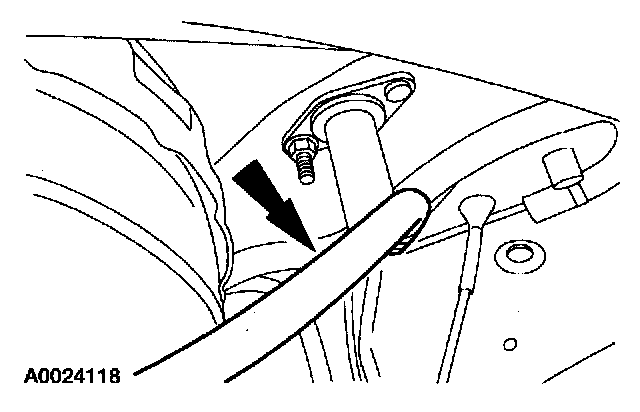

Disconnect the clutch master cylinder hose from the clutch master cylinder and plug it to prevent excess fluid loss

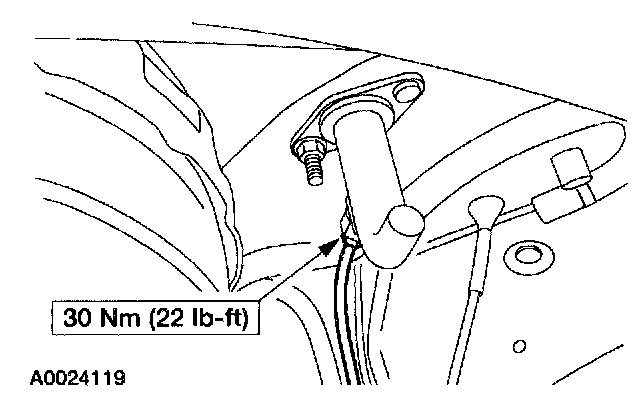

4. Disconnect the clutch slave cylinder tube from the clutch master cylinder.

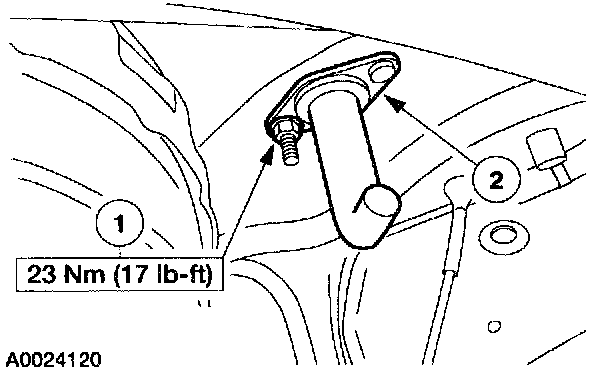

5. Remove the clutch master cylinder.
1 Remove the clutch master cylinder nut.
2 Remove the clutch master cylinder
6. To install reverse the removal procedure
^ Bleed the air from the system.
