Transaxle Support Insulator - Lower, Rear

Transaxle Support Insulator - Lower, Rear, 3.0L DOHC

Removal

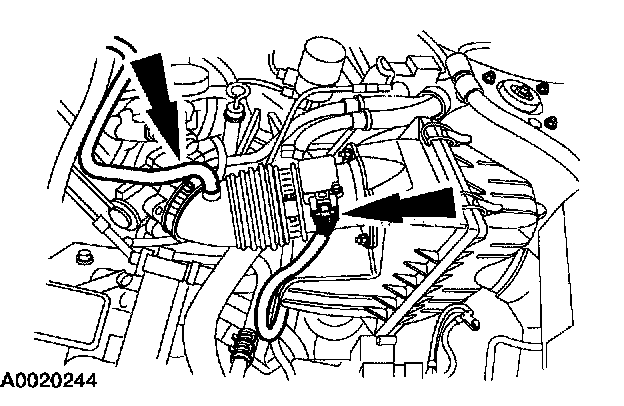

1. Disconnect the breather tube and Mass Air Flow (MAF) sensor.

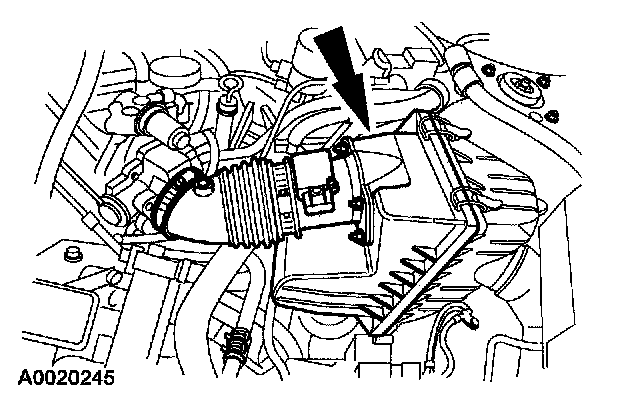

2. Remove the intake tube and air cleaner cover.

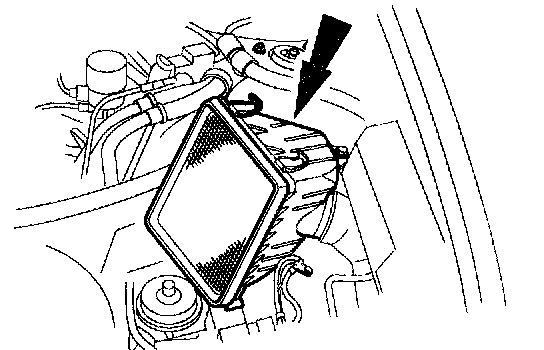

3. Remove the air cleaner assembly.

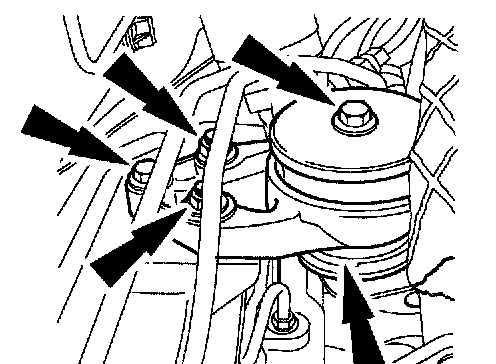

4. Remove the bolts and nuts from the mount, and remove the mount.

Installation





1. NOTE: Prior to tightening the mount nuts install the mount bolt for correct alignment.

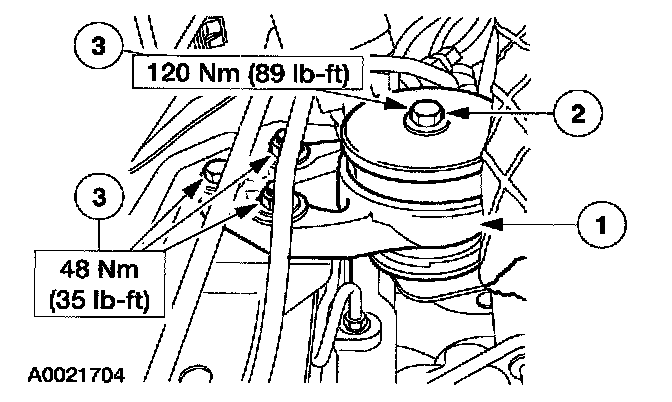

Install a new mount and bolts.
1 Install the mount.
2 Loosely install the bolt for correct alignment.
3 Tighten the bolt.





2. Install the air cleaner assembly.

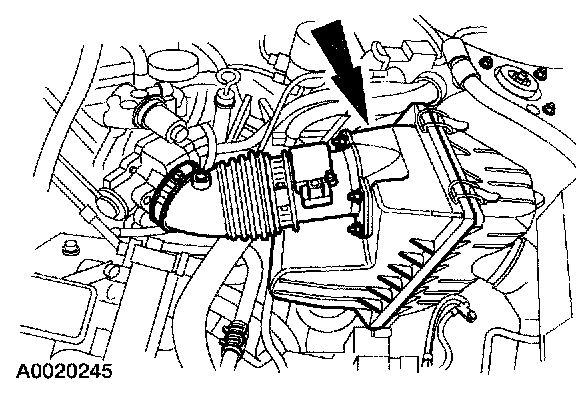

3. Install the intake tube and air cleaner cover.





4. Connect the breather tube and Mass Air Flow (MAF) sensor.
