Transaxle Support Insulator - Lower, Front

Transaxle Support Insulator - Lower, Front

Removal
1. Raise and support the vehicle.





2. Remove the splash shield.

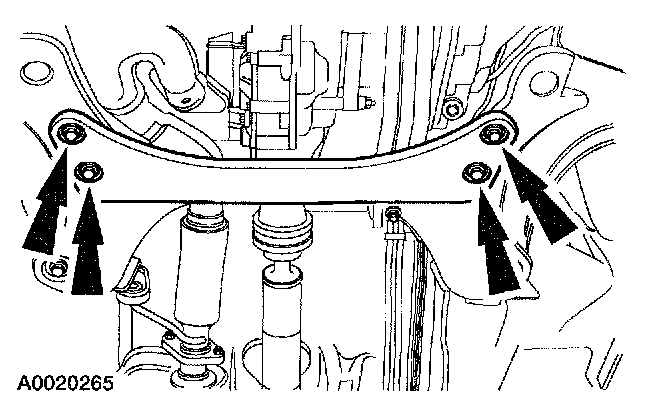

3. Remove the cross brace.





4. Remove the lower vibration dampener.





5. Remove the cross brace.

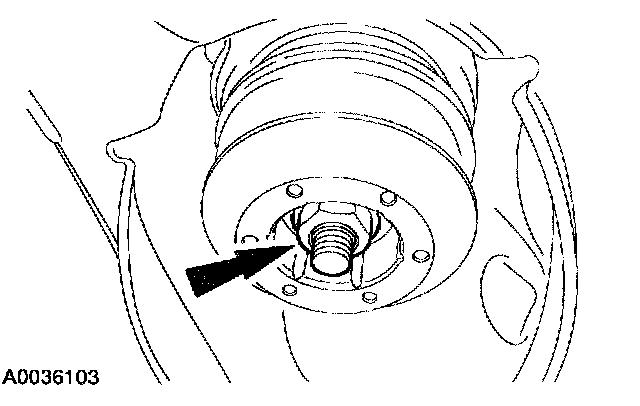

6. Remove the top and bottom mount cups.

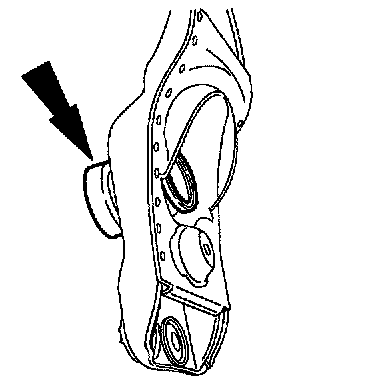

7. Remove the rubber mount.

Installation





1. Install a new rubber mount.





2. Install the top and bottom mount cups.





3. Install the cross brace.





4. Install the lower vibration dampener.





5. Install the cross brace.





6. Install the splash shield.
7. Lower the vehicle.
