Auxiliary Transmission Fluid Cooler

Auxiliary Transmission Fluid Cooler

Removal and Installation
1. Remove the front bumper cover.





2. Disconnect the cooler tubes.

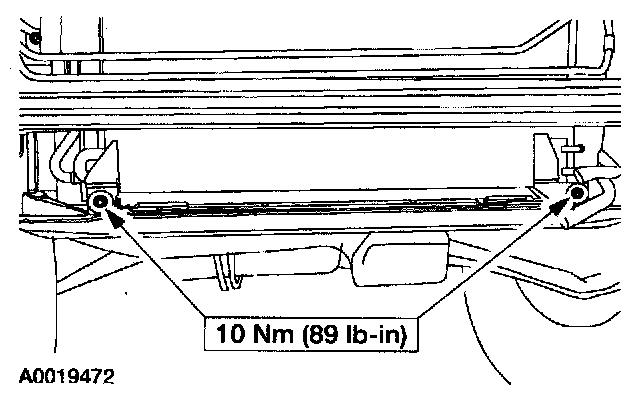

3. Remove the bolts and the auxiliary transmission fluid cooler.
4. To install, reverse the removal procedure.
^ Fill the transaxle to the specified level.
