Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> CD4E >> Torque Converter Operation Concerns >> 241/341: Always Applied/May Stall Engine

241/341: Always Applied/May Stall Engine

TORQUE CONVERTER OPERATION CONCERNS: ALWAYS APPLIED/MAY STALL ENGINE

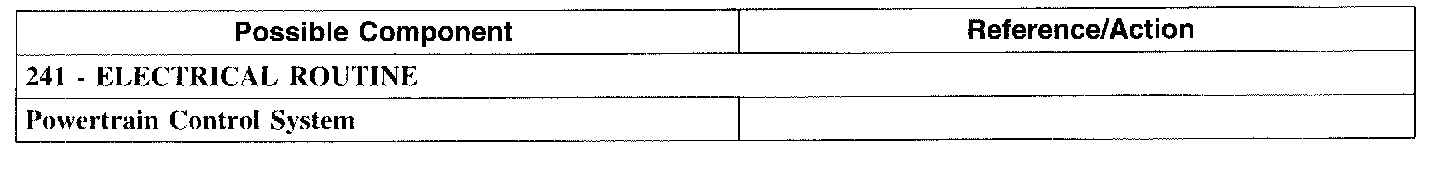

Part 1 Of 2:

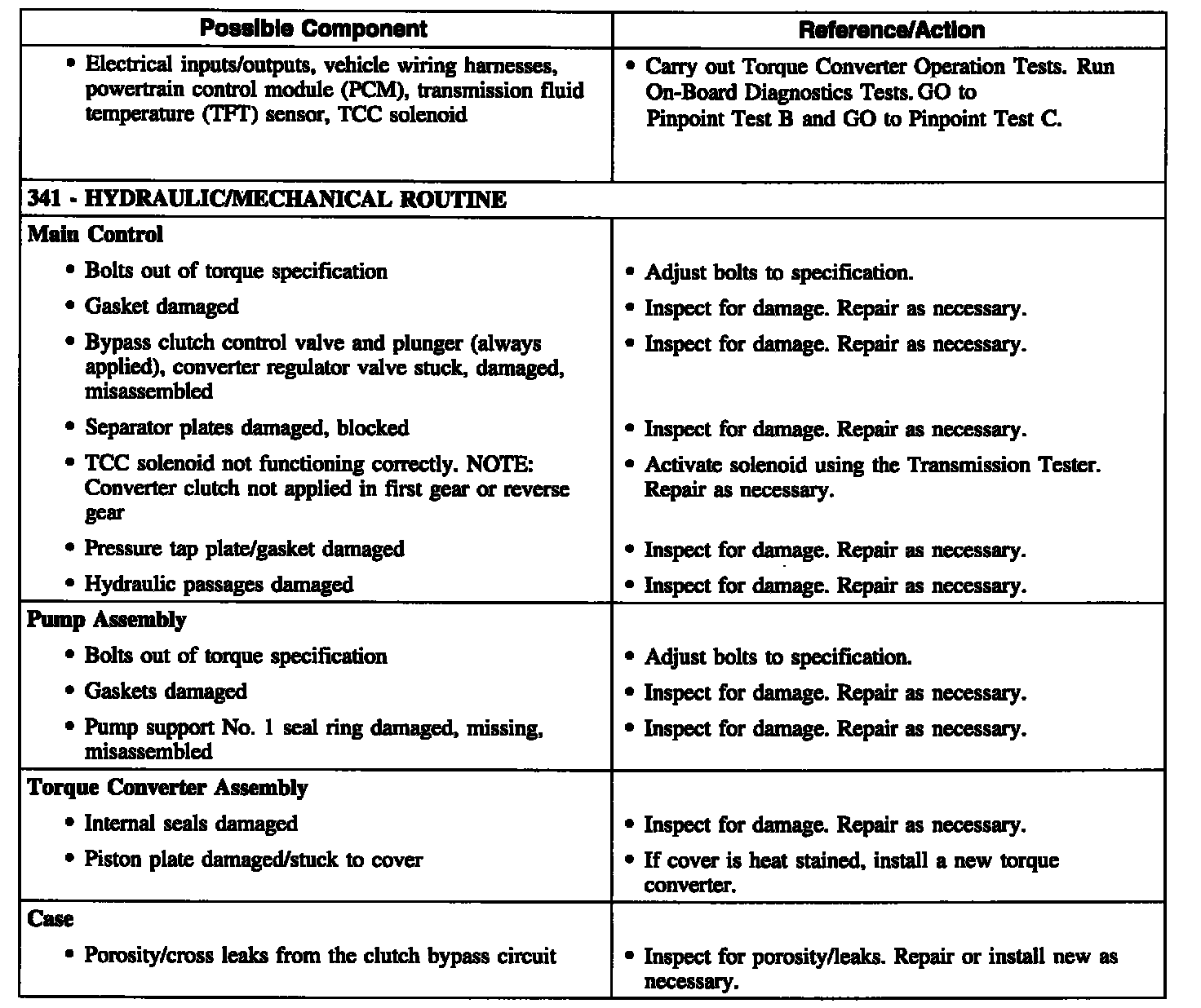

Part 2 Of 2:
