232/332: Harsh 1-2 Shift Only (Automatic)

SHIFT CONCERNS: HARSH 1-2 SHIFT ONLY (AUTOMATIC)

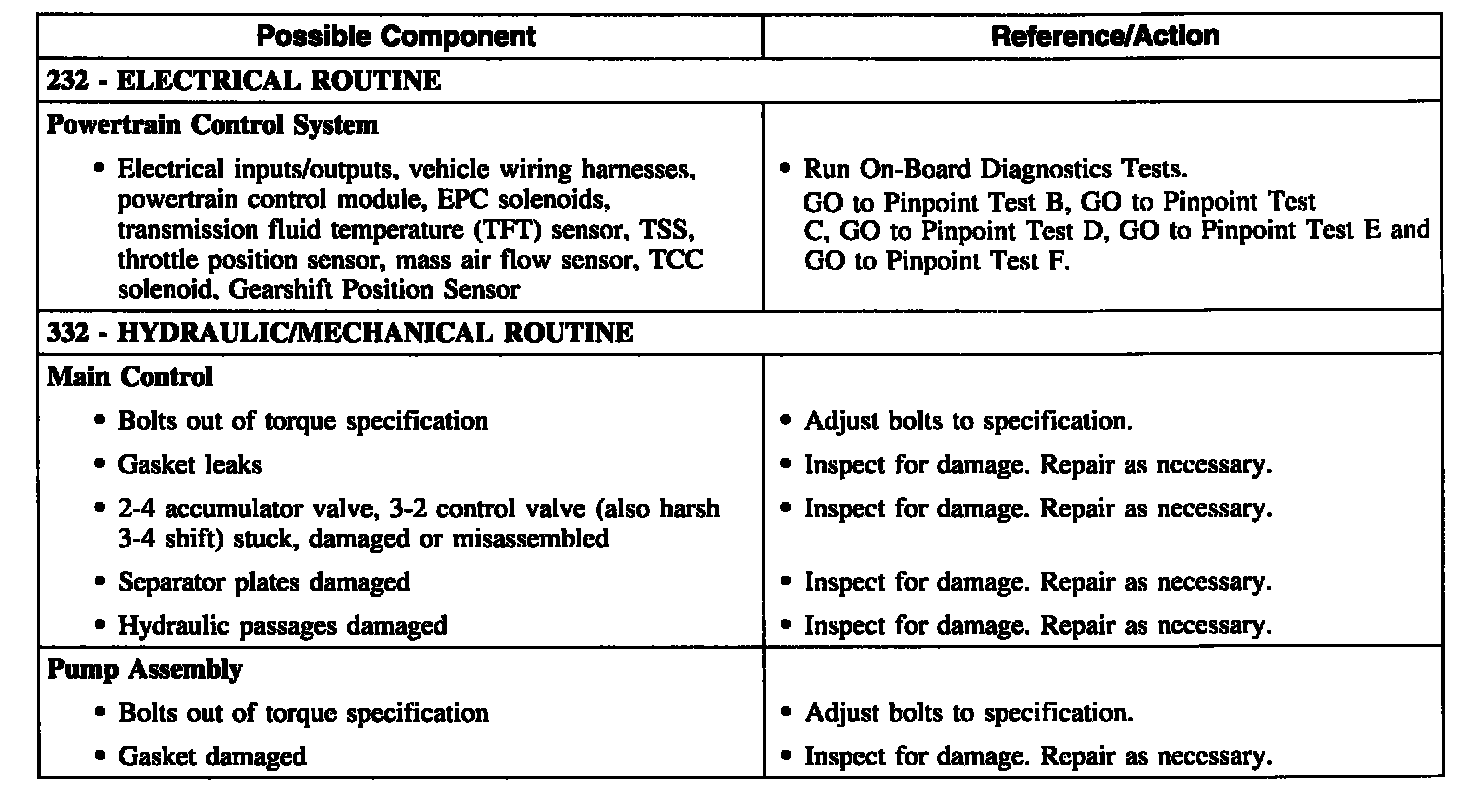

Part 1 Of 2:

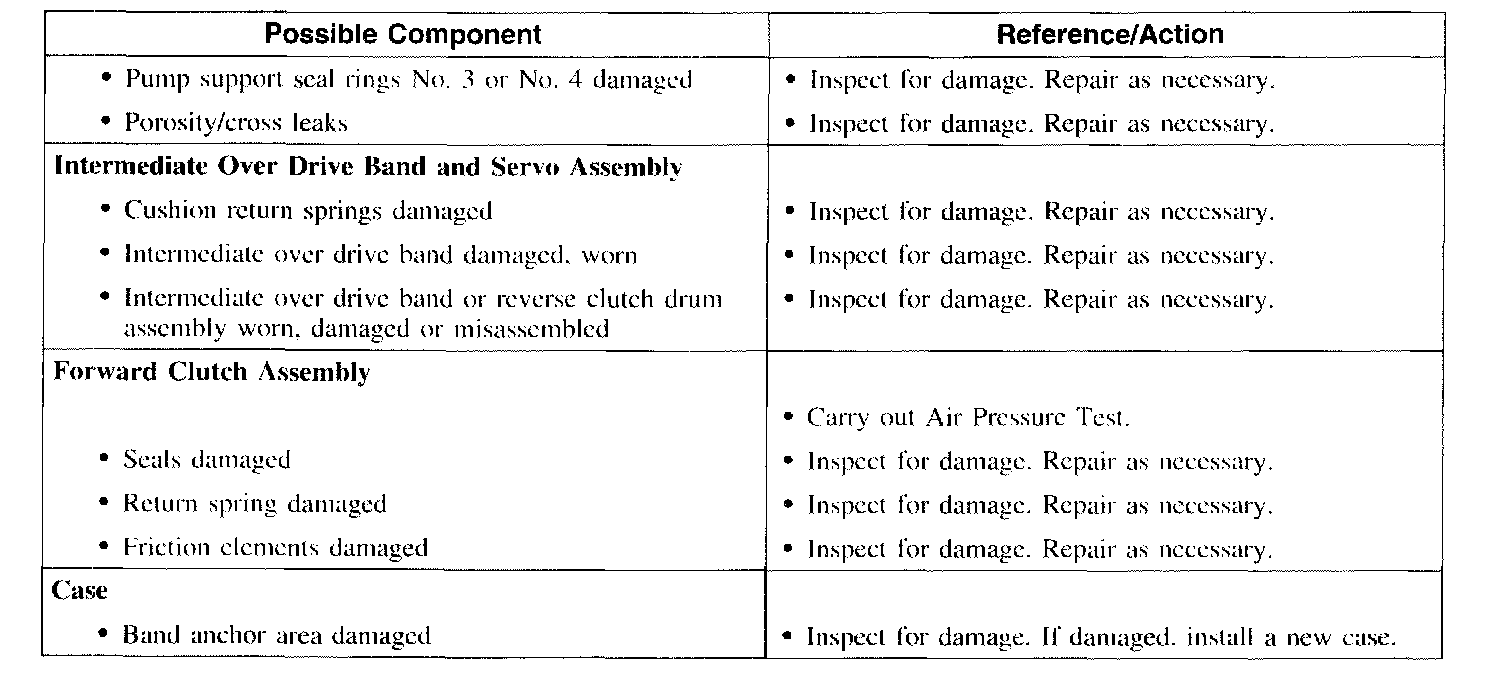

Part 2 Of 2:
