FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
CD4E
>>
Shift Concerns
>>
215/315: No 1ST Gear, Engages In Higher Gear ("D" Position)
215/315: No 1ST Gear, Engages In Higher Gear ("D" Position)
SHIFT CONCERNS: NO 1ST GEAR, ENGAGES IN HIGHER GEAR ("D" POSITION)

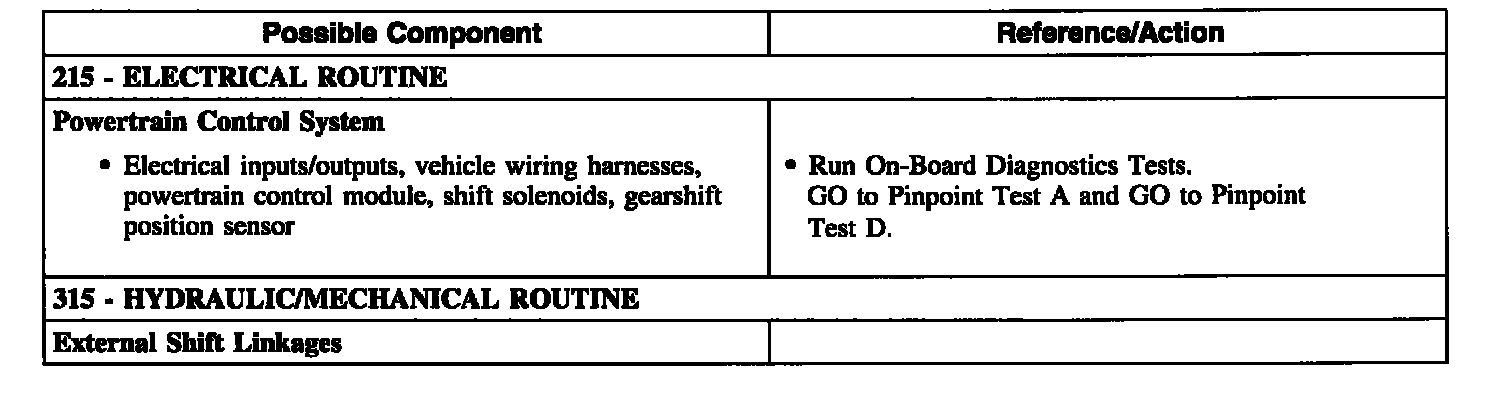

Part 1 Of 2:

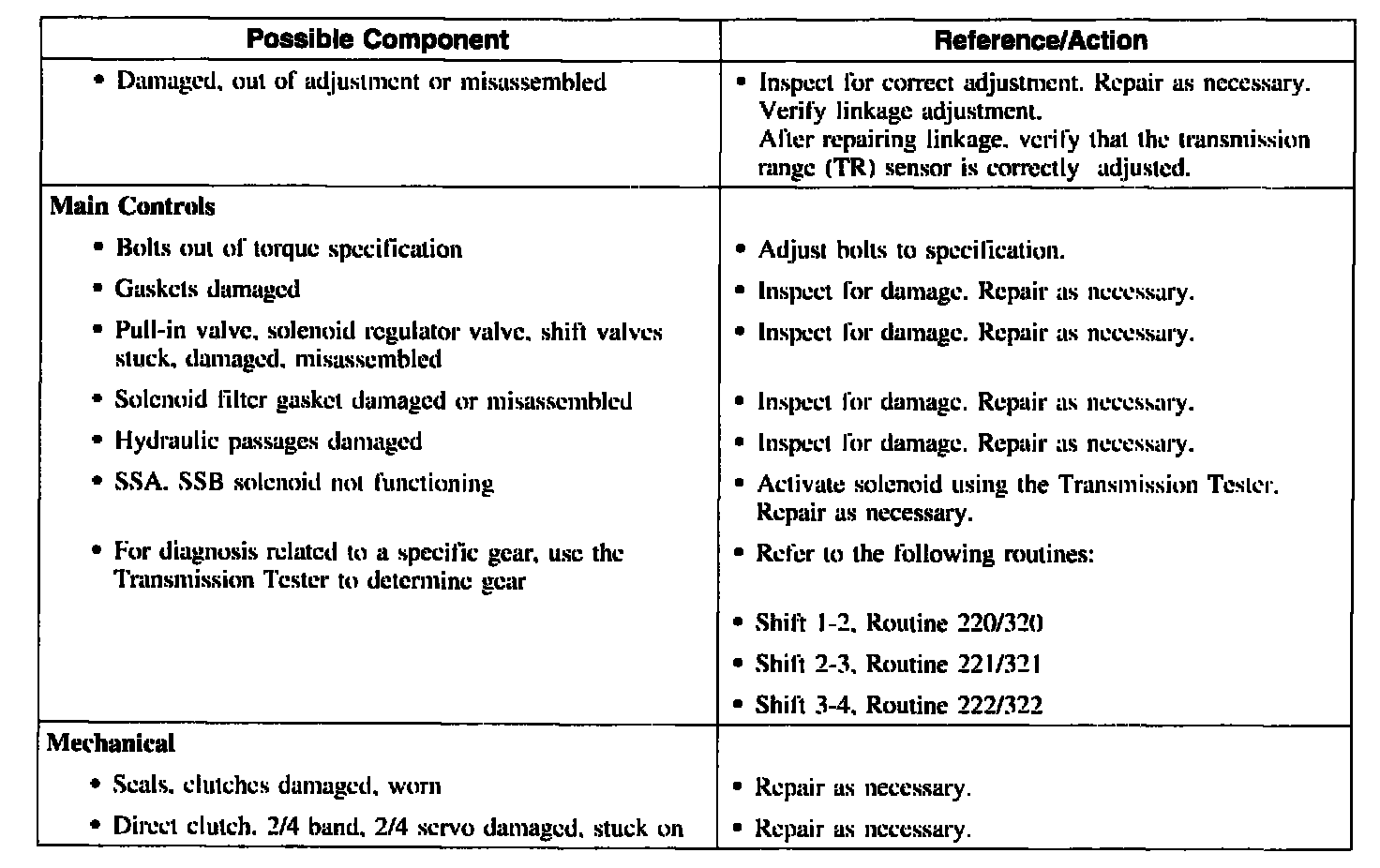

Part 2 Of 2:
