Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> CD4E >> Shift Concerns >> 211/311: Shift Timing - Early/Late

211/311: Shift Timing - Early/Late

SHIFT CONCERNS: SHIFT TIMING - EARLY/LATE

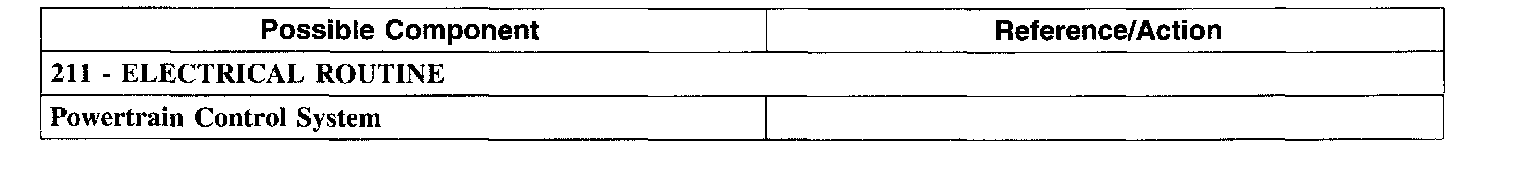

Part 1 Of 2:

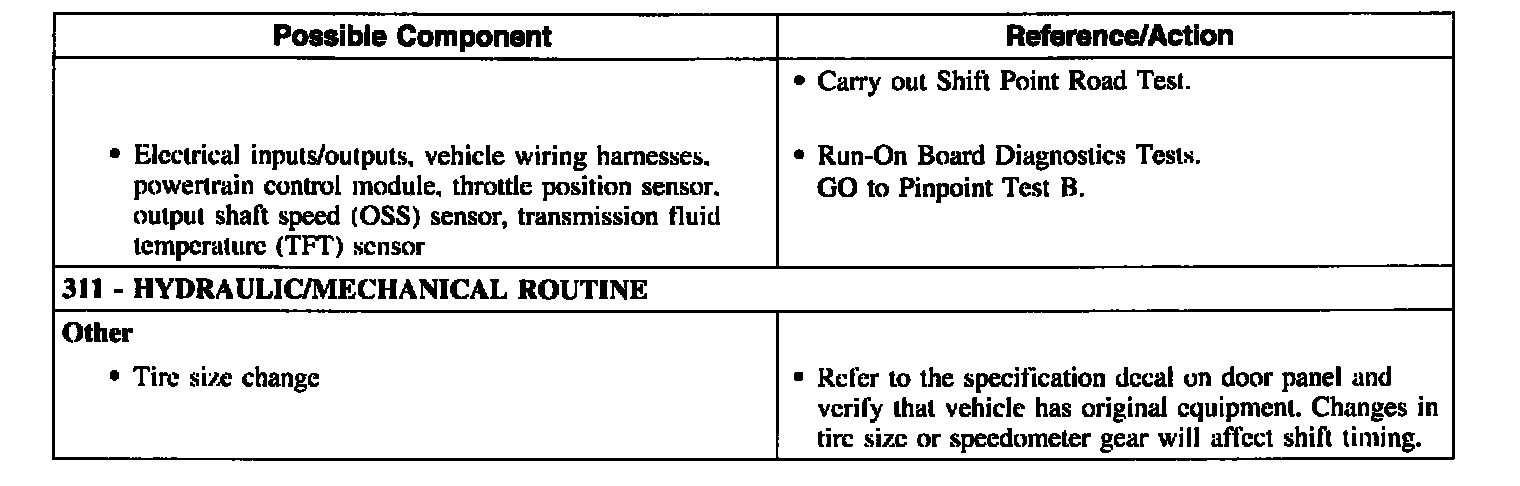

Part 2 Of 2:
