Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> CD4E >> Engagement Concerns >> 202/302: No Reverse

202/302: No Reverse

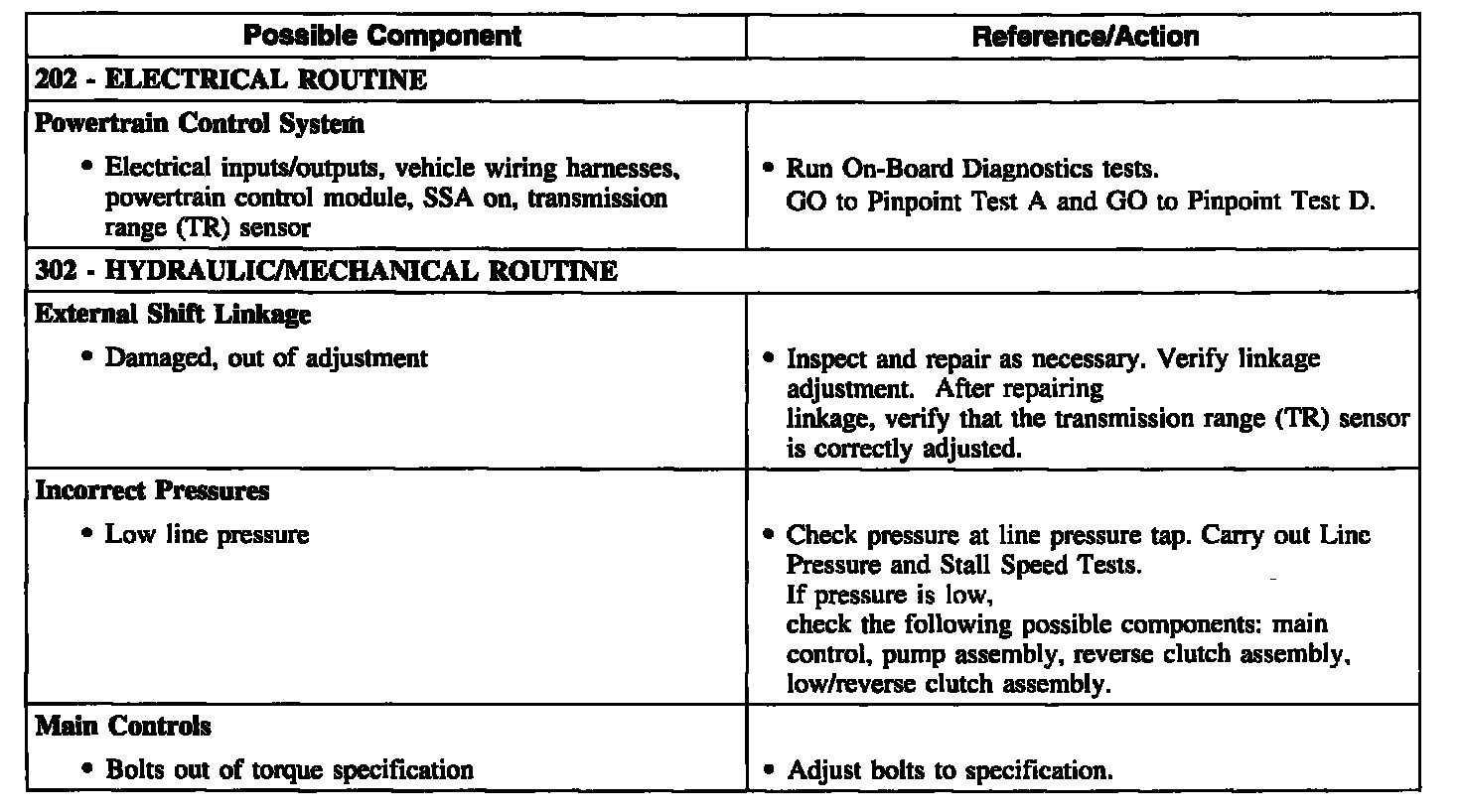

ENGAGEMENT CONCERN: NO REVERSE ONLY

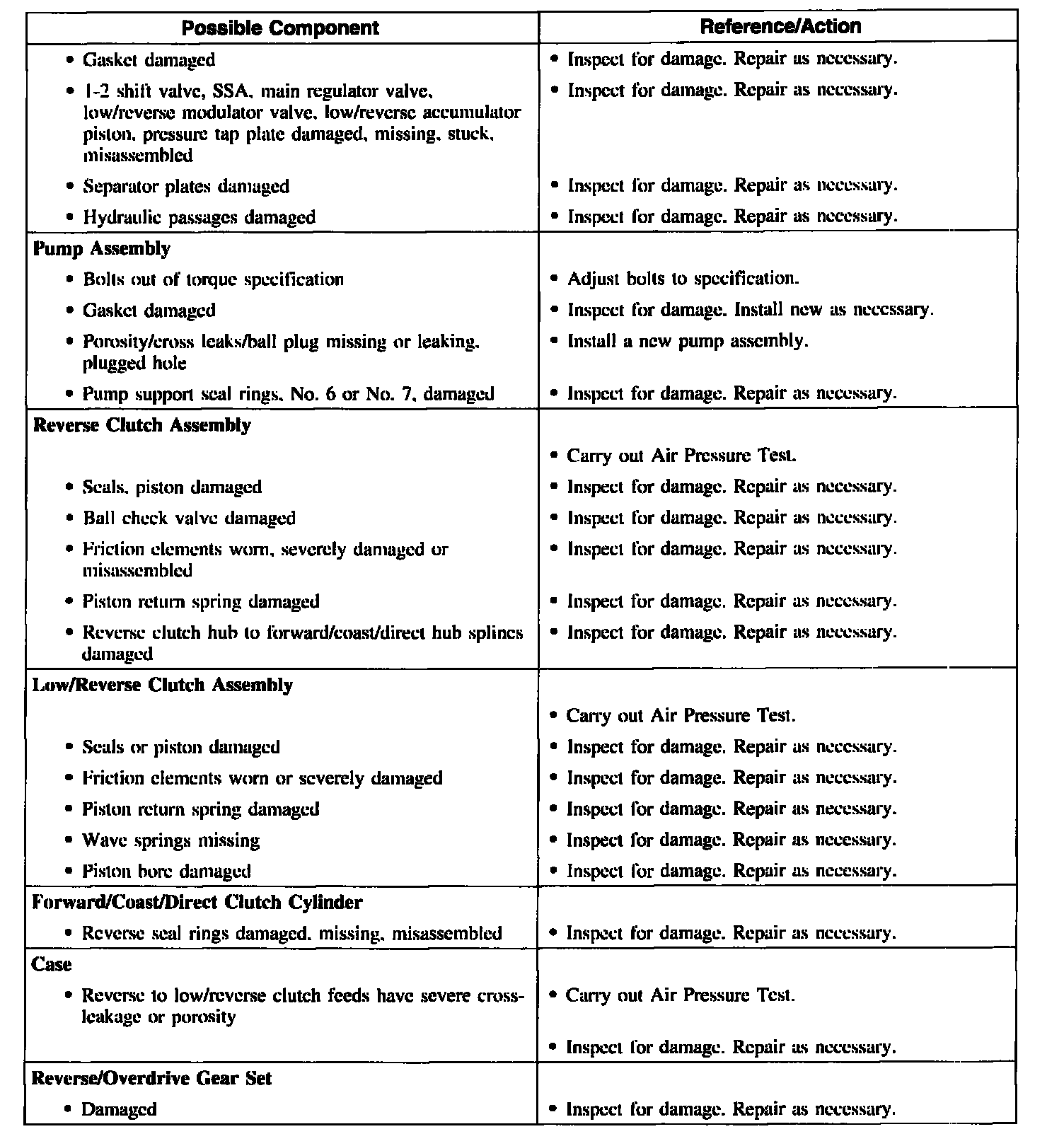

Part 1 Of 2:




Part 2 Of 2:
