Test C: The Transmission Control Switch (TCS) Is Inoperative
Test C: The Transmission Control Switch (TCS) Is Inoperative
PINPOINT TEST C: THE TRANSMISSION CONTROL SWITCH IS INOPERATIVE

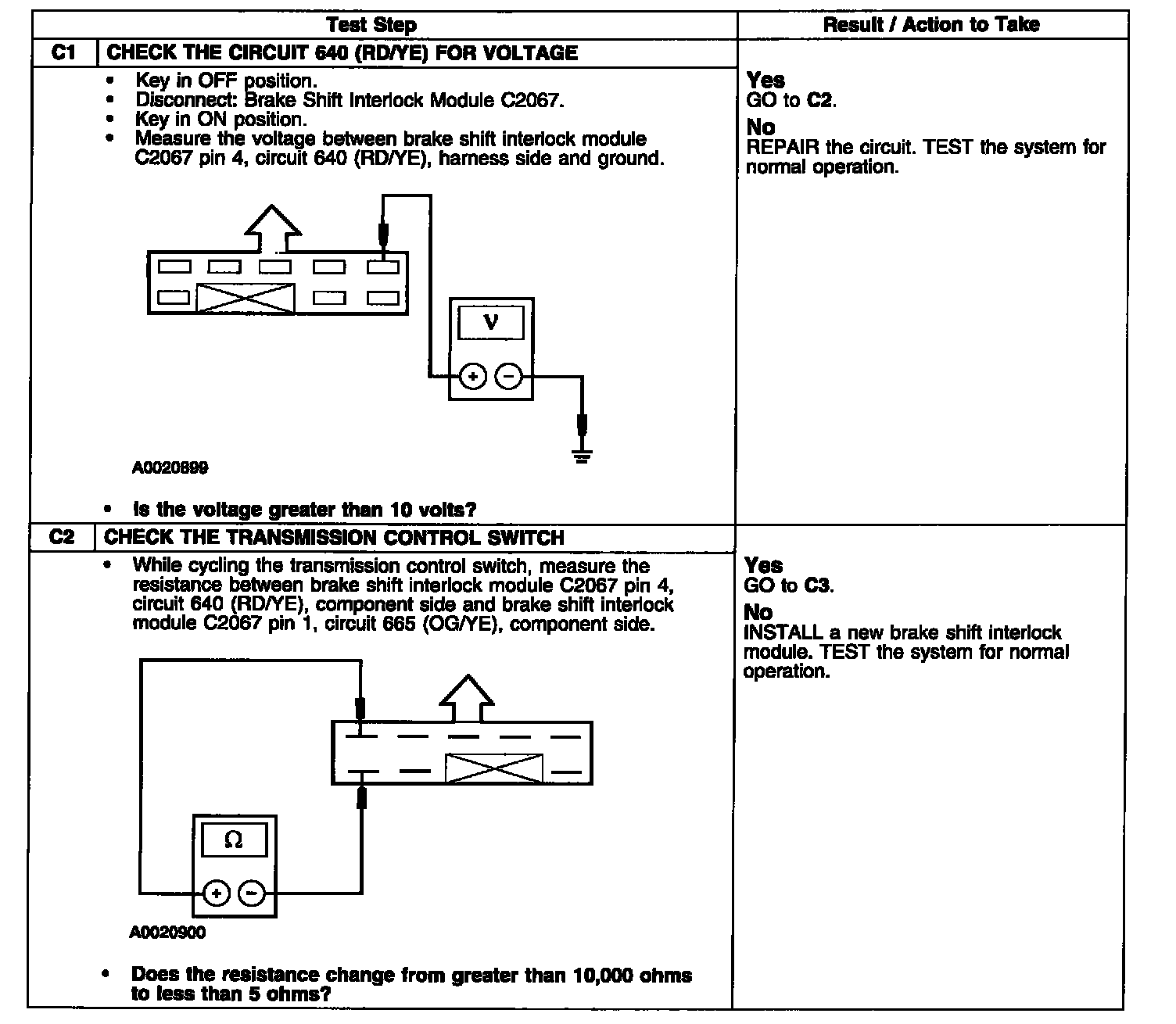

Test C1-C2:

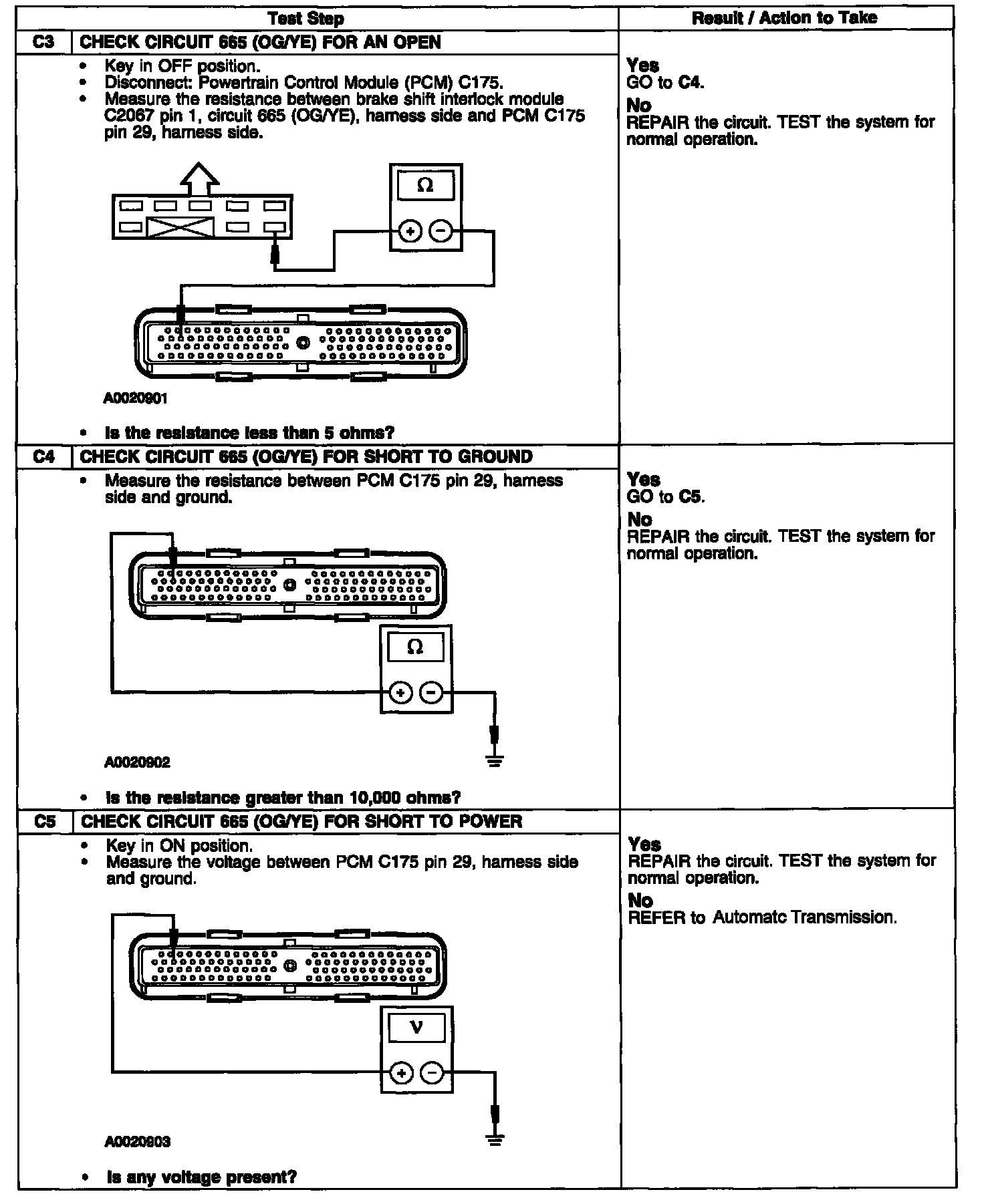

Test C3-C5:
