Test B: The Shift Control Is Out of Correct Gear Relationship
Test B: The Shift Control Is Out of Correct Gear Relationship
PINPOINT TEST B: THE SHIFT CONTROL IS OUT OF CORRECT GEAR RELATIONSHIP

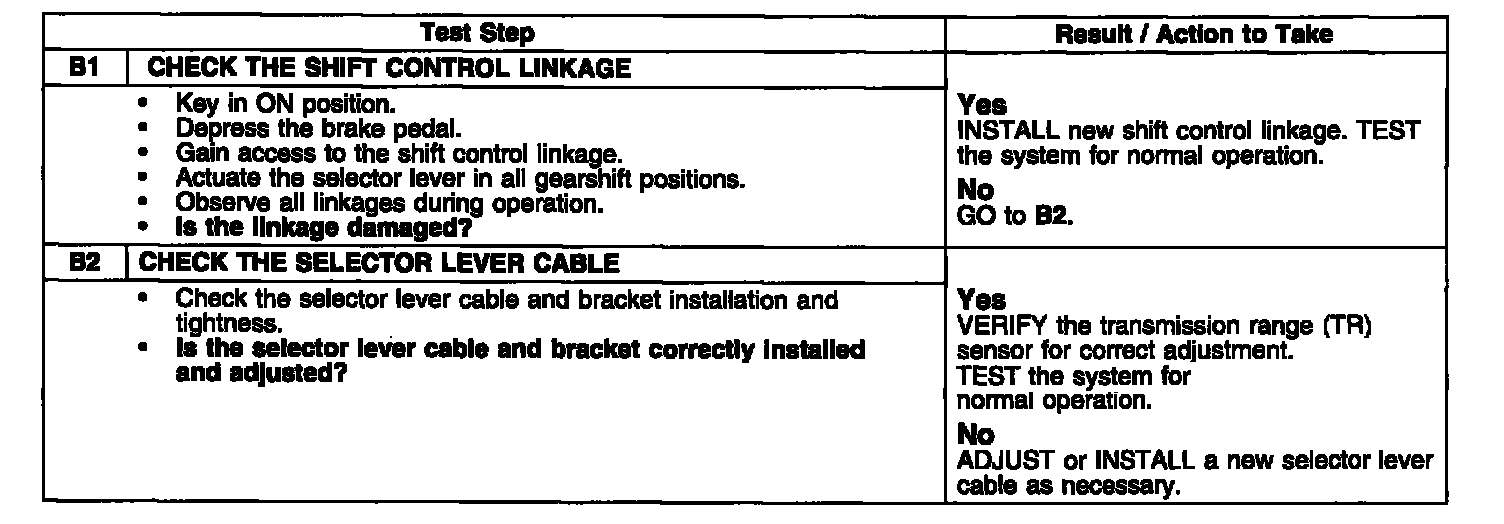

Test B1-B2:
