CD4E Automatic Transmission
>>
Test H: Solenoid Mechanical Failure
Test H: Solenoid Mechanical Failure
PINPOINT TEST H:
SOLENOID
MECHANICAL FAILURE

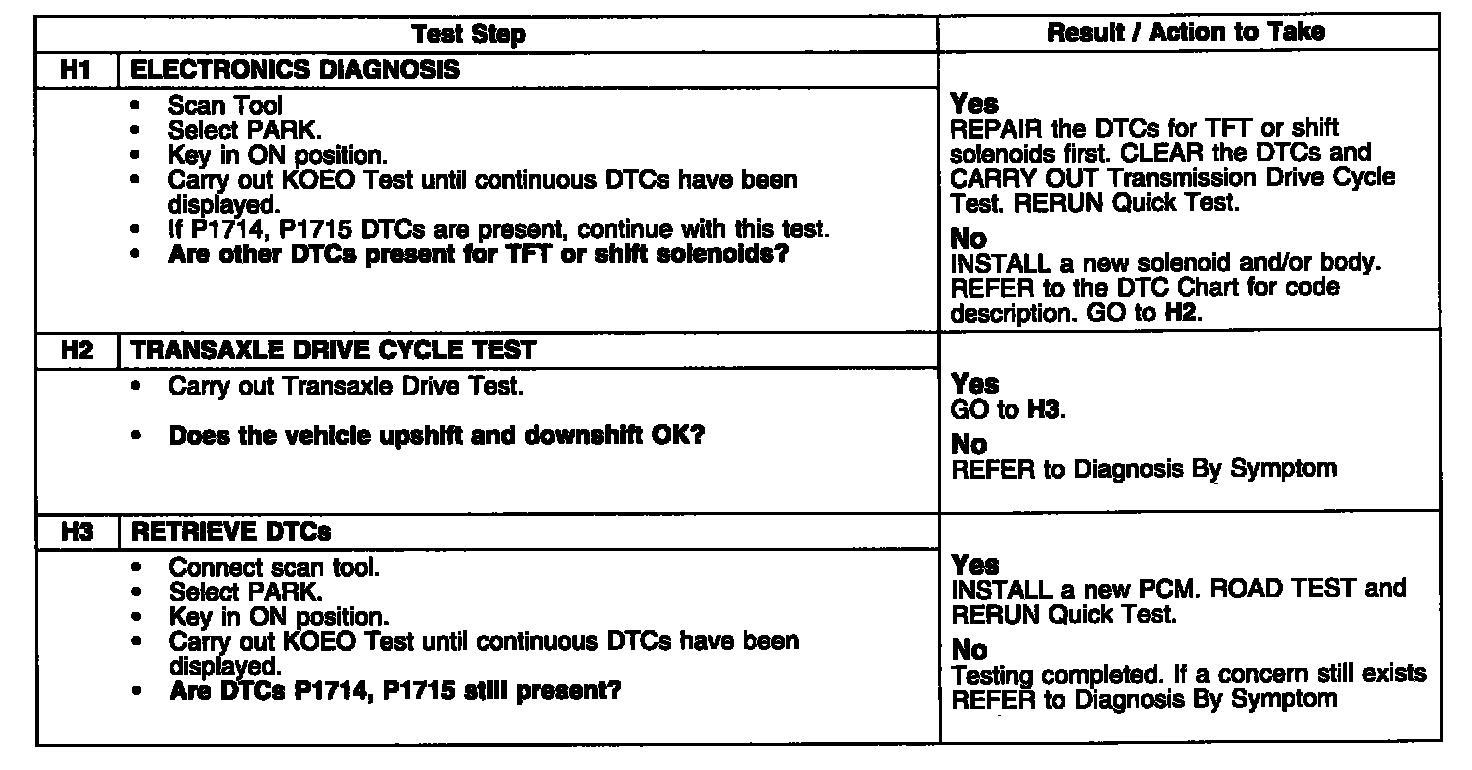

Test H1-H3:
NOTE:
Repair all other DTCs before repairing the following DTCs: P1714, P1715
