Test F: Turbine/Output Shaft (TSS/OSS) Speed Sensors

PINPOINT TEST F: TURBINE SHAFT SPEED (TSS) SENSOR AND OUTPUT SHAFT SPEED (OSS) SENSOR

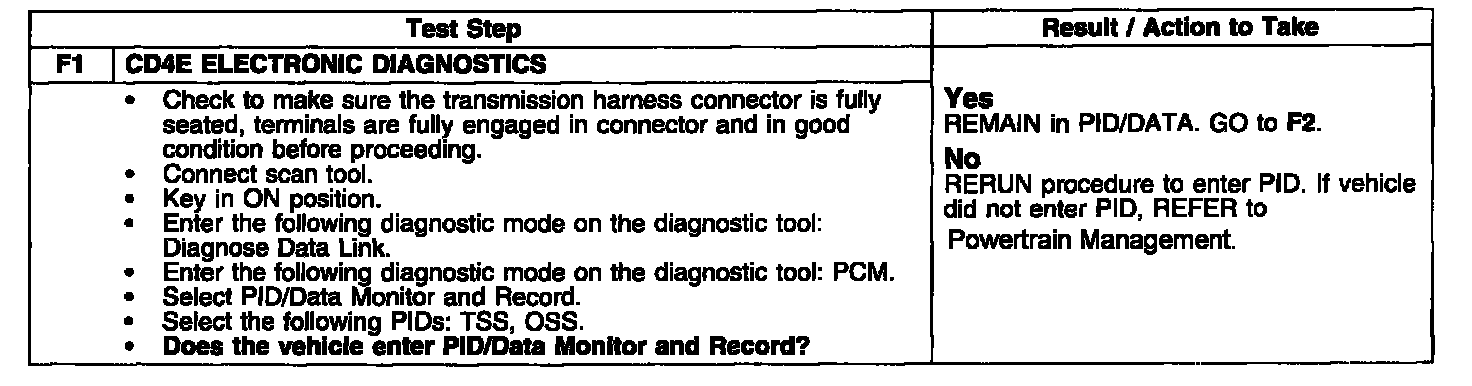

Test F1:

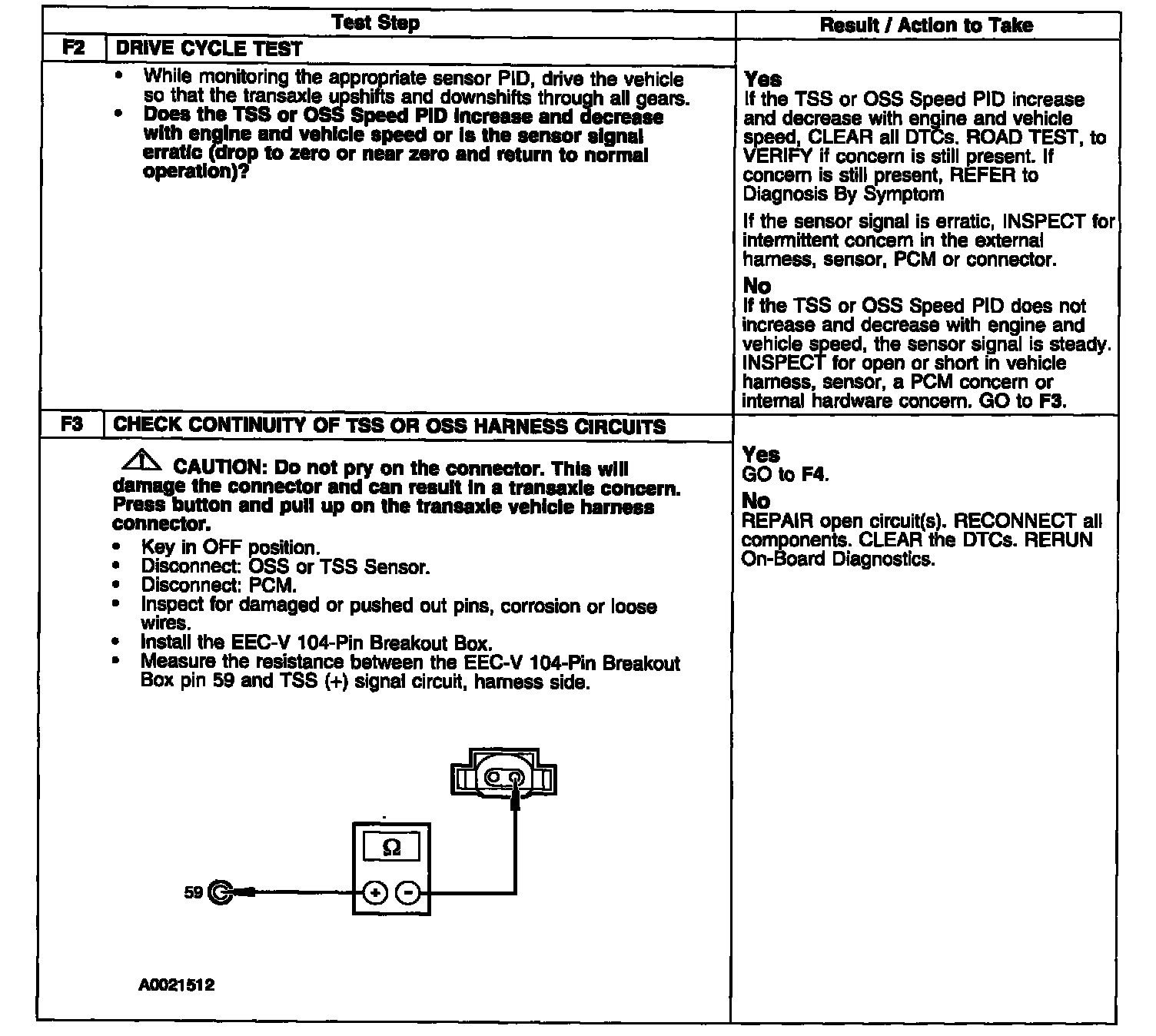

Test F2-F3:

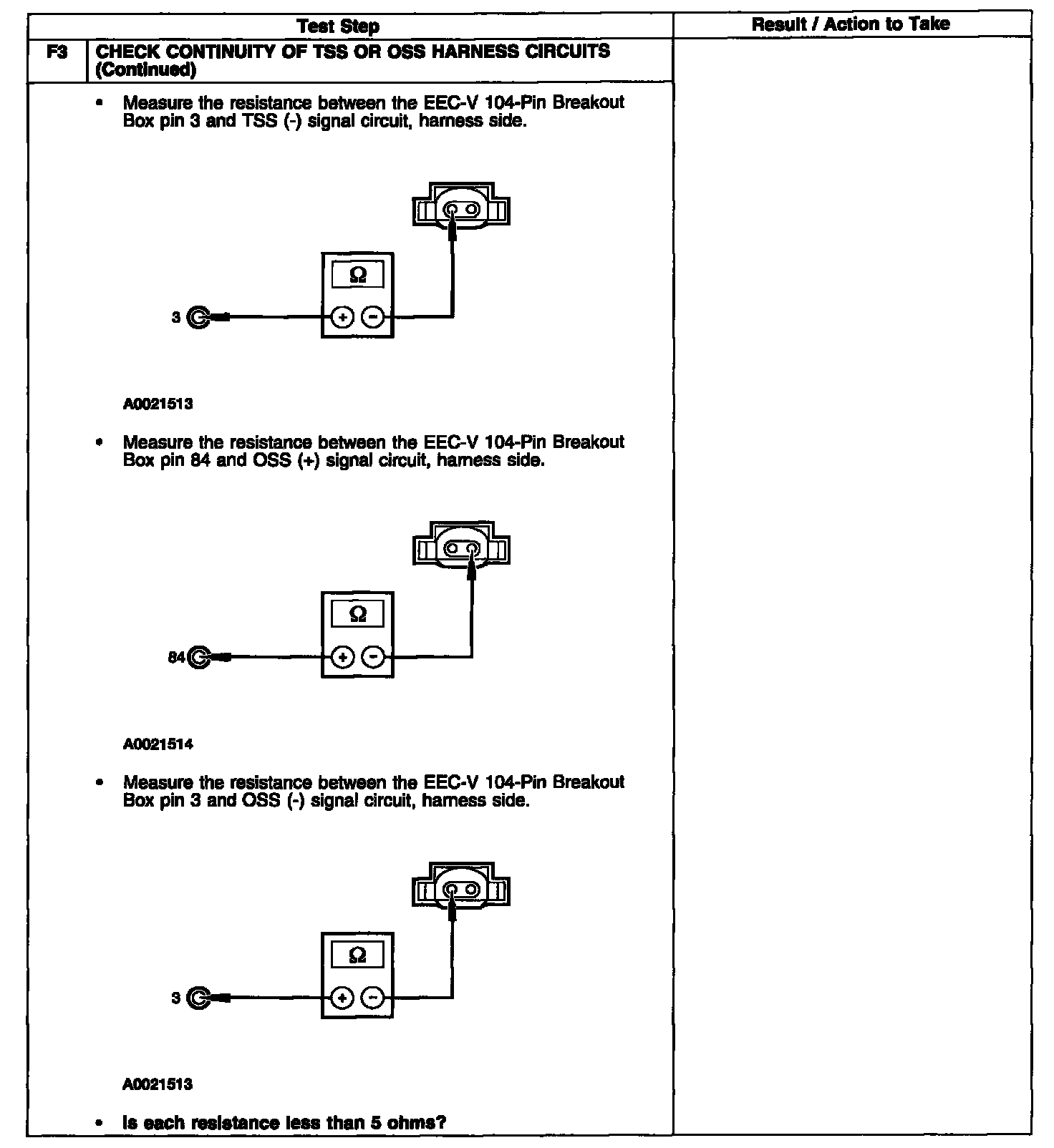

Test F3 Continued:

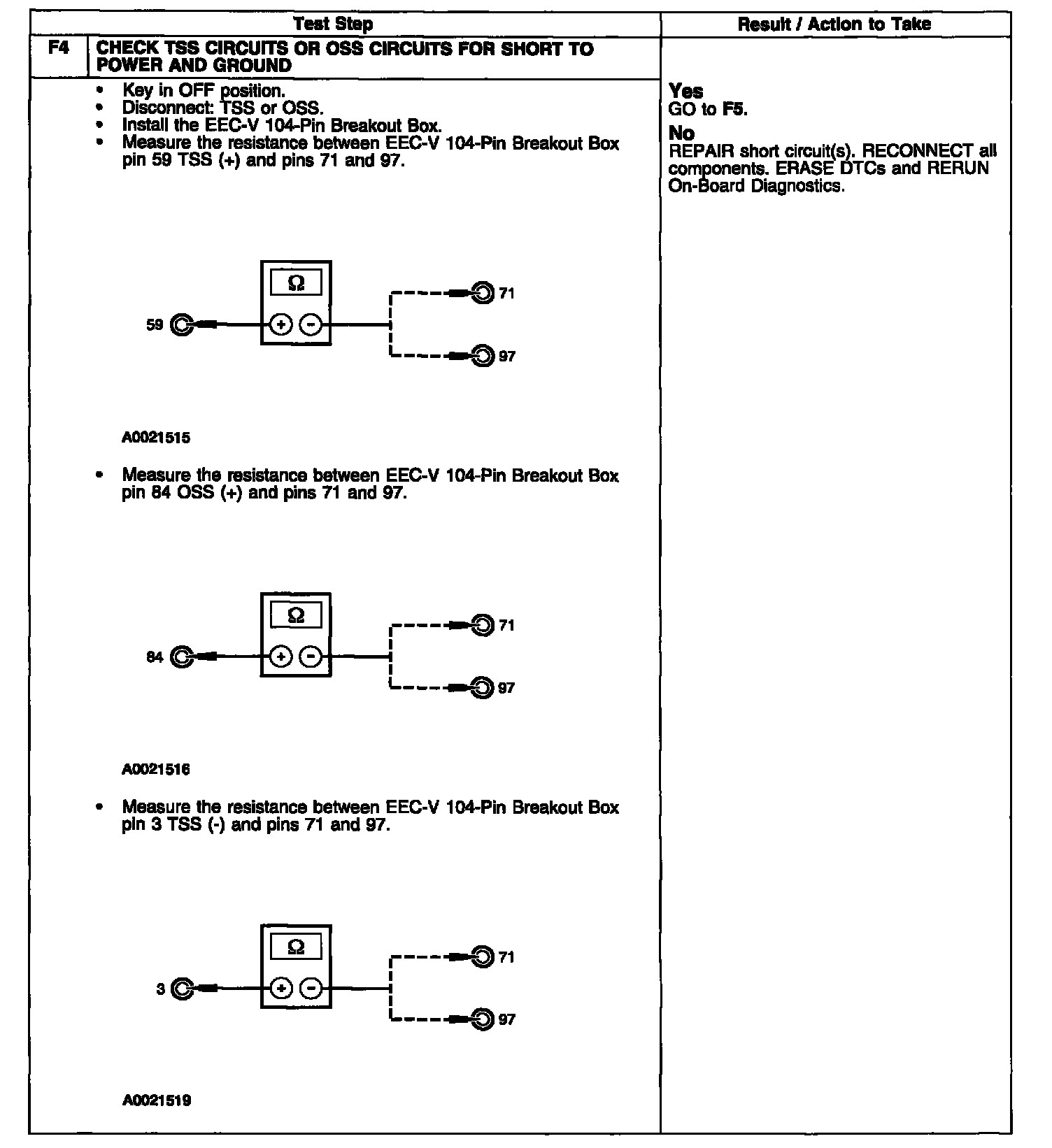

Test F4:

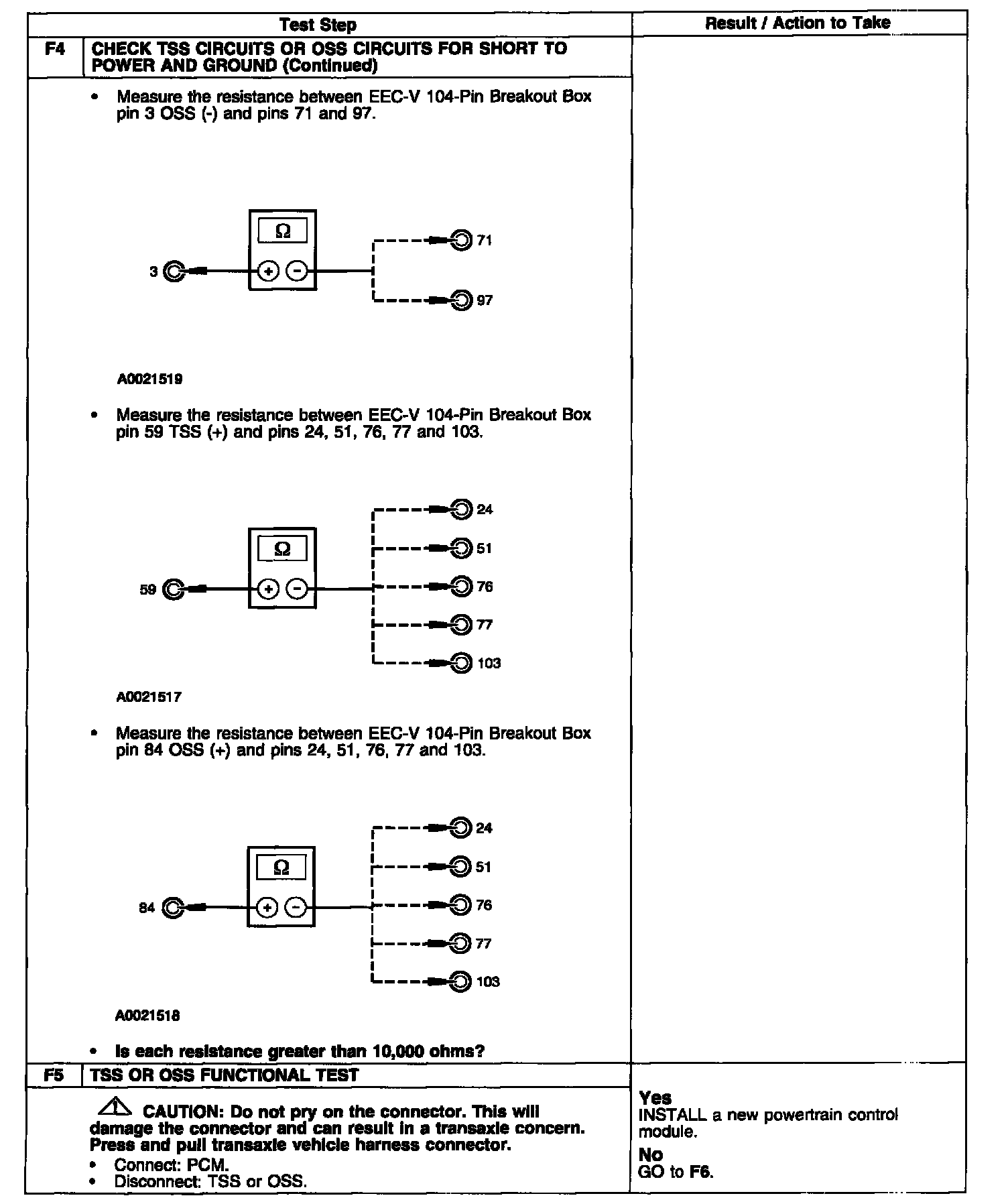

Test F4-F5:

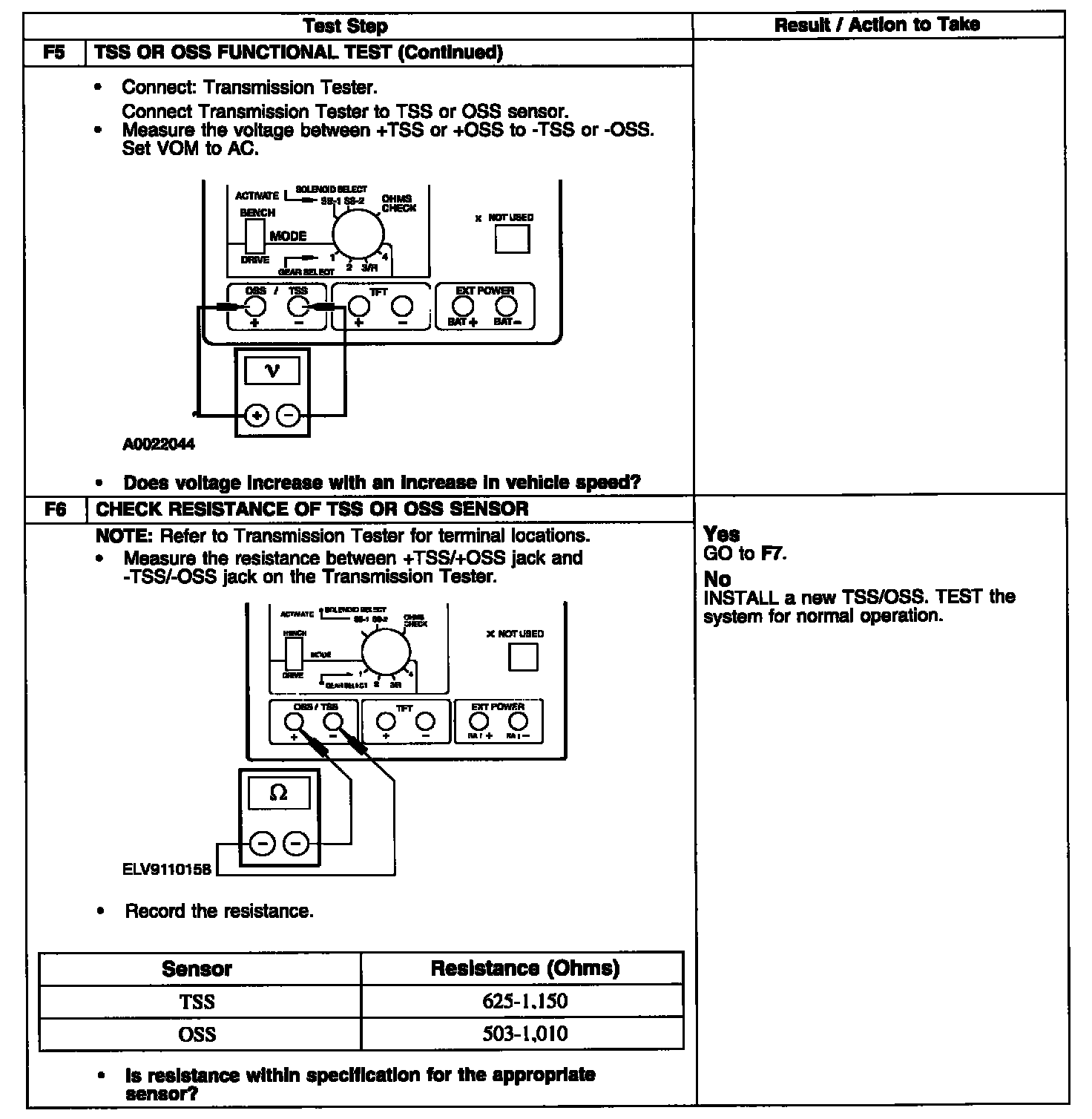

Test F5-F6:

Test F7-F10:

NOTE: Refer to the OSS-Sensor or TSS-Sensor Connector illustration.
