Test E: Electronic Pressure Control (EPC) Solenoid

PINPOINT TEST E: ELECTRONIC PRESSURE CONTROL (EPC) SOLENOID

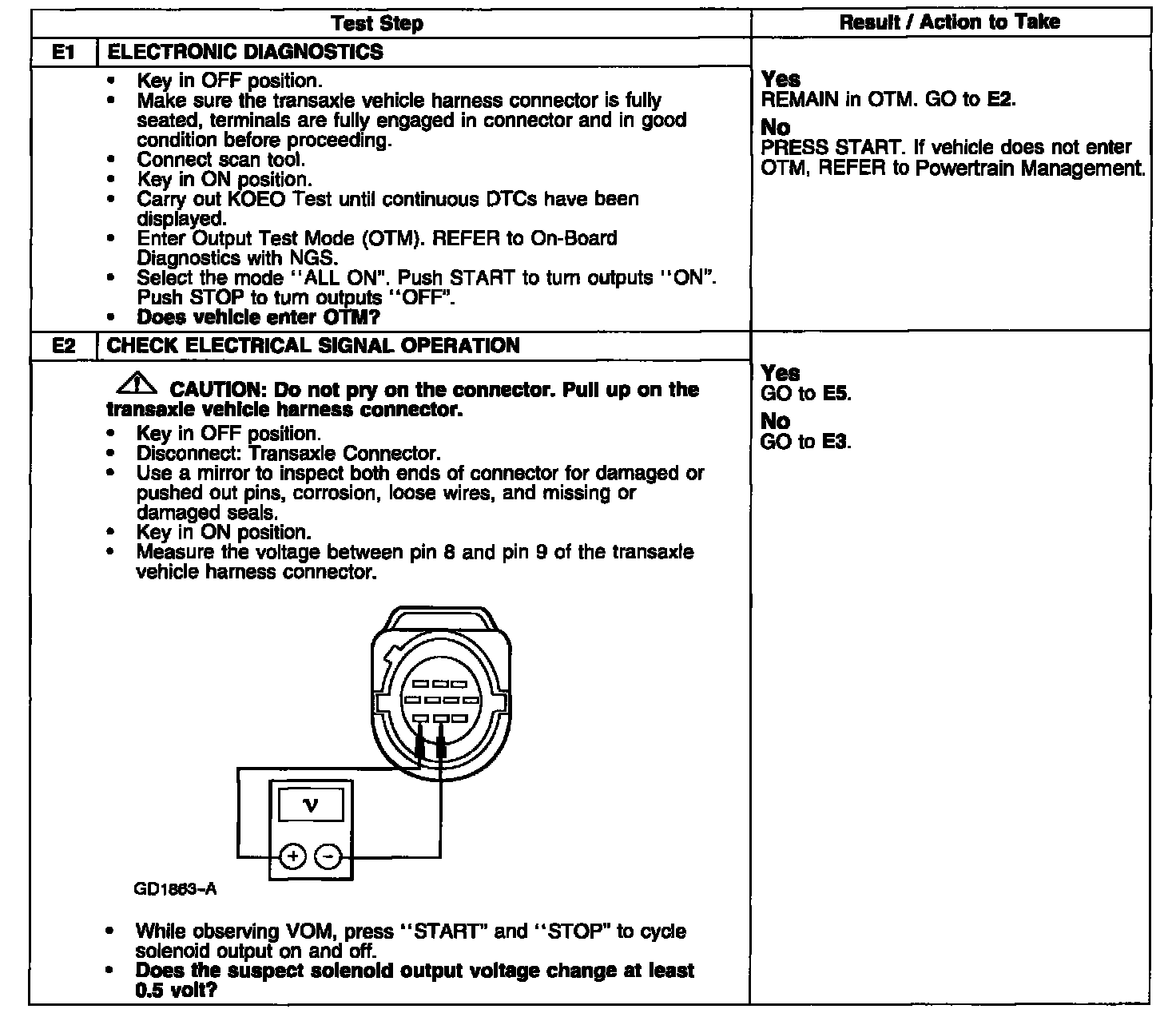

Test E1-E2:

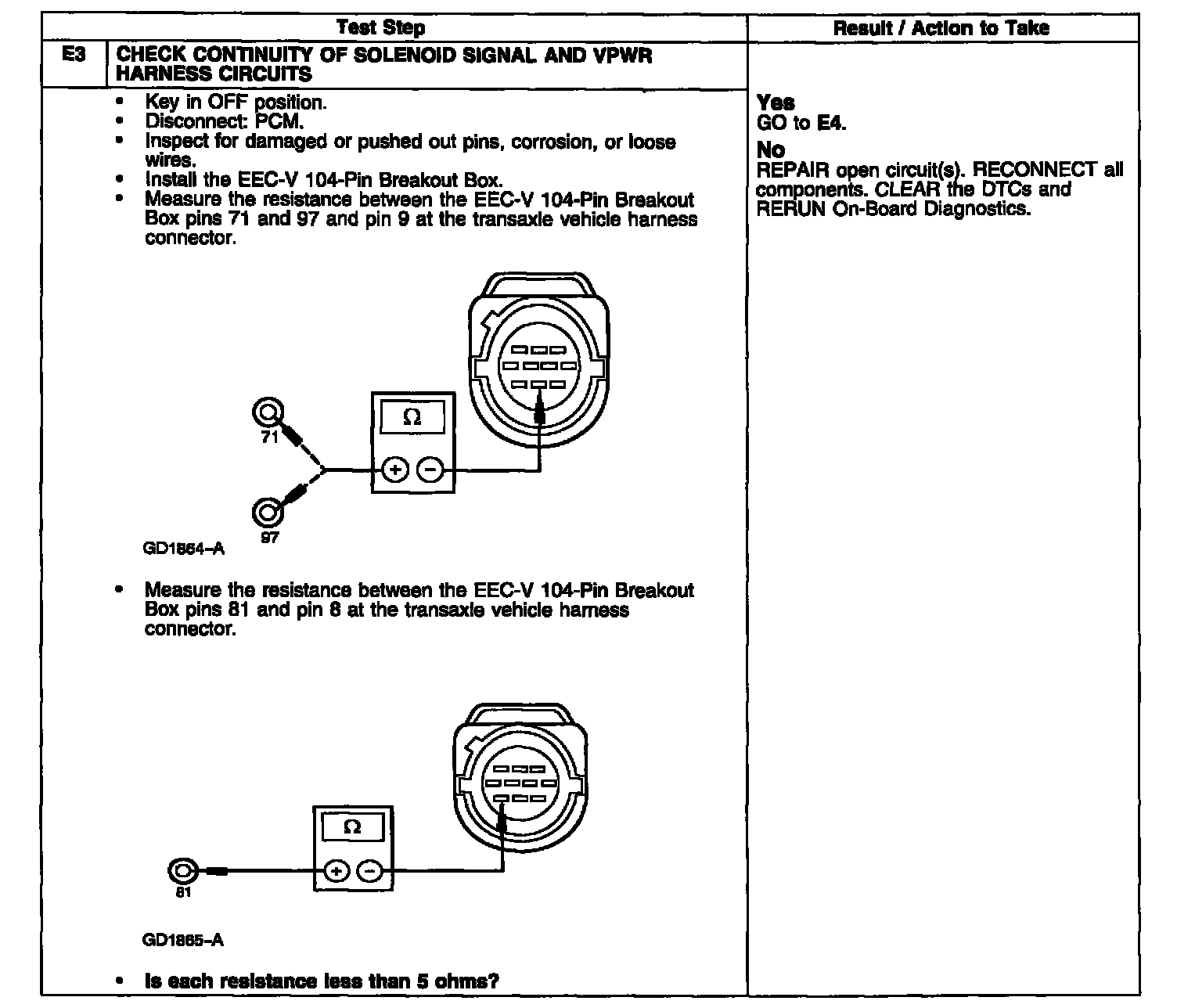

Test E3:

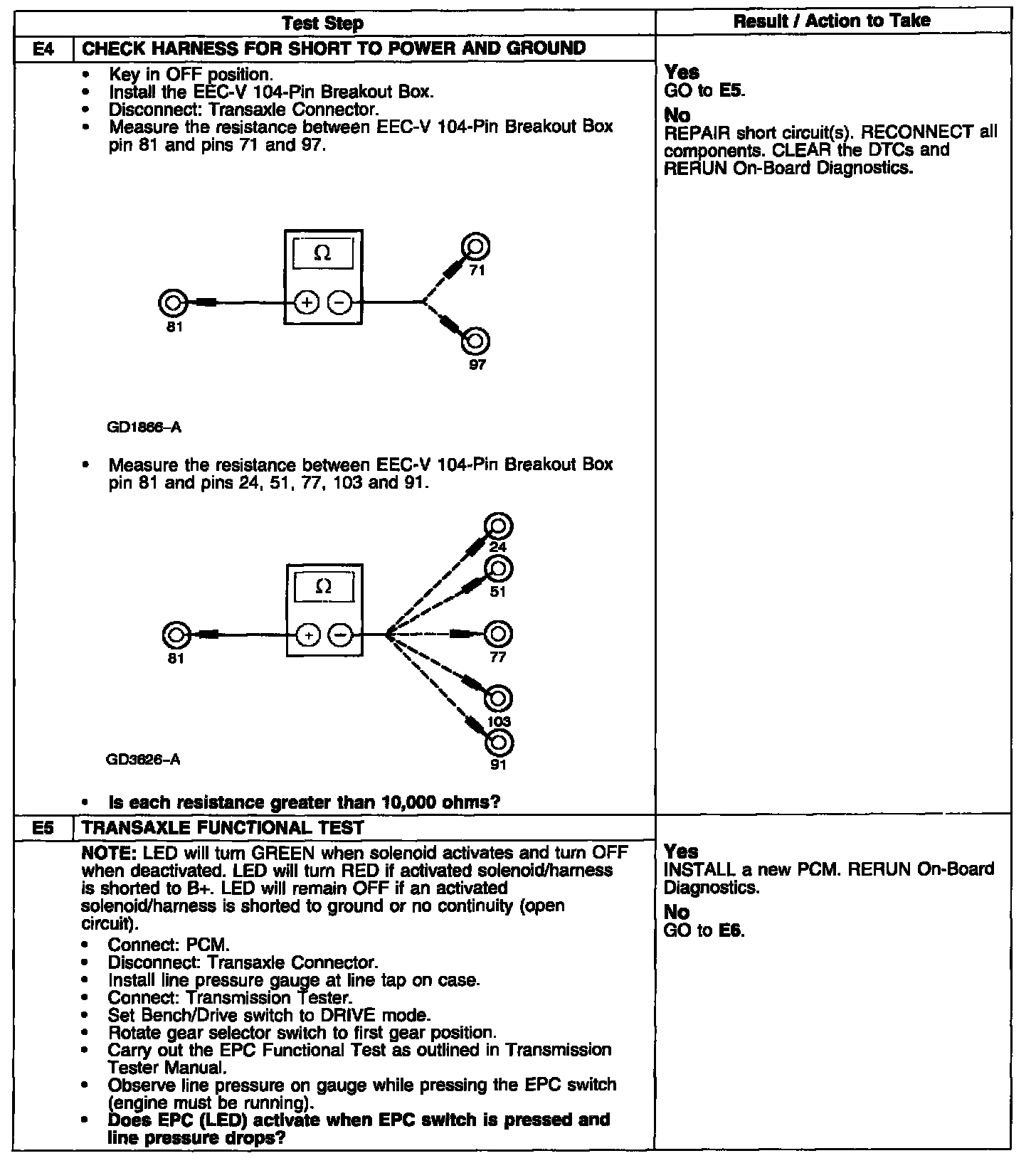

Test E4-E5:

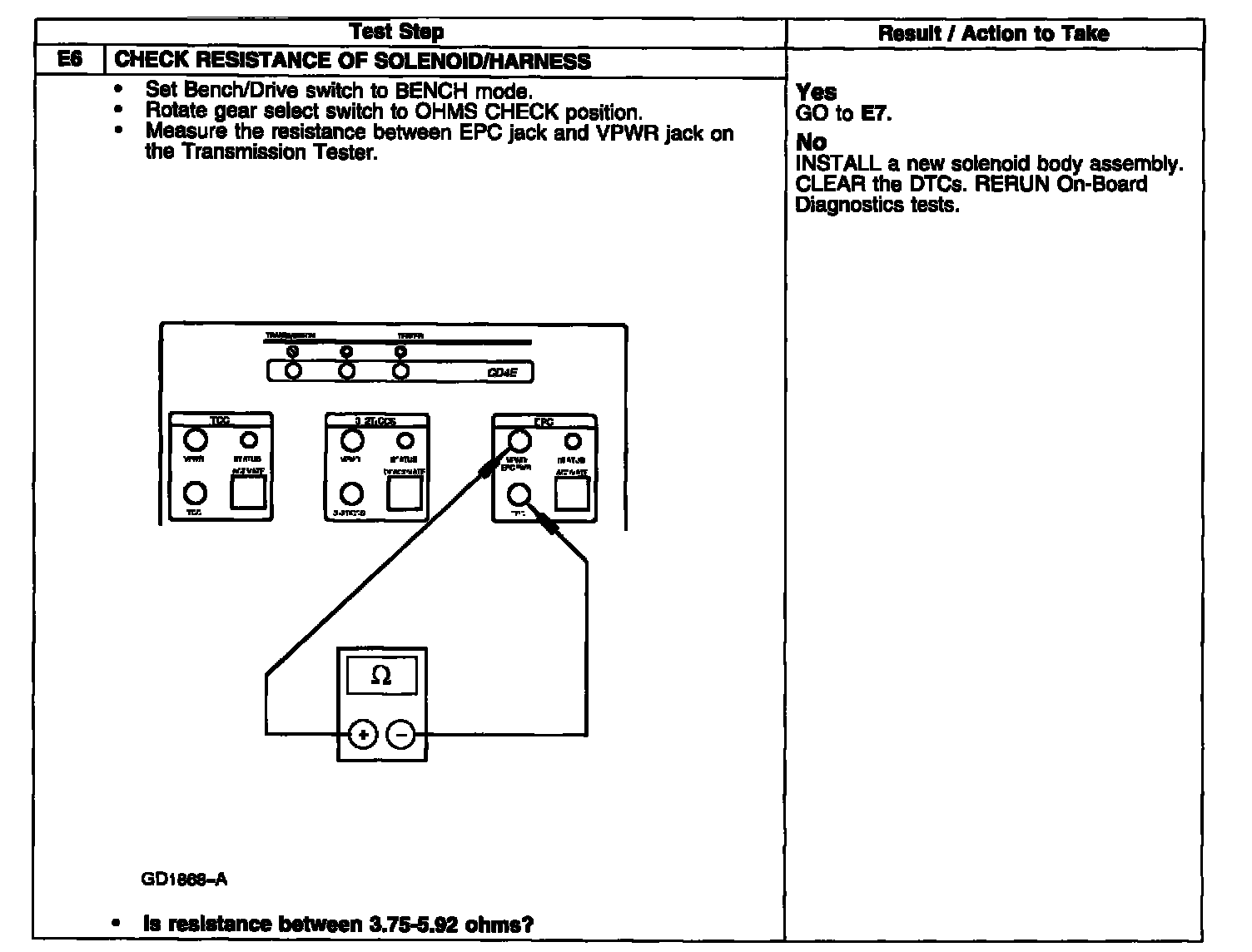

Test E6:

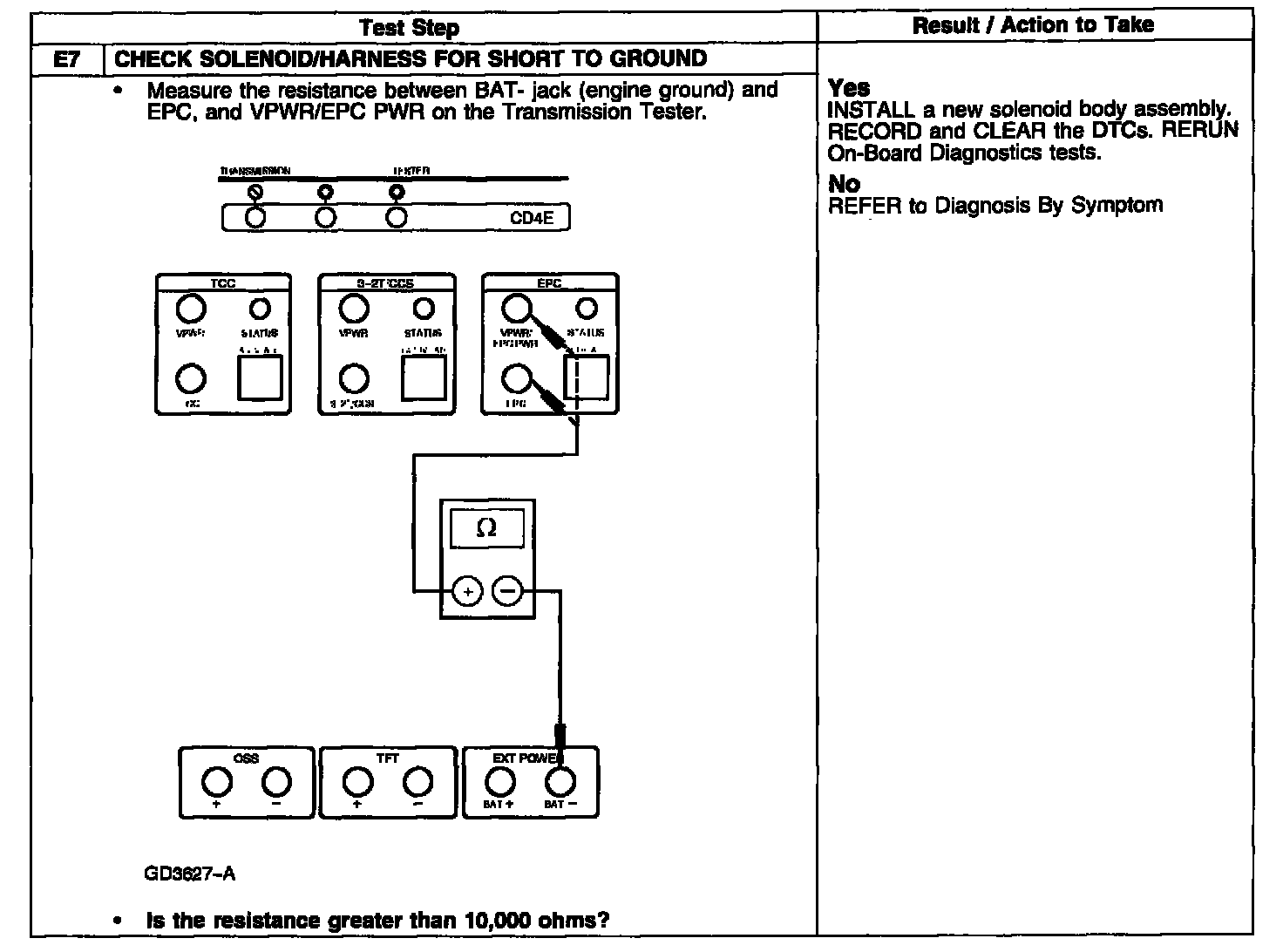

Test E7:
