Test D: Transmission Range (TR) Sensor

PINPOINT TEST D: TRANSMISSION RANGE (TR) SENSOR

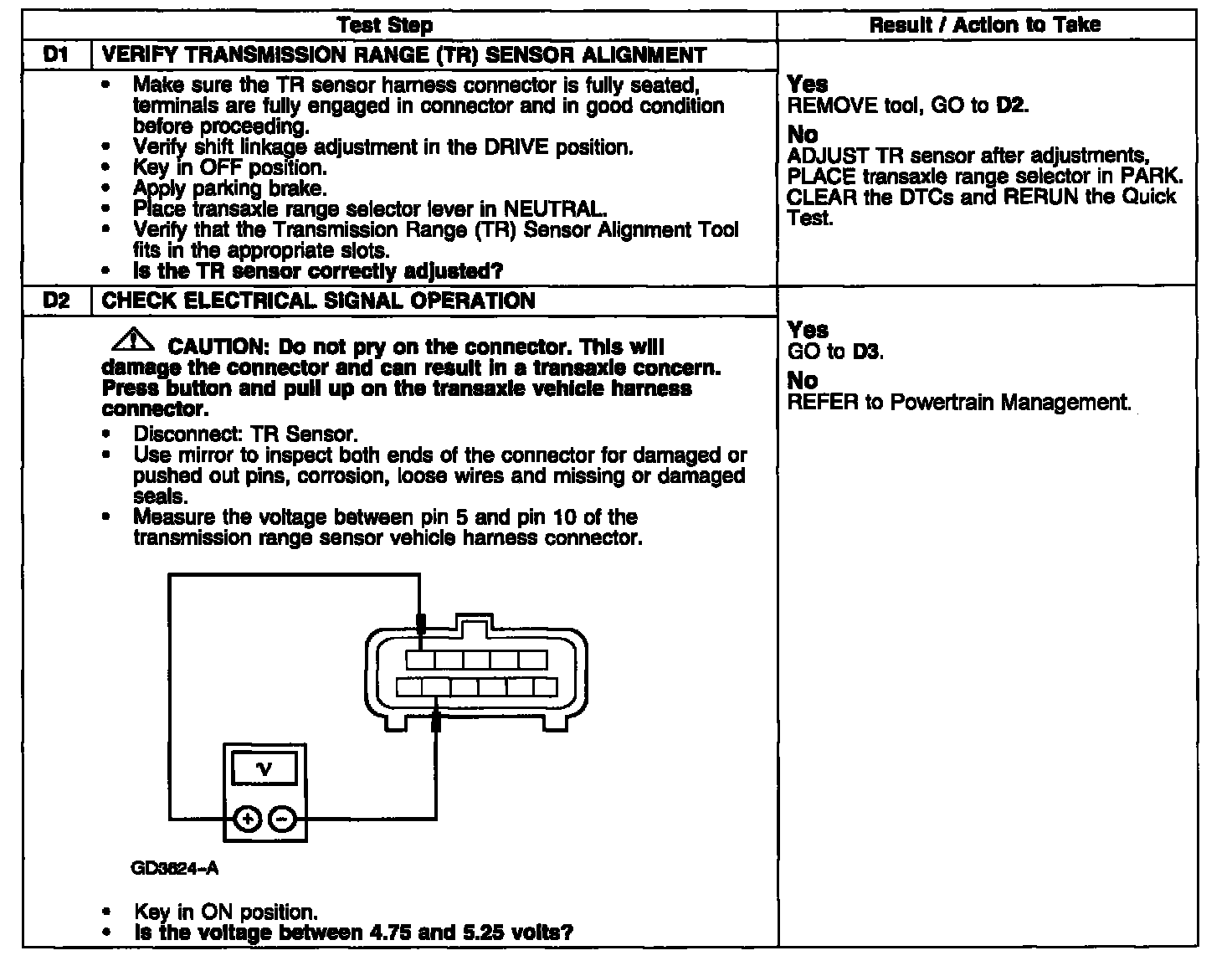

Test D1-D2:




Test D3:

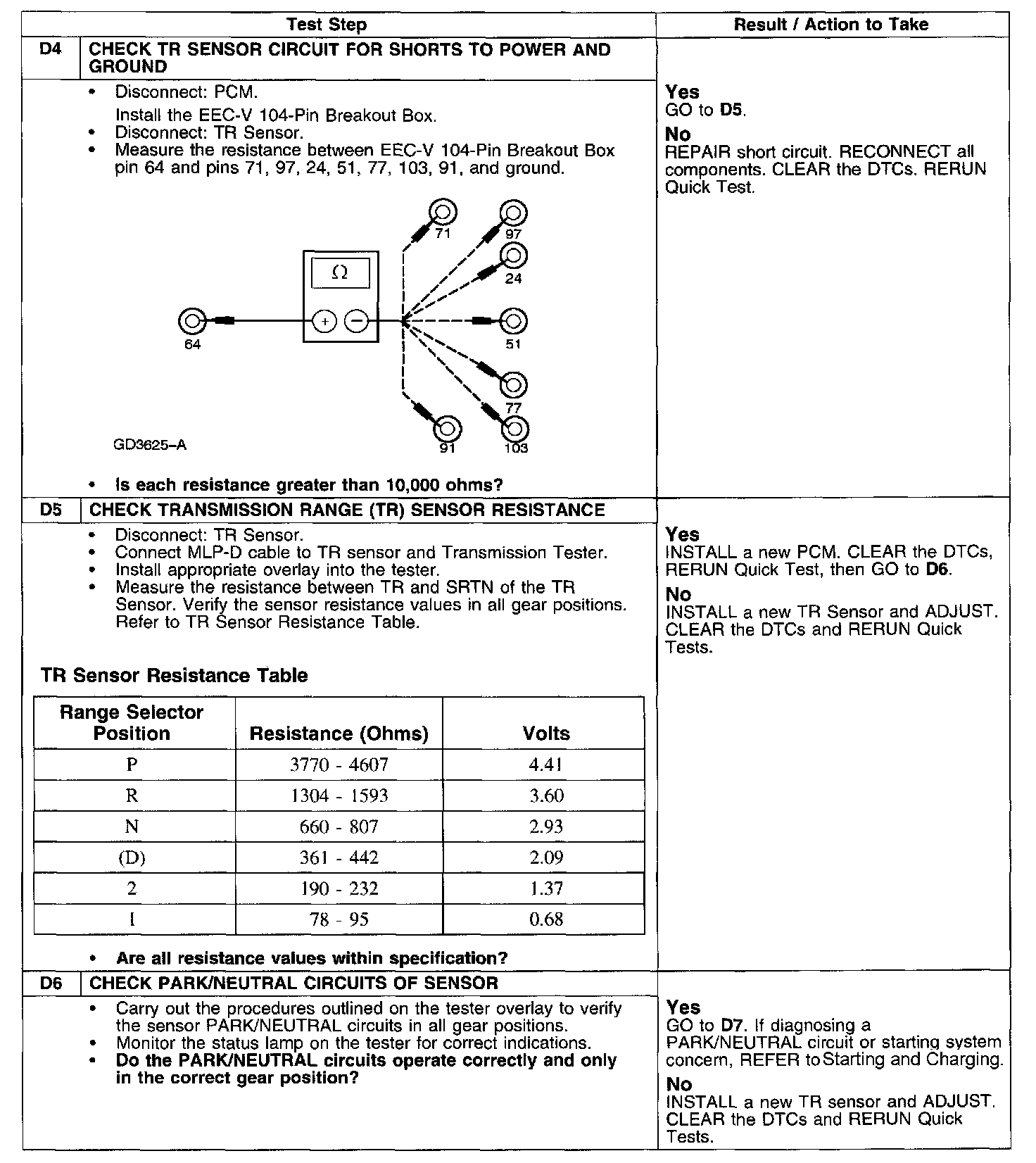

Test D4-D6:

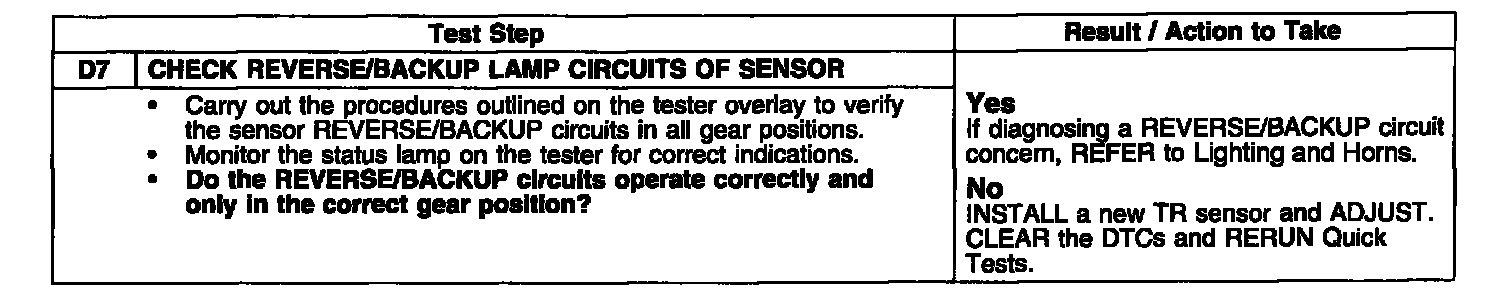

Test D7:
