Test C: Torque Converter Clutch (TCC) Solenoid

PINPOINT TEST C: TORQUE CONVERTER CLUTCH (TCC) SOLENOID

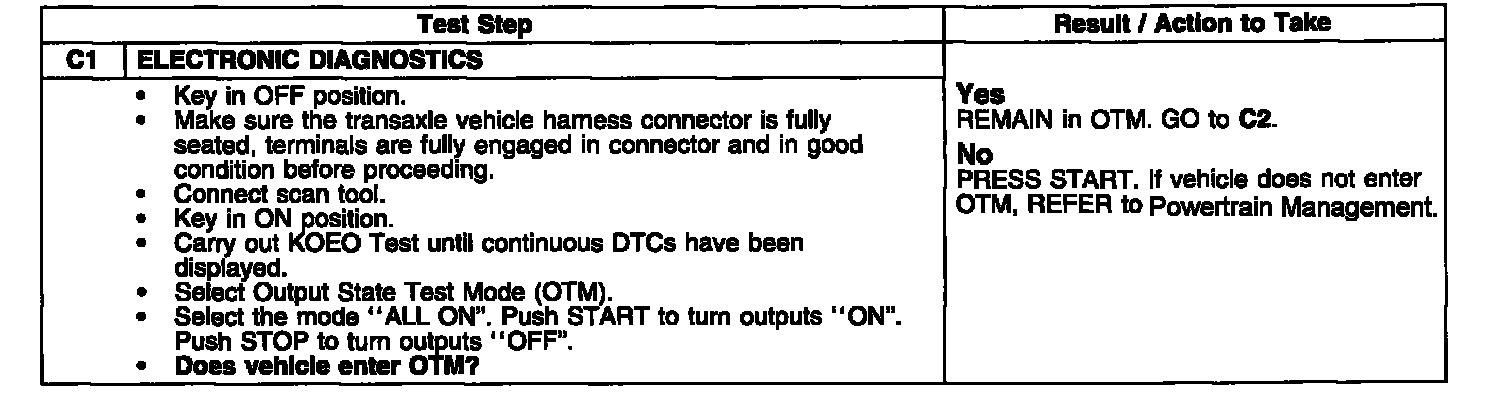

Test C1:

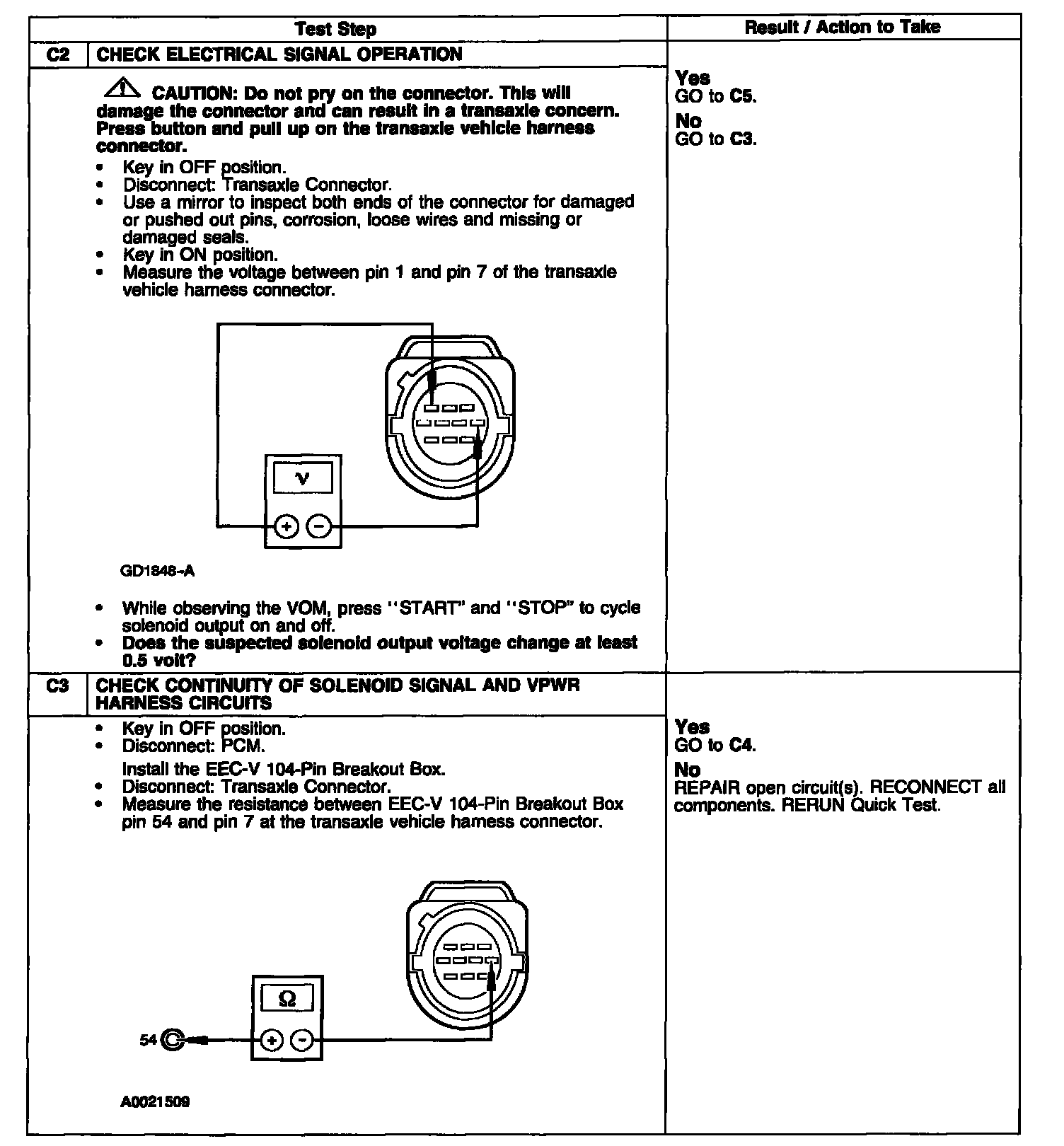

Test C2-C3:

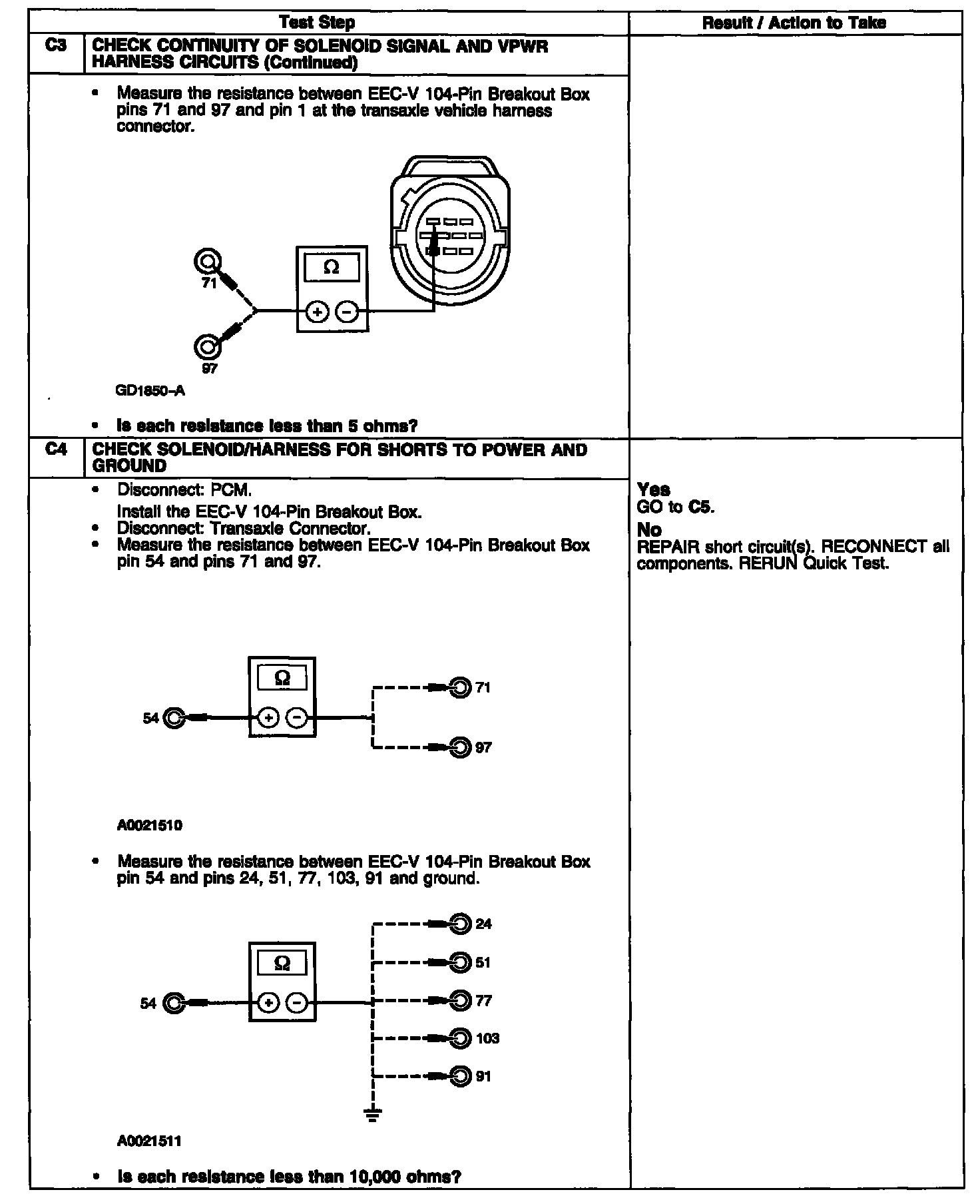

Test C3-C4:

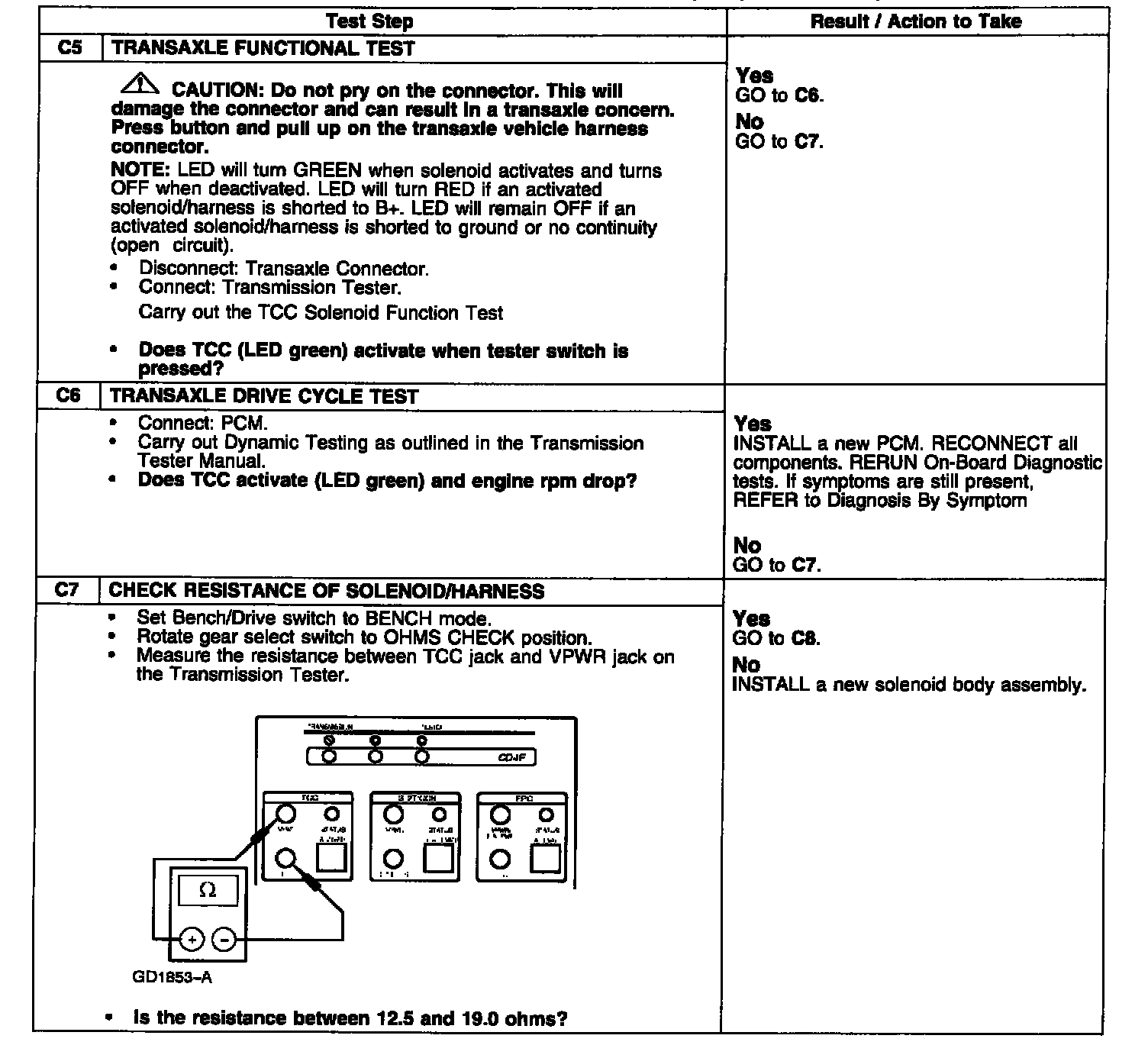

Test C5-C7:

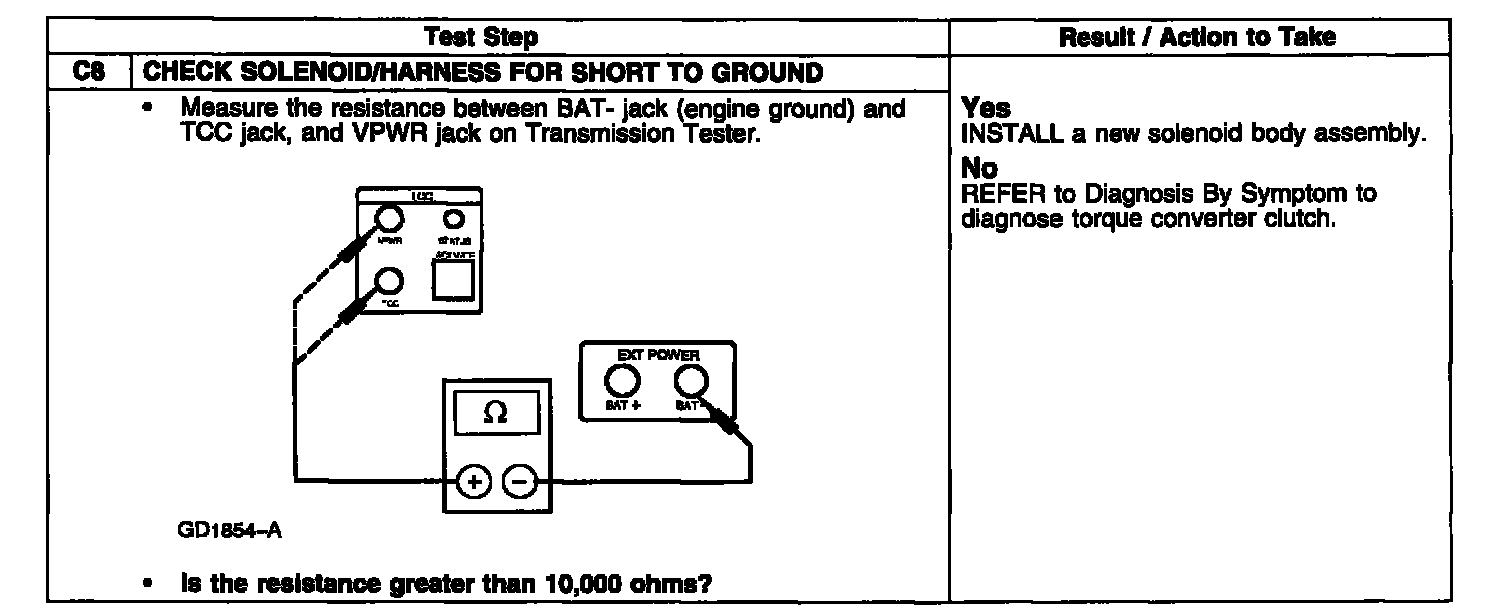

Test C8:

NOTE: Refer to the Transaxle Vehicle Harness Connector illustration.
