CD4E Automatic Transmission
>>
Shift Solenoid Diagnostics
>>

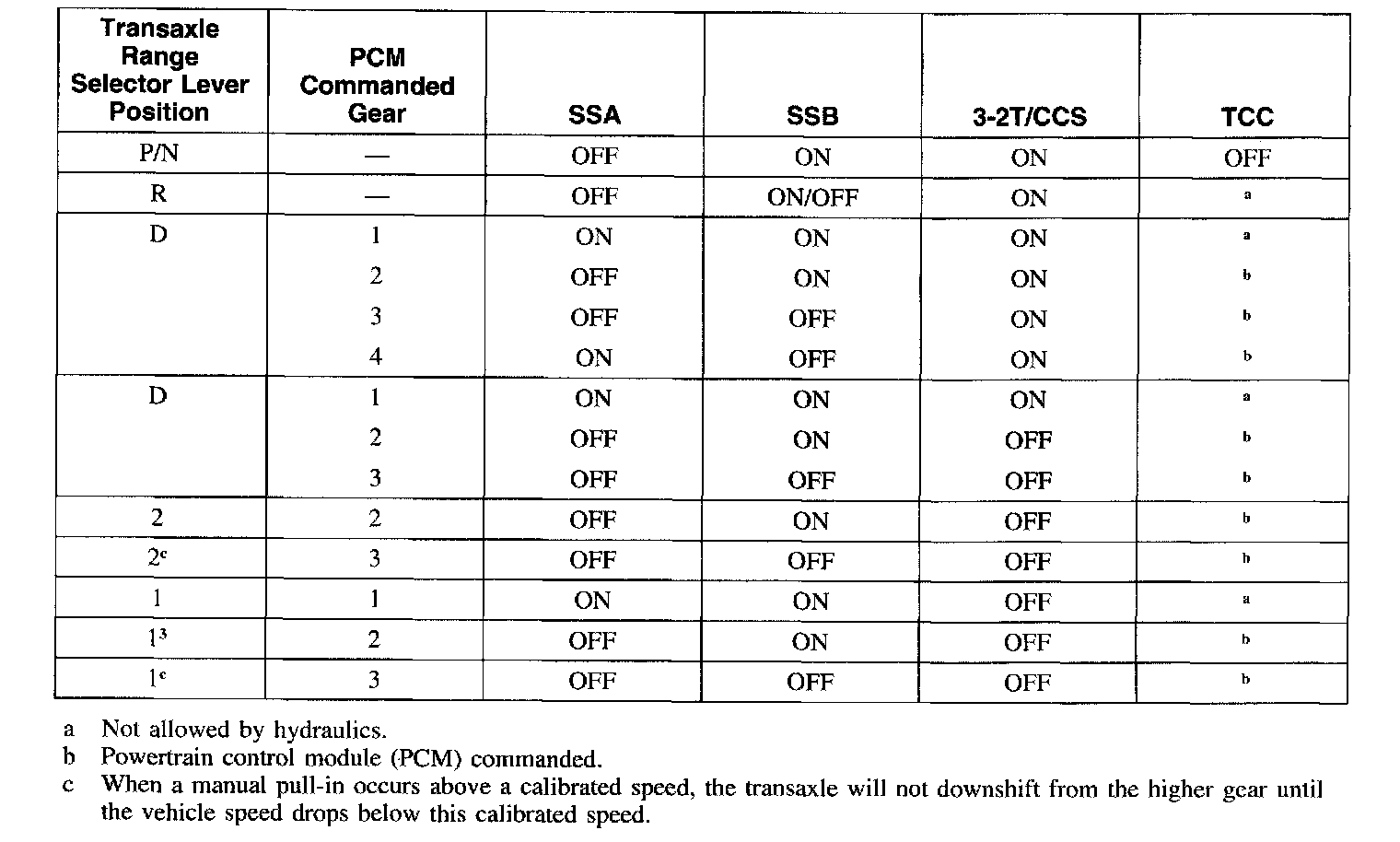

Solenoid Operation Chart
Solenoid Operation Chart
Pinpoint Tests - Non OSC Equipped Vehicles
SOLENOID
OPERATION CHART
