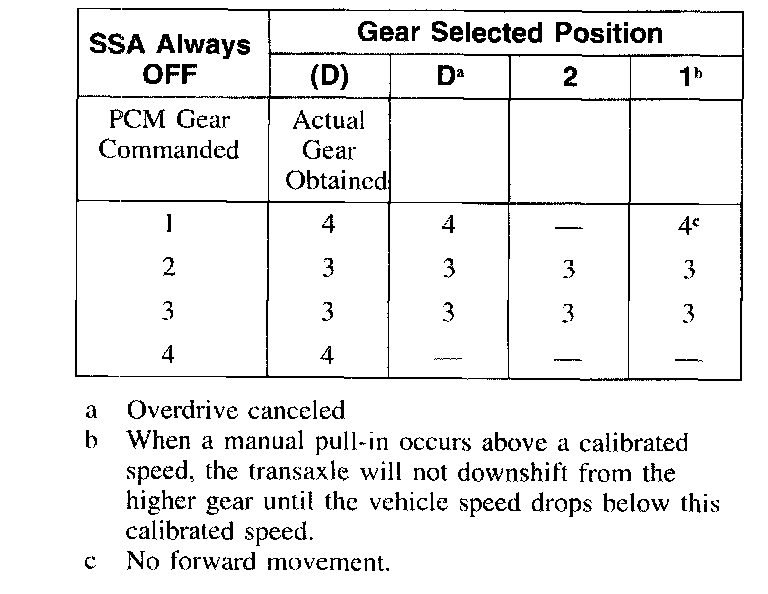

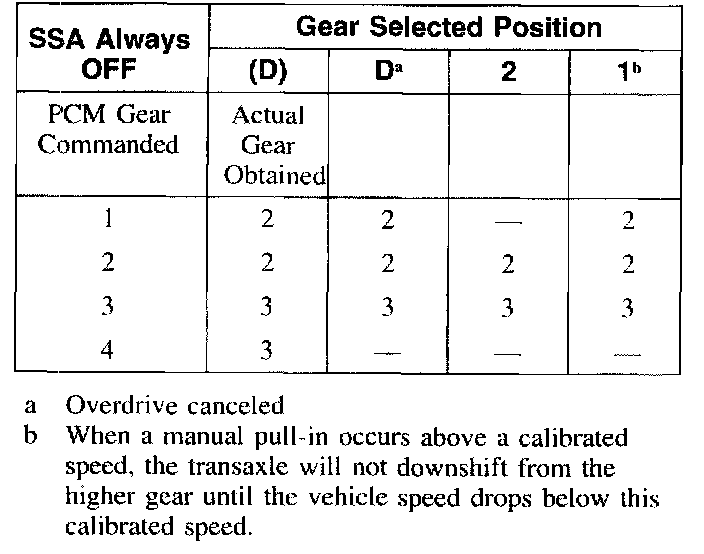

Shift Solenoid Failure Mode Chart "Always Off"

Shift Solenoid Failure Mode Chart "Always OFF"








Failed OFF due to PCM and/or vehicle wiring concerns, and/or solenoid electrically stuck off, and/or hydraulically or mechanically stuck off.
