Shifter A/T: Service and Repair

Selector Lever

Removal and Installation

NOTE: LH drive is shown, RH drive is similar.

1. Remove the clockspring.
2. Remove the multifunction switch.
3. Remove the windshield wiper/washer switch.

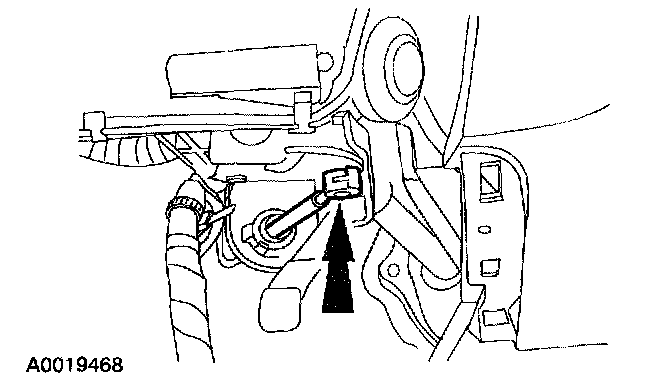

4. Disconnect the gearshift cable.

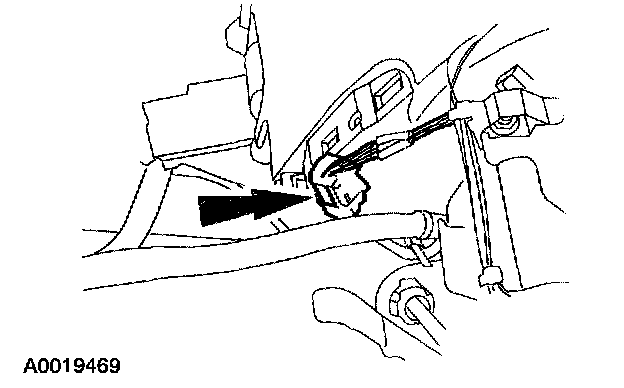

5. Disconnect the electrical connector.

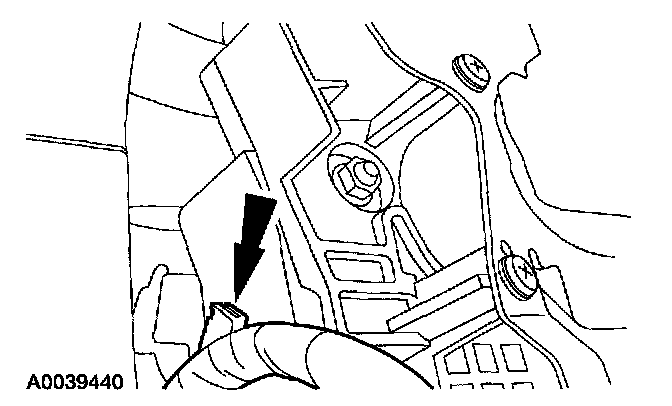

6. Disconnect the wiring harness from the gear shifter assembly.

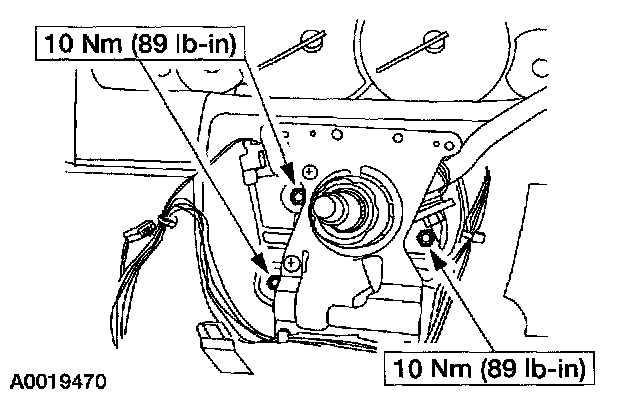

7. Remove the bolts and the gearshift lever assembly.
8. To install, reverse the removal procedure.
