Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor

Removal
1. Raise and support the vehicle.
2. Remove the LH front wheel.

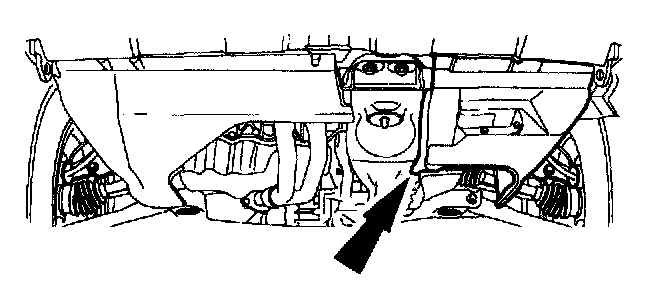

3. Remove the splash shield.

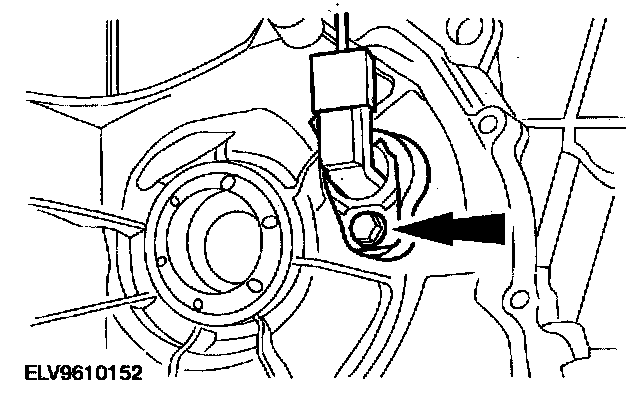

4. Remove the Output Shaft Speed (OSS) sensor.
^ Disconnect the OSS sensor electrical connector.
^ Remove the bolt.
^ Inspect the OSS bore.

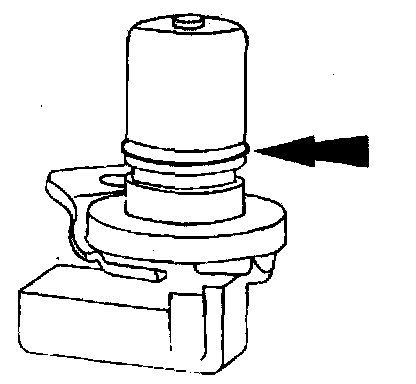

5. Inspect the O-ring seal for nicks or cuts. Install a new seal as necessary.

Installation





1. NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.

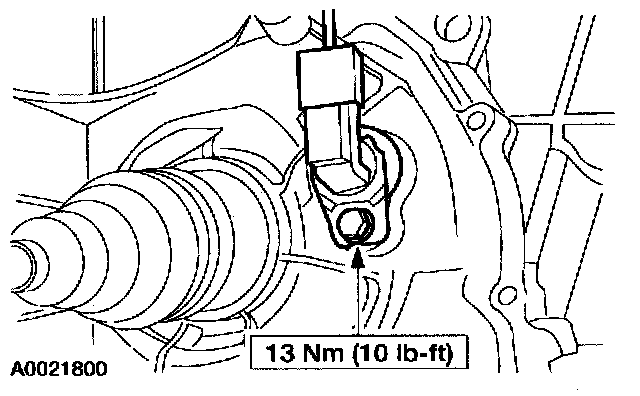

Install the OSS sensor.
^ Connect the OSS sensor electrical connector.





2. Install the splash shield.
3. Install the LH front wheel.
4. Lower vehicle.
5. Check the transmission fluid level, add fluid as necessary using MERCON(R) V Automatic Transmission Fluid XT-5-QM or equivalent meeting MERCON(R) V specification.
6. Start the engine and move the transaxle range selector lever through all gear positions.
