Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Application and ID

Automatic Transmission/Transaxle: Application and ID

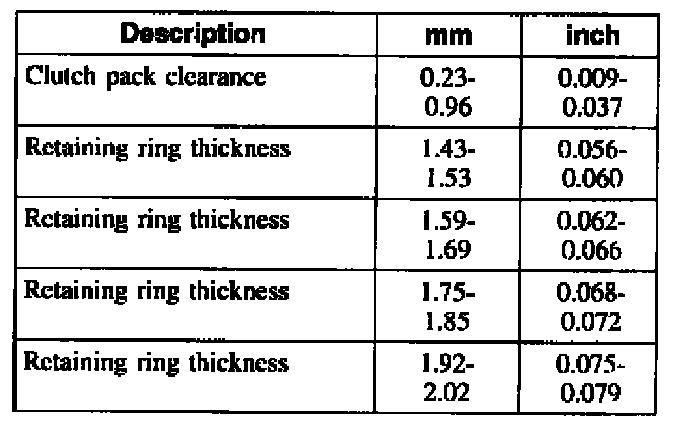

Forward/Coast Clutch Pack

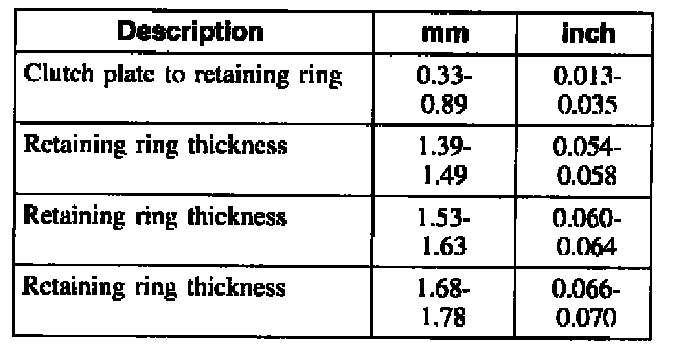

Reverse Clutch Pack

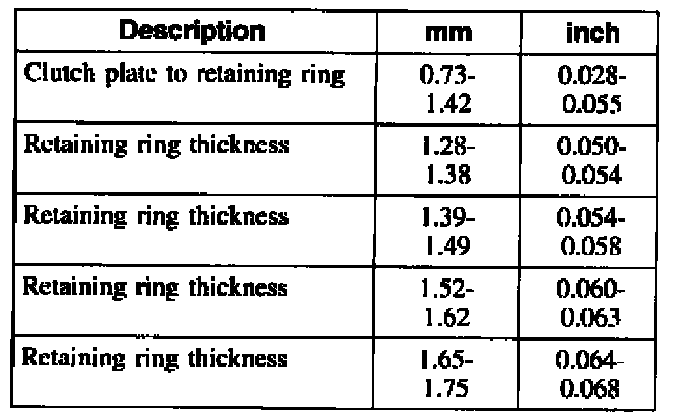

Direct Clutch Pack

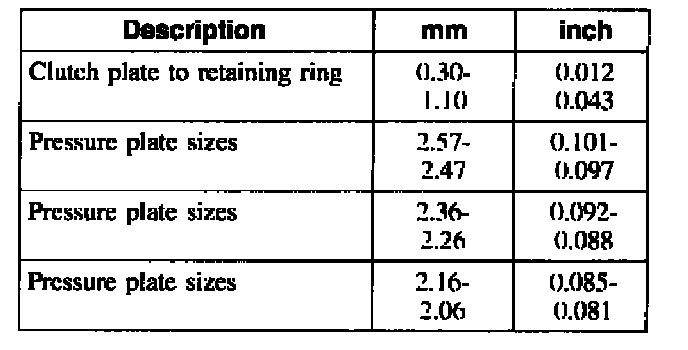

Low/Reverse Clutch Pack
