Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Pinpoint Tests >> Test G

Test G

PINPOINT TEST G: VIBRATION

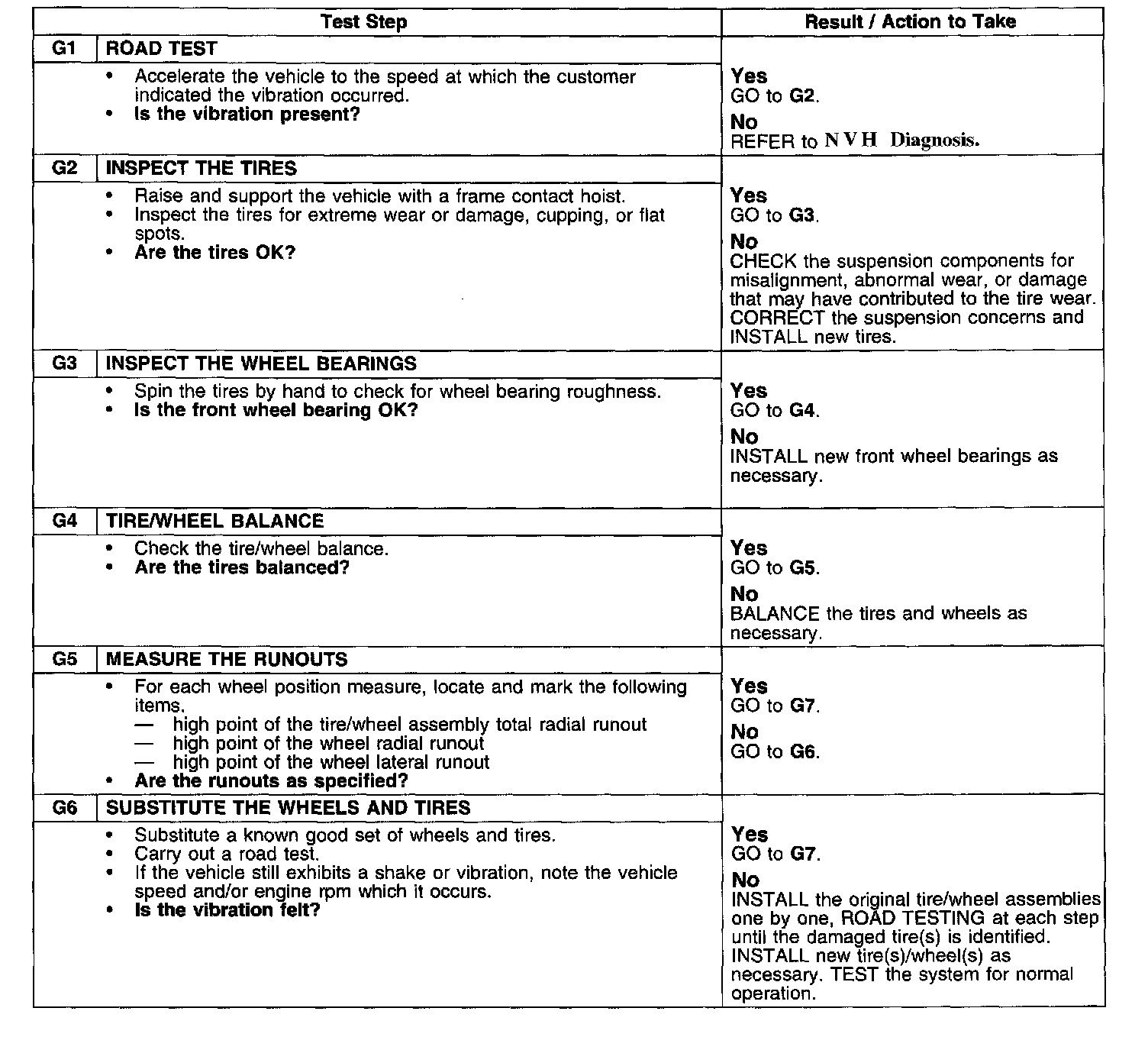

Test G1-G6:

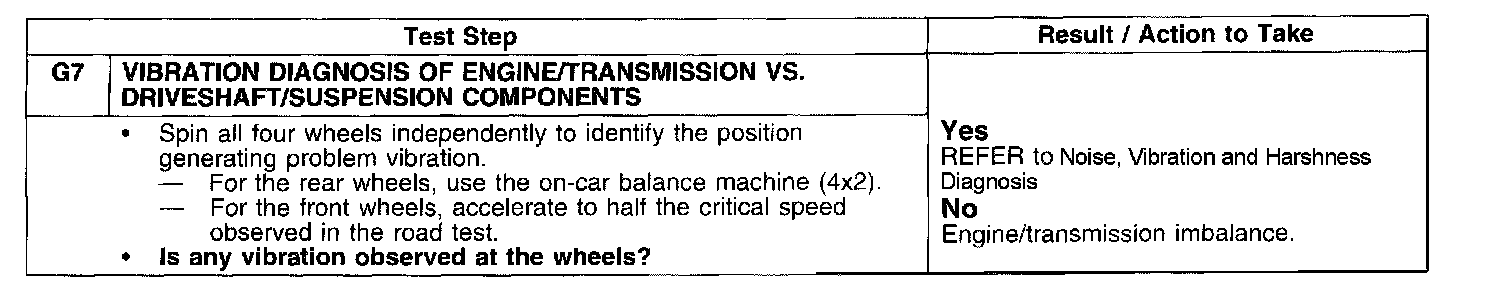

Test G7:
