Shock Absorber

Removal and Installation
1. Remove the rear quarter trim panel.

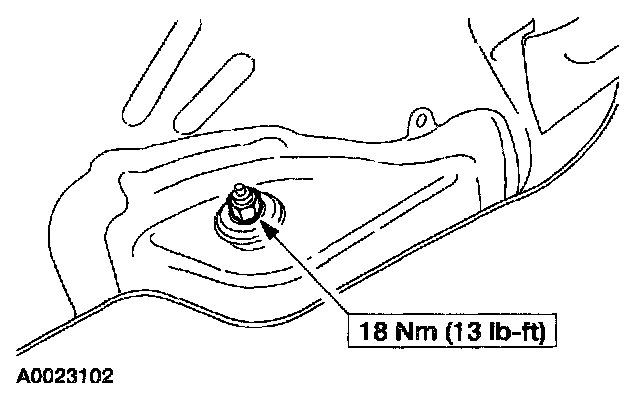

2. Remove the upper shock absorber nut.
3. Raise and support the vehicle enough to relax the suspension system.





4. Remove the shock absorber.
^ Remove the lower shock absorber nut.
^ Remove the shock absorber.
5. To install, reverse the removal procedure.
