Stabilizer Link: Service and Repair

Removal and Installation

1. Remove the wheel and tire.





2. Remove the stabilizer bar link.

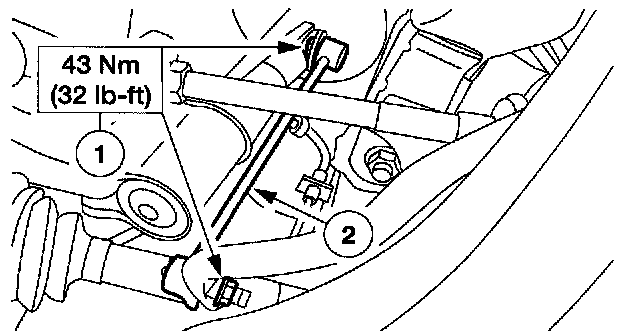

1 Remove the upper and lower stabilizer bar link nuts.
2 Remove the stabilizer bar link.
3. To install, reverse the removal procedure.
