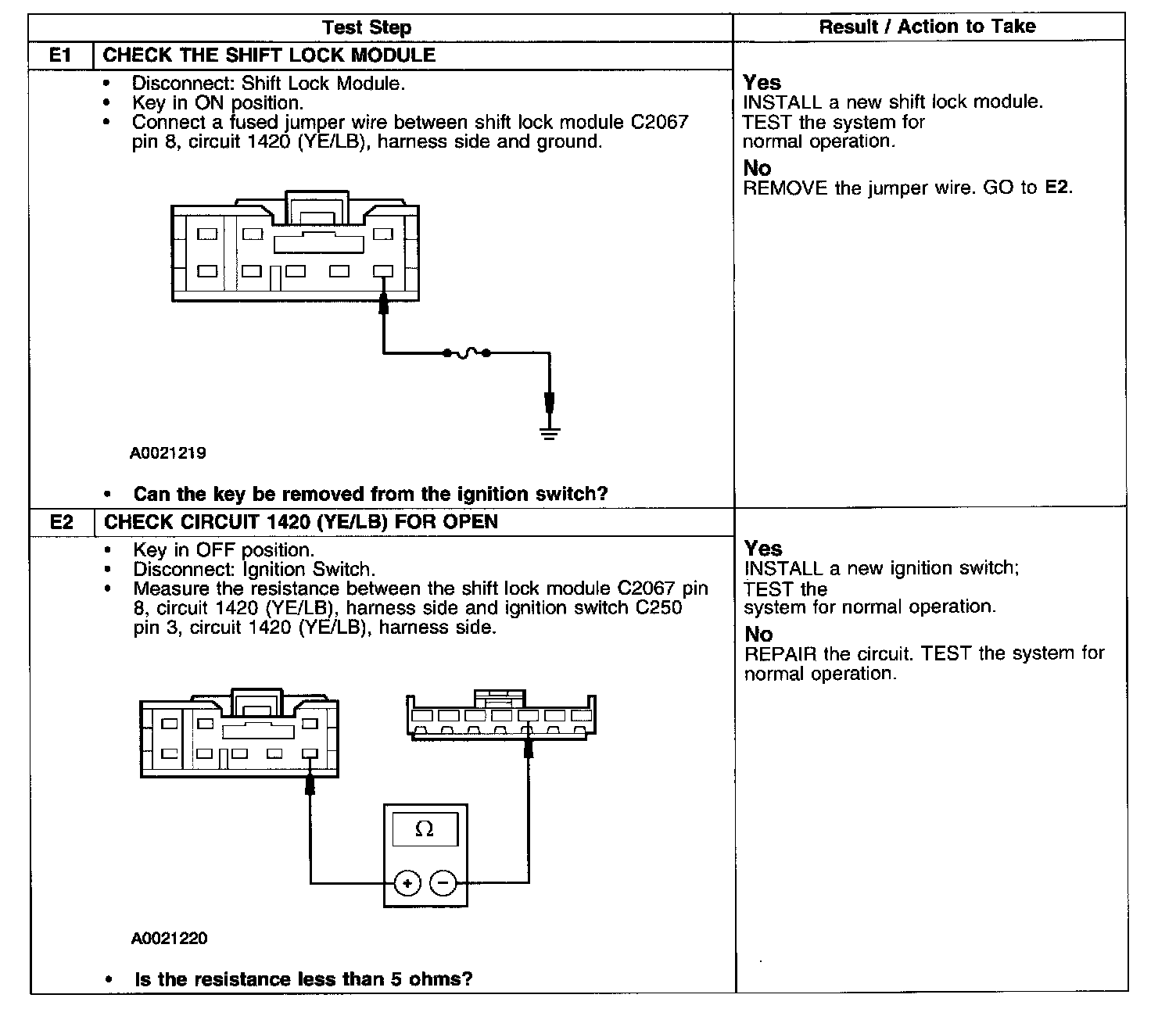

PINPOINT TEST E: THE IGNITION SWITCH IS INOPERATIVE - KEY CANNOT BE REMOVED FROM IGNITION SWITCH (AUTOMATIC TRANSMISSION ONLY)
Test E1-E2:
