Steering Column Coupling

Steering Column Coupling

Removal and Installation

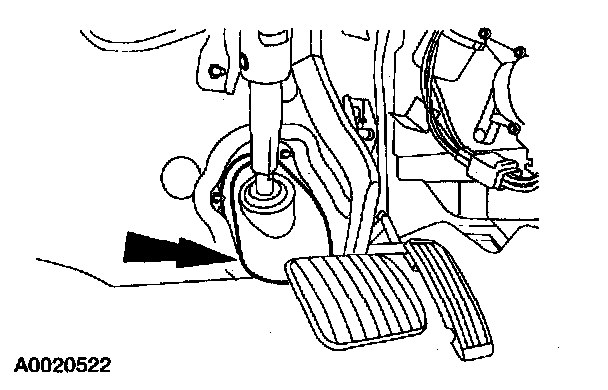

1. Position the boot aside.

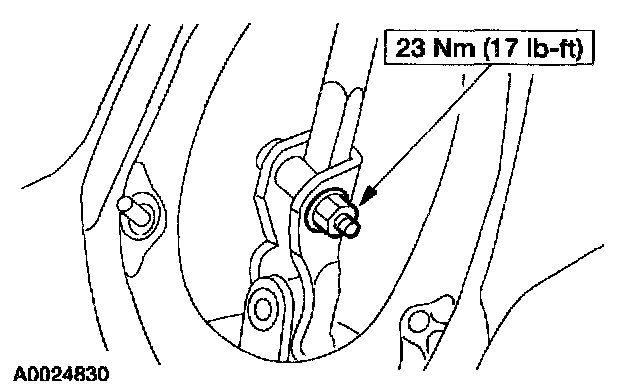

2. Loosen the pinch bolt/nut and disconnect the steering column shaft from the flexible coupling

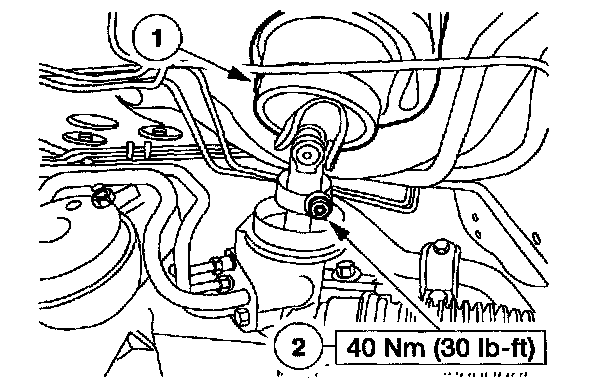

3. Remove the steering gear coupling.
1 Position aside the rubber boot.
2 Remove the pinch bolt.
4. To install, reverse the removal procedure.
