Power Steering Pump Pulley

Power Steering Pump Pulley

Removal and Installation

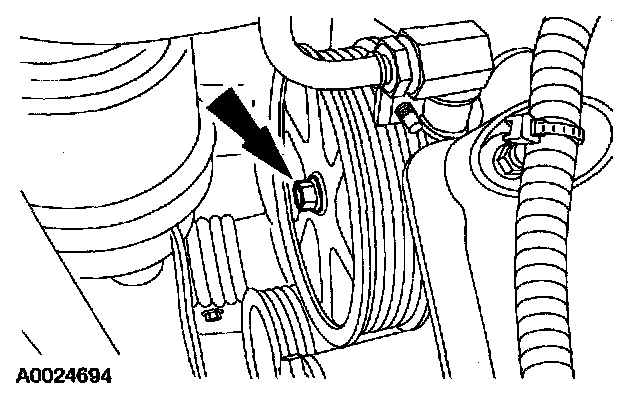

1. Loosen the power steering pump pulley bolt.
2. Remove the drive belt.





3. Remove the bolt and the power steering pump pulley.

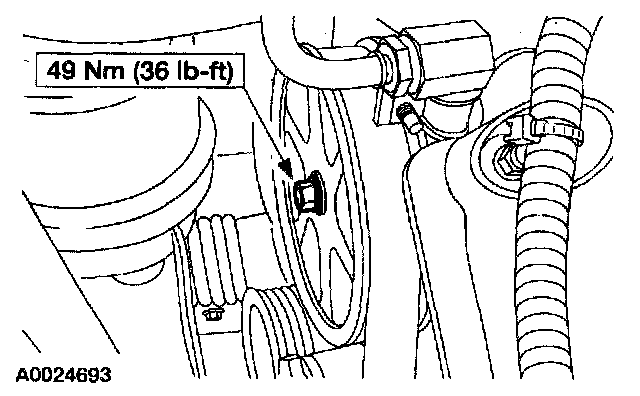

4. To install, reverse the removal procedure.
