Power Steering Pump to Steering Gear Pressure Line

Power Steering Pump to Steering Gear Pressure Line-3.0L (4V)

Removal

1. Raise and support the vehicle.





2. NOTE: Drain the excess power steering fluid into a suitable drain pan.

NOTE: Do not drop the O-ring seals.

Disconnect the power steering pressure and return lines.

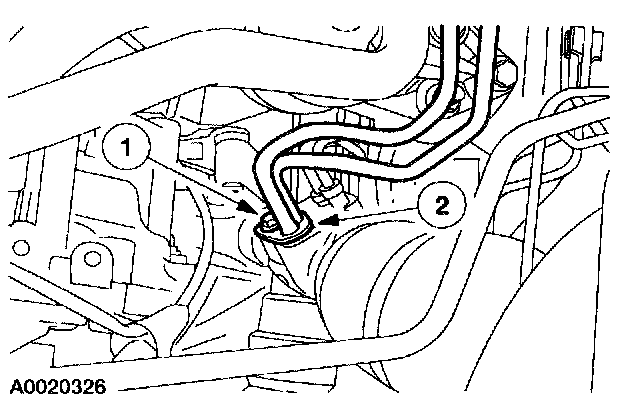

1 Remove the bolt.
2 Disconnect the power steering pressure and return lines.
3. Lower the vehicle.

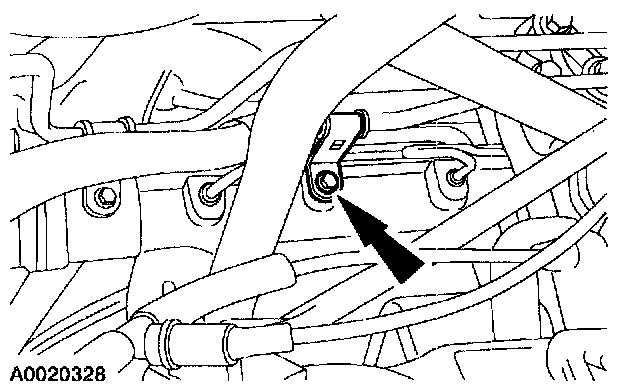

4. Remove the power steering pressure line bracket bolt to the steering gear.





5. Remove the power steering pressure hose.

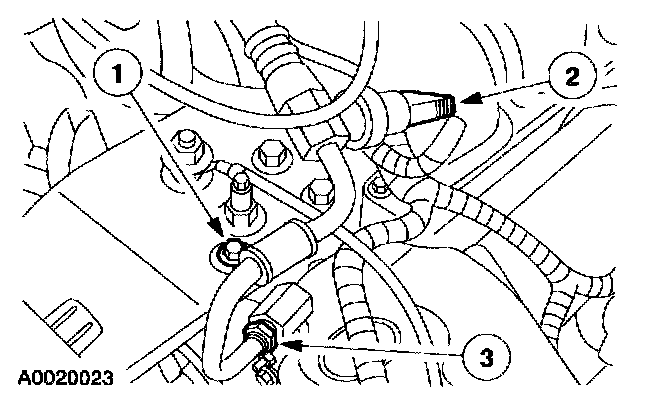

1 Remove the power steering pressure line bracket bolt.
2 Disconnect the electrical connector.
3 Loosen the fitting and remove the power steering pressure line.

Installation

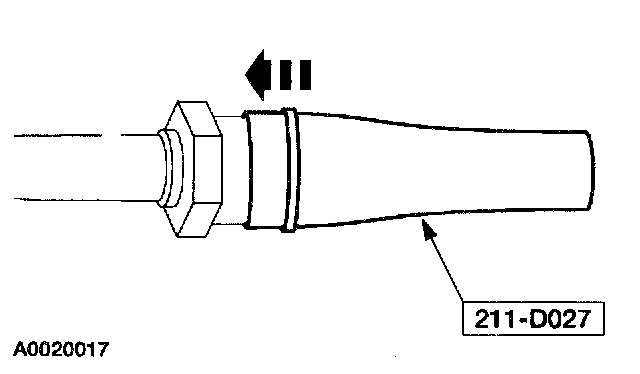

1. Using the special tool, install a new seal on the power steering pressure line fitting.
^ Remove and discard the original seal.
^ Stretch the seal over the special tool and slide it onto the tube nut.





2. Install the power steering pressure hose.

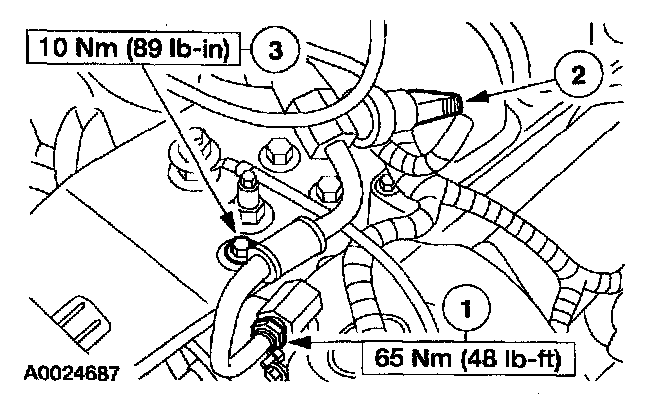

1 Tighten the power steering pressure hose fitting to the pump.
2 Connect the electrical connector.
3 Install the power steering pressure line bracket bolt.

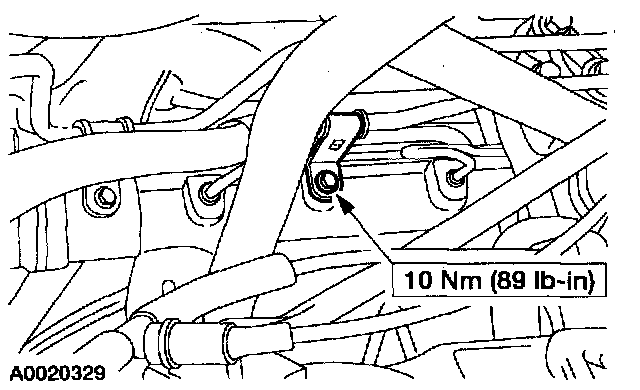

3. Install the power steering pressure line bracket bolt to the steering gear.
4. Raise the vehicle.





5. NOTE: Make sure the O-ring seals are on the power steering pressure and return lines.

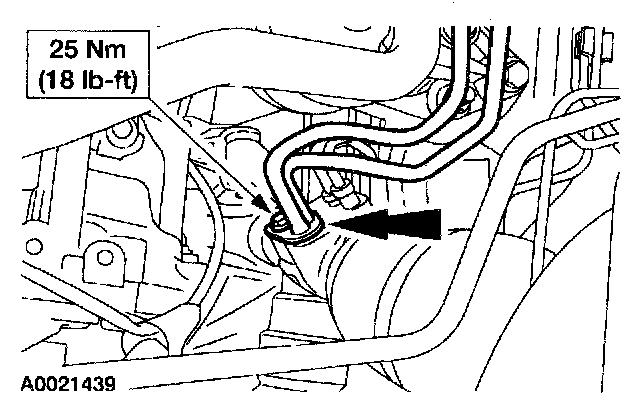

Connect the power steering pressure and return lines to the steering gear. Install the bolt.
6. Lower the vehicle.
7. Fill, bleed and leak check the power steering system.
