Power Steering Fluid Reservoir: Service and Repair

Removal and Installation





1. NOTE: Drain the power steering fluid into a suitable drain pain.

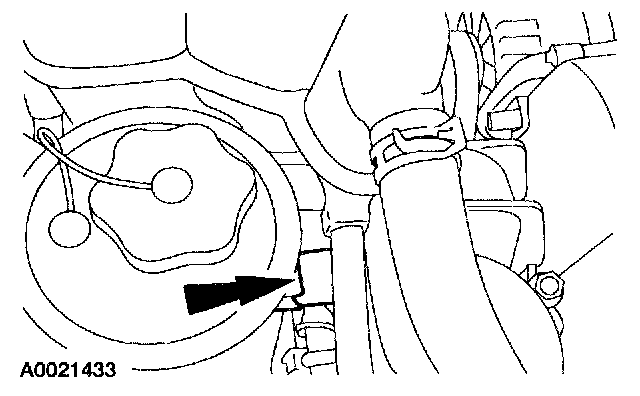

Disconnect the power steering fluid return hose.





2. Disconnect the power steering low pressure hose.

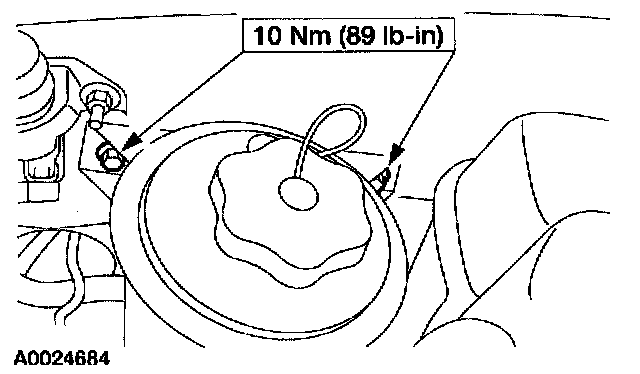

3. Remove the bolts and the power steering pump reservoir.
4. To install, reverse the removal procedure.
^ Fill power steering system.
